i.MX 8M Mini or i.MX 8M Nano SODIMM Development Platform Hardware User
2.8

Additional Features

2.8.1 MIPI CSI Camera Connector

i.MX 8M Mini or i.MX 8M Nano SODIMM development platform supports MIPI CSI Camera interface through i.MX 8M Mini
or i.MX 8M Nano SOC's MIPI CSI interface. These signals from SODIMM Edge connector is directly connected to 40pin flip
connector (J23) of the Carrier board which comprises of MIPI CSI signals, control signals and GPIOs for MIPI Camera and MIPI
Display interface. These signals are connected to the 40pin flip connector (J3) of the SODIMM MIPI daughter board using FFC
cable. By default, Omnivison's OV5640 MIPI Camera is tested in i.MX 8M Mini or i.MX 8M Nano SODIMM development
platform.
Important Note: The OV5640 MIPI Camera is supported in SODIMM MIPI daughter board. For more information on
daughter board please contact iWave.
iWave Systems Technologies Pvt. Ltd.
Guide

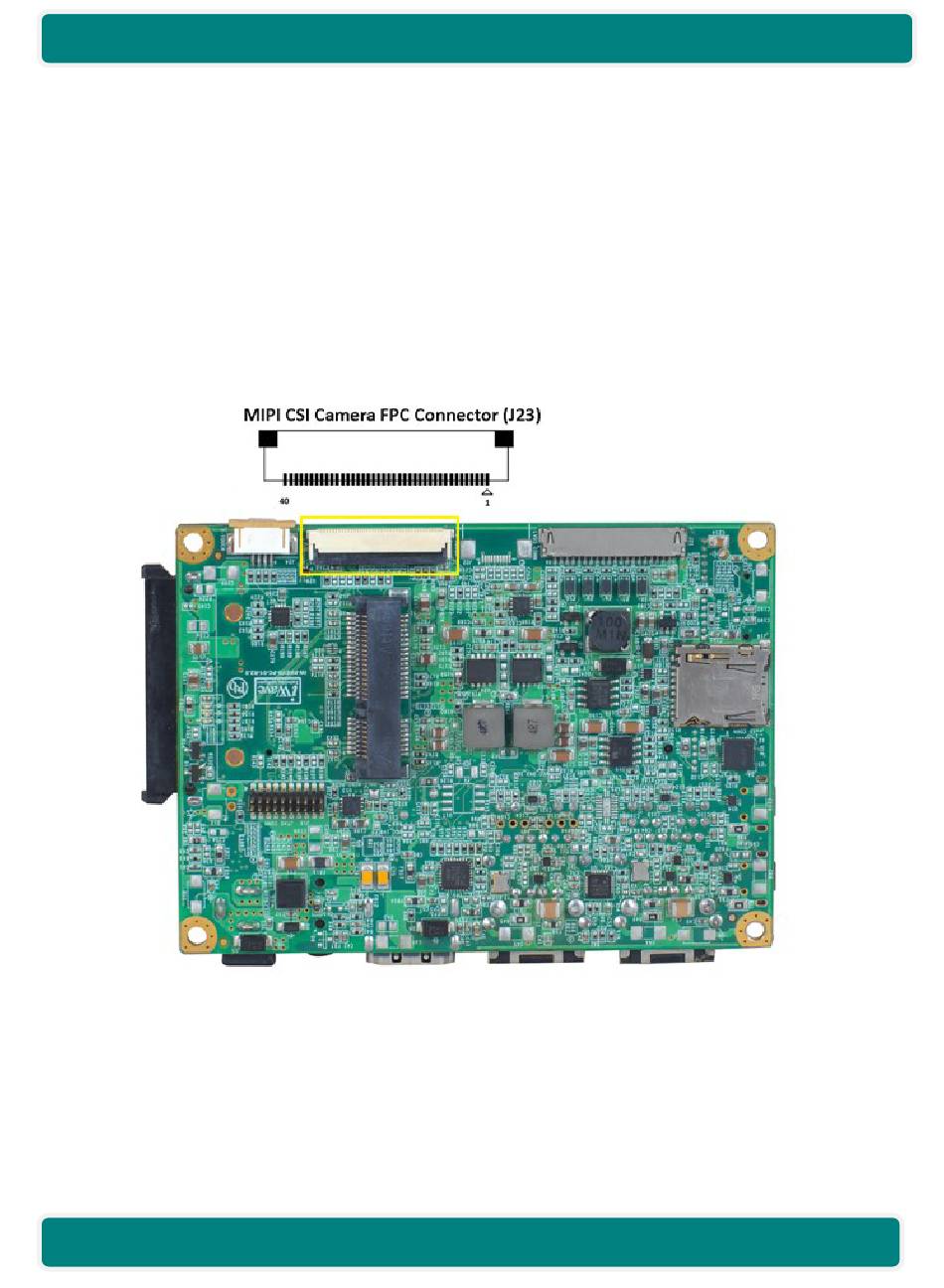

Figure 12: MIPI CSI Camera FPC Connector

REL0.2
Page 37 of 62
