4.3.2 RZ/G1E HDMI Daughter Board Mechanical Dimensions

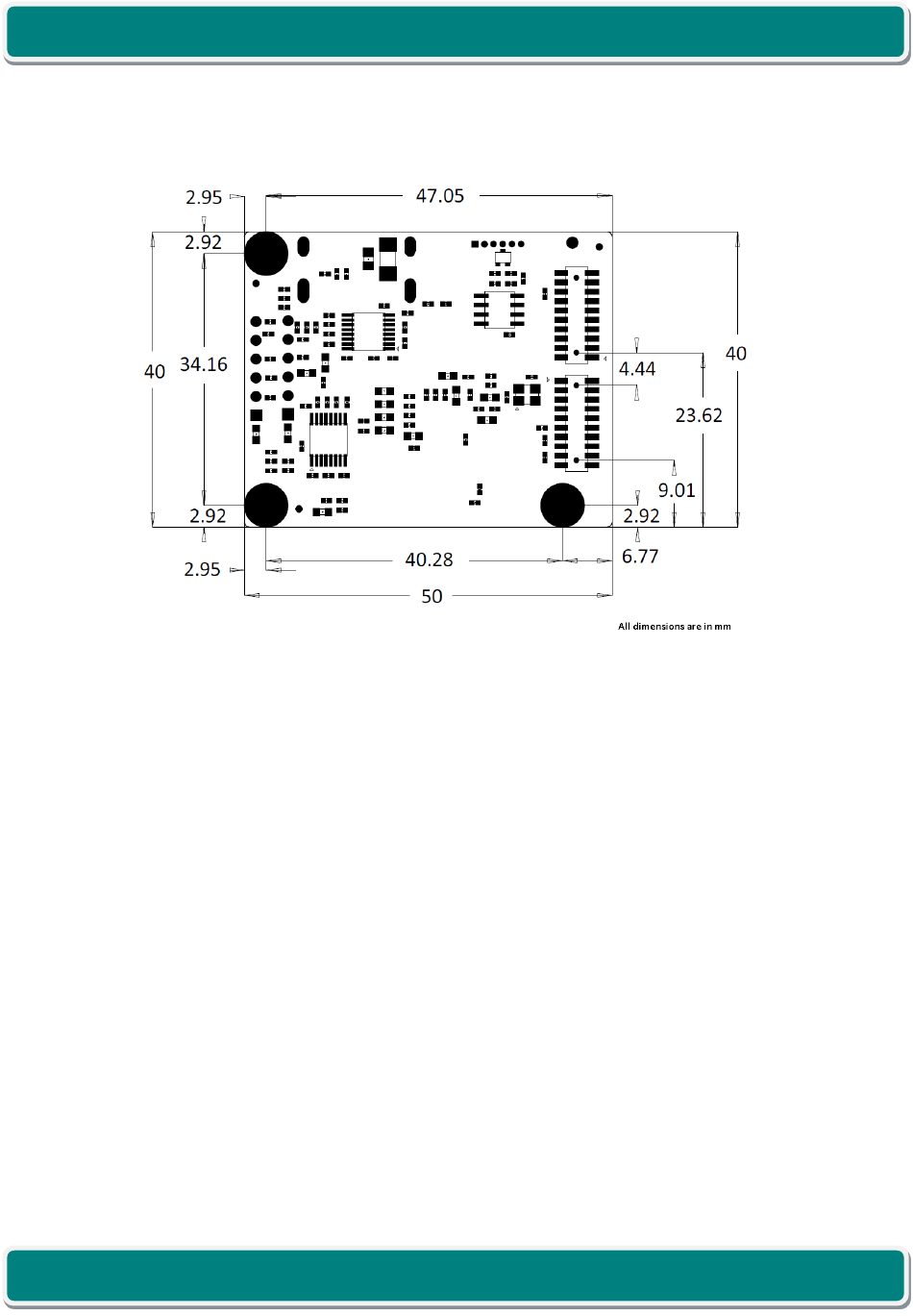

The RZ/G1E HDMI Daughter Board PCB form factor is 40mm x 50mm as shown below.
Figure 30 Mechanical dimension of RZ/G1E HDMI Daughter Board - Bottom View
REL1.1
iWave Systems Technologies Pvt. Ltd.
Page 63 of 71
