RZ/G1E SODIMM Development Platform Hardware User Guide
4.3

Mechanical Characteristics

4.3.1 RZ/G1E SODIMM Carrier Board Mechanical Dimensions

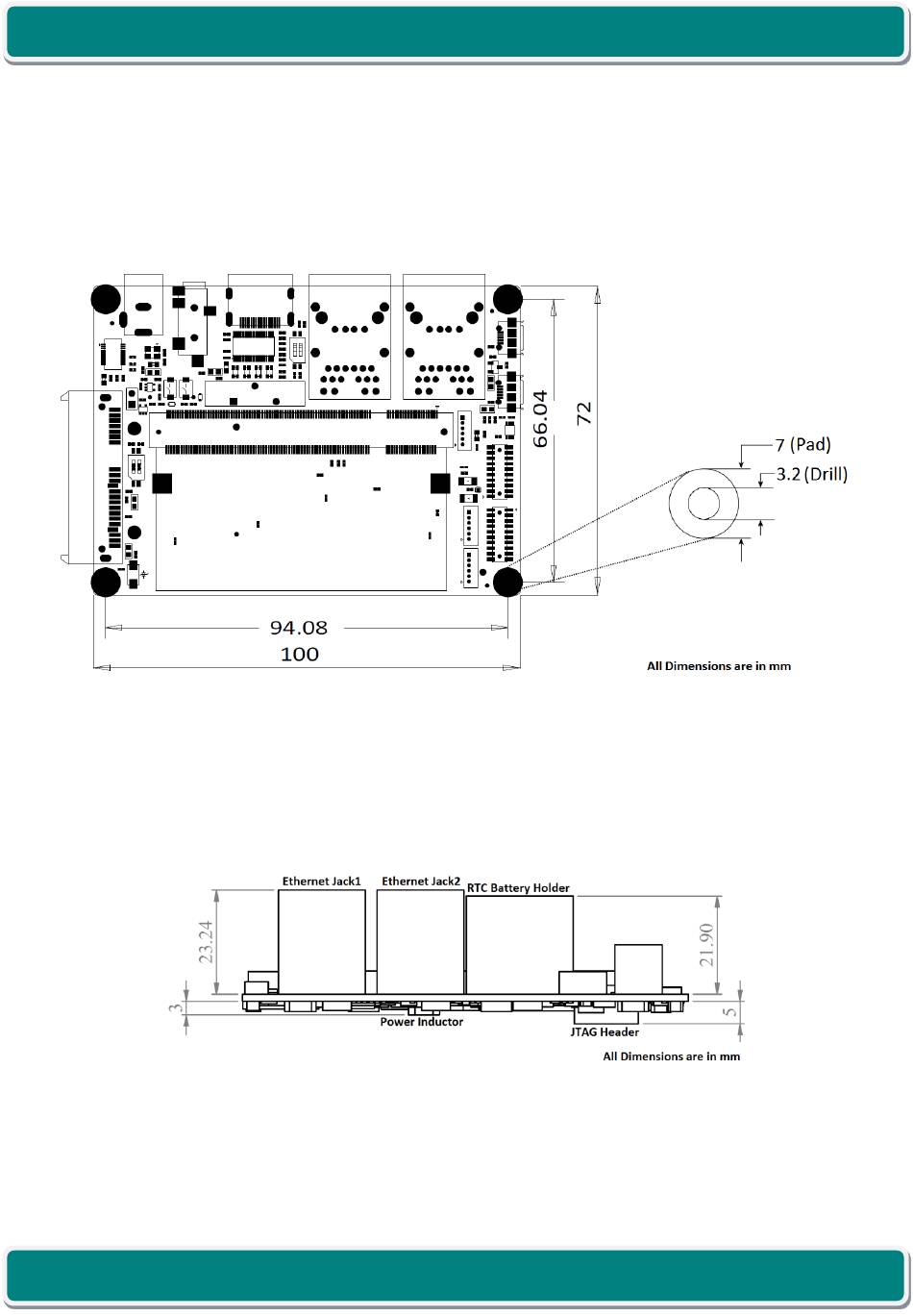

RZ/G1E SODIMM Carrier Board PCB size is 100mm x 72mm. SODIMM Carrier Board mechanical dimension is shown
below.
RZ/G1E
Figure 28: Mechanical dimension of SODIMM Carrier Board
RZ/G1E SODIMM carrier board PCB thickness is 1.6mm±0.1mm, top side maximum height component is Ethernet
Jack 1 & 2 (23.24mm) followed by RTC Battery Holder (21.9mm) and bottom side maximum height component is
JTAG Header (5mm). Please refer the below figure for height details of the RZ/G1E SODIMM Carrier Board.
RZ/G1E
Figure 29: Mechanical dimension of SODIMM Carrier Board - Side View
