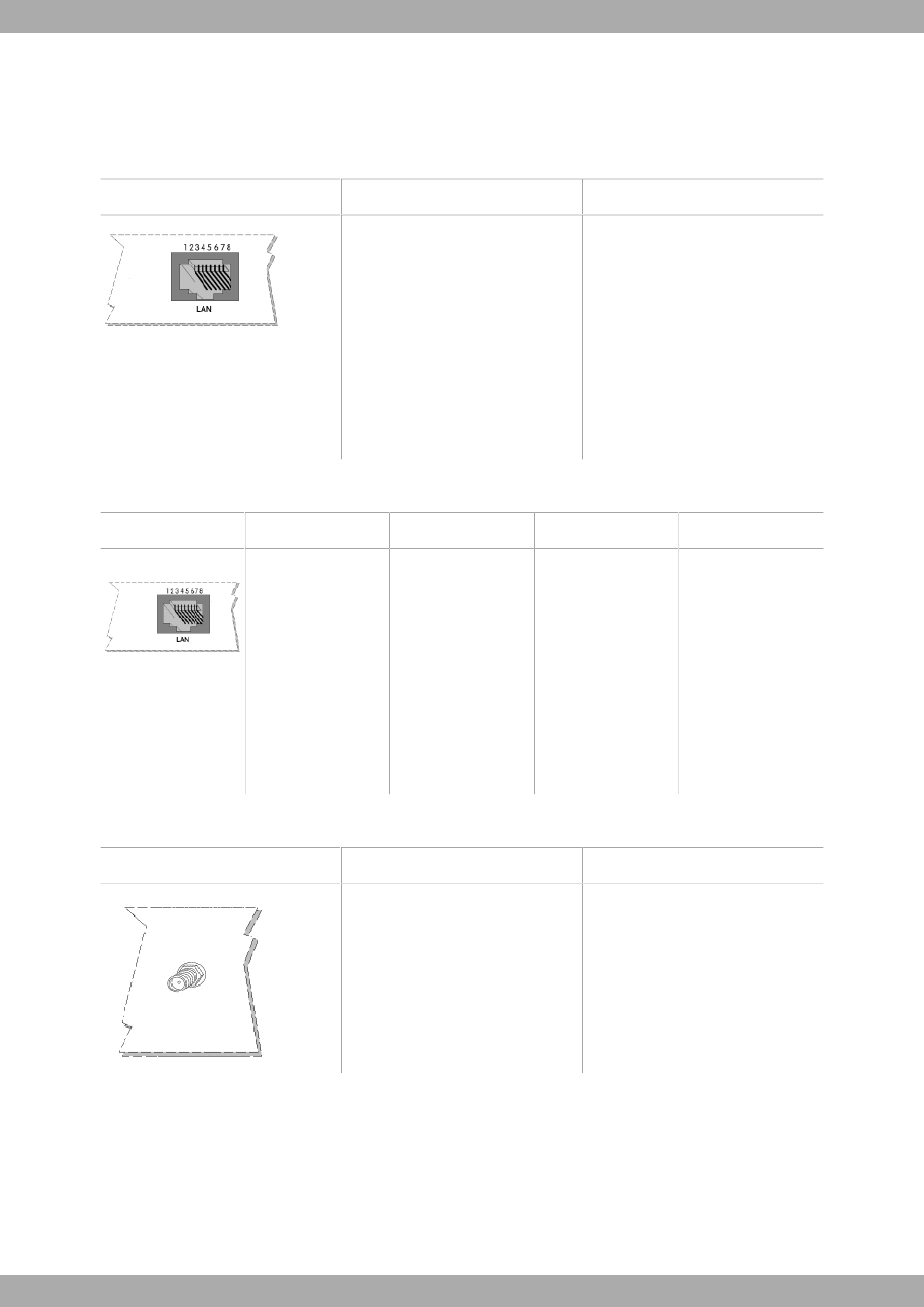

A.3 Connectors
A.3.1 LAN connector
RJ45 LAN
A.3.2 WAN connector
RJ45 WAN
A.3.3 WWAN connectors (female)
28
RJ45 PIN
1
2
3
4
5
6
7
8
RJ45 PIN FE Signals
1
BI-DA+
2
BI-DA-
3
BI-DB+
4
--
5
--
6
BI-DB-
7
--
8
--
PIN
Internal
External
LAN
Tx+(input)
Tx-(input)
Rx+(output)
--
--
Rx-(output)
--
--
GE Signals POE Signals
BI-DA+ POE+(A)
BI-DA- POE+(A)
BI-DB+ POE-(A)
BI-DC+ POE+(B)
BI-DC- POE+(B)
BI-DB- POE-(A)
BI-DD+ POE-(B)
BI-DD- POE-(B)
ANT
RF in/out
GND
