A.2 Software upgrading
The ATLAS 152 routers can be updated to new releases. Please contact your distributor for new releases.
There are various ways to update a Teldat router. Please see the software upgrading manual for further information.
The software required to update the Teldat routers is provided in a format known as distribution. This consists of a
single file containing all the necessary files to update your device, as well as detailed information on the content.

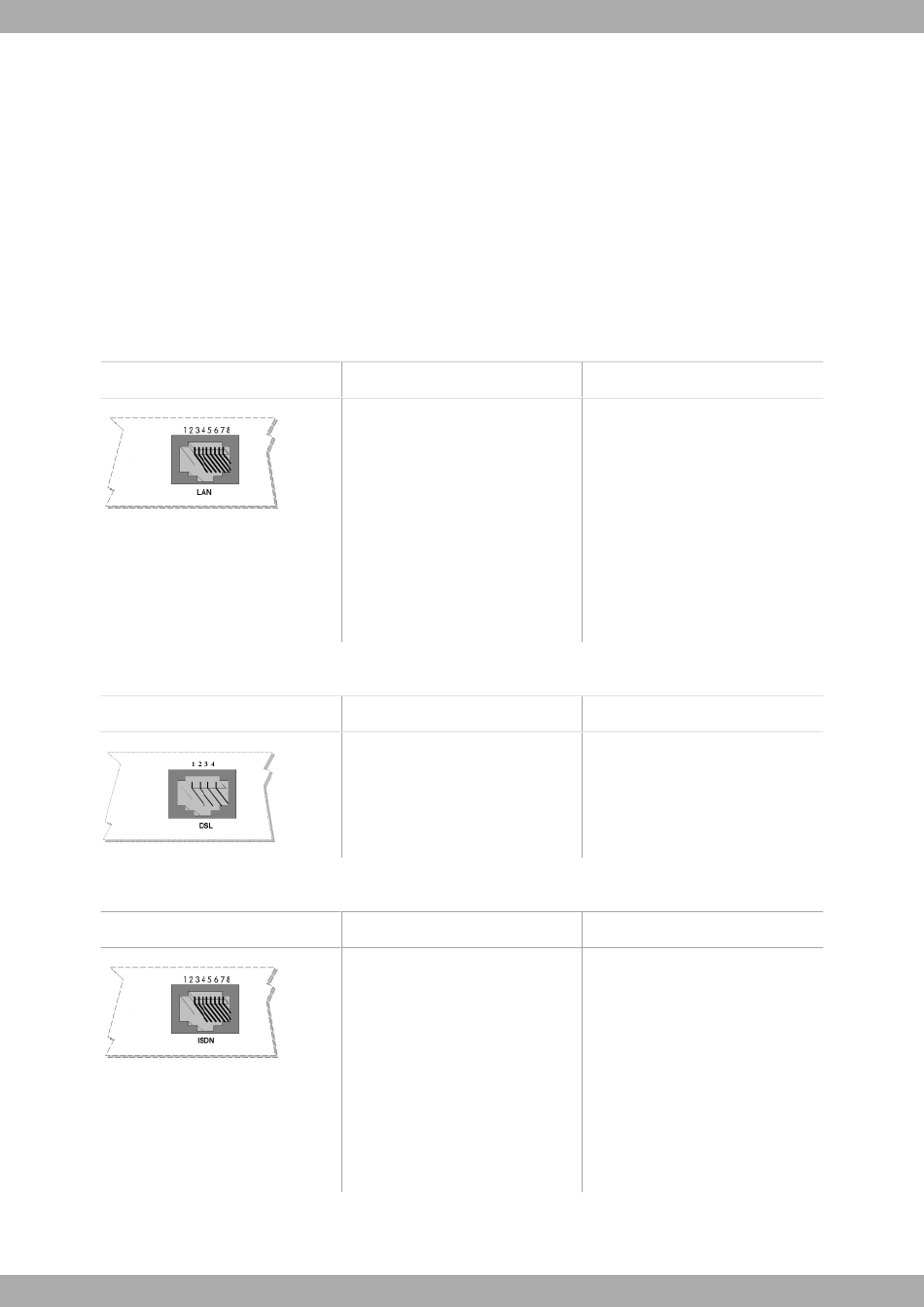

A.3 Connectors
A.3.1 LAN Connector
RJ45 LAN
A.3.2 DSL Connector
RJ11 DSL
A.3.3 ISDN Connector
RJ45 ISDN
14
RJ45 PIN
1
2
3
4
5
6
7
8
RJ 1 PIN
1
2
3
4
RJ45 PIN
1
2
3
4
5
6
7
8
LAN
Tx+(input)
Tx-(input)
Rx+(output)
--
--
Rx-(output)
--
--
DSL
Joined to 2
Line
Line
Joined to 3
ISDN
--
--
Tx+(output)
Rx+(input)
Rx-(input)
Tx-(output)
--
--
