- Eight data bits.
- One stop bit.
- No bit parity.
- No type of flow control.
Connection to the configuration port can be carried out with the RJ45 cable connectors provided with the device, to-
gether with a Female RJ45-Female DB9 adapter.
Note
The Female RJ45-Female DB9 adapter isn't provided with the device, it is supplied separately.

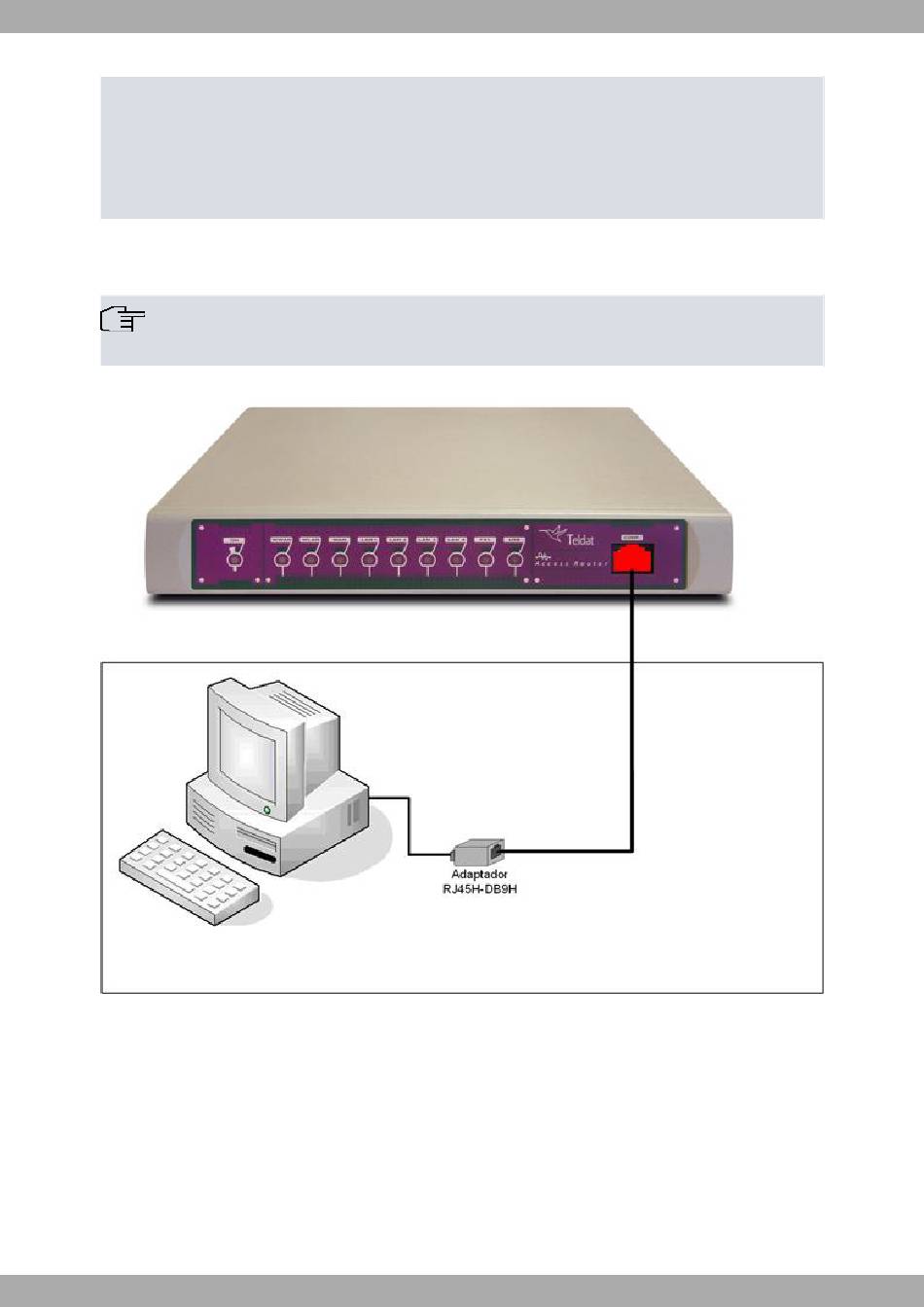

Connection for configuration
Fig. 18:
1.2.5.2 Configuring using an IP terminal (connectors LAN1..4)
The Teldat H1+/H1+GE router includes a default configuration that activates if the device has not been previous con-
figured or if the "Procedure to establish the default configuration" has been executed (this is explained further on in
this manual).
The router's default configuration establishes the following IP address and the access mask:
Teldat H1+/H1+GE
• IP address: 192.168.1.1
• IP mask: 255.255.255.0
