3 Components and Power Supply
the distance between the router and the base station), physical obstacles and other interferences due to radio fre-
quencies (RF).
For optimum coverage, follow these steps:
• Whenever possible, place the antenna where there are no physical obstacles. Obstacles between the antenna and
the base station degrade the wireless signal. Place the antenna above ground level facing the nearest base sta-
tion.
• The density of materials also affects antennas. Place them away from any type of wall, metal screens, mirrors, etc.
• Do not place the antenna near columns, as they may throw shadows and reduce the coverage area.
• Keep the antenna away from metal ducts such as canalization, air-conditioning etc.
• Please bear in mind that other wireless devices (such as telephones, microwaves, etc.) can temporarily interfere
with the quality of the wireless signal.
• We do not recommend installing antennas in racks that contain communication devices, computers, etc. Use an
extension cable and place the antenna outside.
The following recommendations are applicable to all wireless devices:
• Do not touch or move the antenna while the router is transmitting or receiving.
• When the antenna is transmitting, do not touch any equipment that contains devices that radiate very close to, or
touching, any exposed part of the body (particularly face and eyes).
• Do not install the router in areas where the atmosphere is potentially explosive.
• Wireless devices can cause interferences in other devices. Do not use the router in areas where medical equip-
ment is installed.
• To ensure compliance with Directive R&TTE 1999/5/EC, the router must be at least 15 cm away from a person's
body when operating.
3.6.5 Wireless LAN Antenna Connection (Wi-Fi connectors)
The Teldat Connect 104V router has two RF antenna connectors for an external antenna to improve the quality of
the signal received and transmitted by the Wireless LAN module.
This module is internal and can be activated by purchasing the appropriate software license. To assemble and disas-
semble (remove) the antennas provided with the router, just screw/unscrew them into/from the connectors labeled
Wi-Fi (located on the router's side panels).

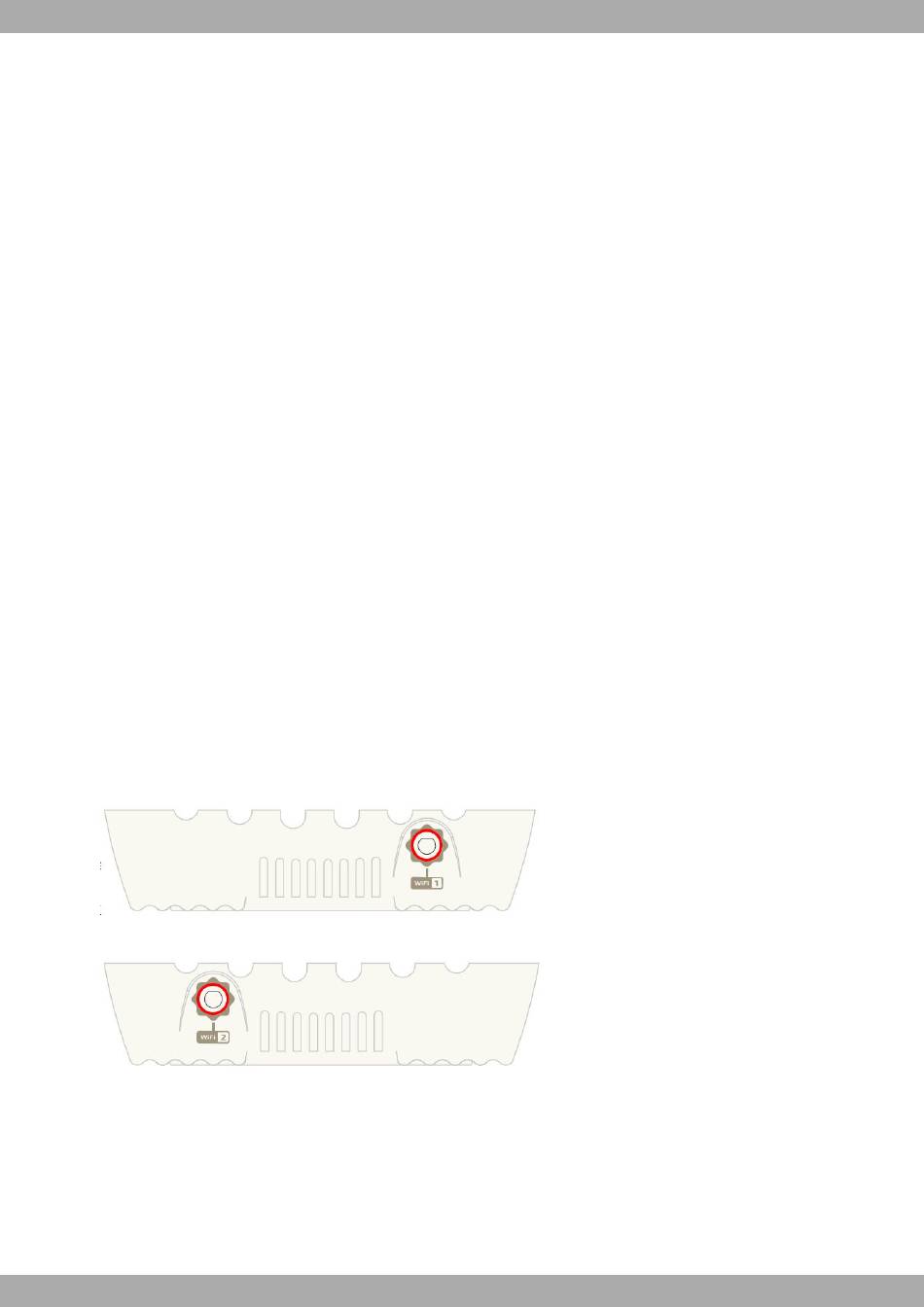

Fig. 17: Wi-Fi Antenna 1
Fig. 18: Wi-Fi Antenna 2
3.6.6 Connecting a 3G USB (USB connector)
The Teldat Connect 104V has a USB HOST 2.0 Type A connector interface, compatible with 3G USB modems. The
interface can be activated by purchasing the appropriate software license.
14
Teldat S.A.
Teldat Router Connect-104V
