1 Installing the Router

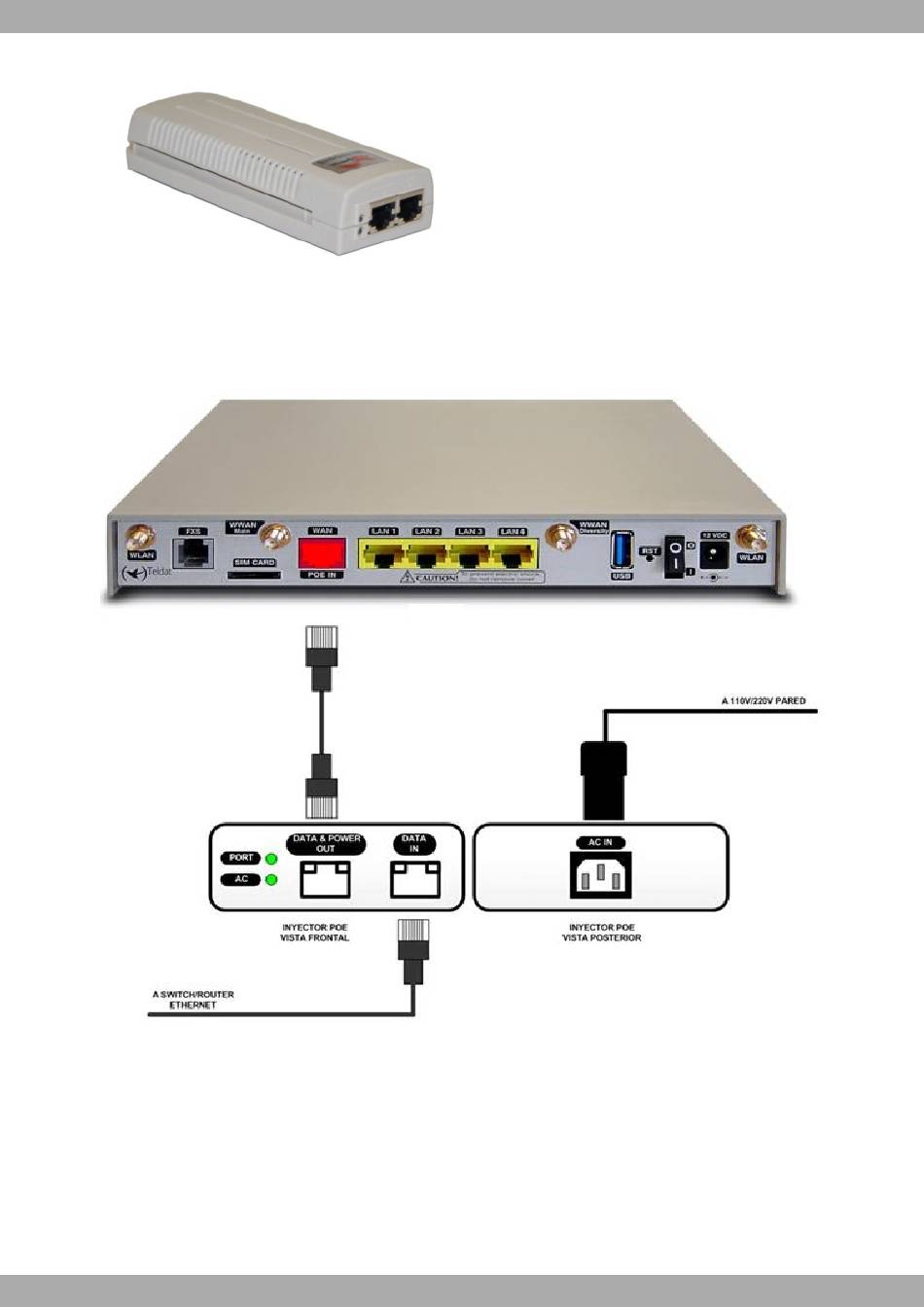

POE Injector: Aspect
Fig. 10:
In order to connect the Ethernet cable, with POE power, to the device, please follow the aforementioned steps under
section If the Ethernet cable is POE
The following schema details how to connect the POE injector to the device.
Connecting to the power supply using the POE injector
Fig. 11:

1.2.4 Data Connections

The Teldat H1+/H1+GE router has the following connectors available:
1.2.4.1 4 port Ethernet Switch (connectors LAN1..4)
The Teldat H1+/H1+GE router has a 4 port 410/100BaseT switch incorporated with an automatic MDI/MDIX to con-
nect to the local area network (LAN).
8
on page 6.
Teldat S.A.
Teldat H1+/H1+GE
