• When the antenna is transmitting, do not touch any equipment that contains devices that radiate very close to, or
touching, any exposed part of the body (particularly the face and eyes).
• Do not install the device in areas where the atmosphere is potentially explosive.
• Wireless devices can cause interferences with other devices. Do not use the device in areas where medical equip-
ment is installed.
• In order to ensure that you are complying with the R&TTE 1999/5/EC norm, the device must be at least 15 cm
away from a human body when it is operating.
1.2.4.4 Wireless LAN connection (ANT connectors)
The Teldat H1+/H1+GE router has two RF antenna connectors for an external antenna, in order to improve the qual-
ity of the signal received and transmitted by the Wireless LAN module. This module is internal and can be activated
by purchasing the corresponding software license. To assemble and dismantle the antennas provided with the
device, just screw them into the connectors, labeled ANT, which are located on the rear of the device.

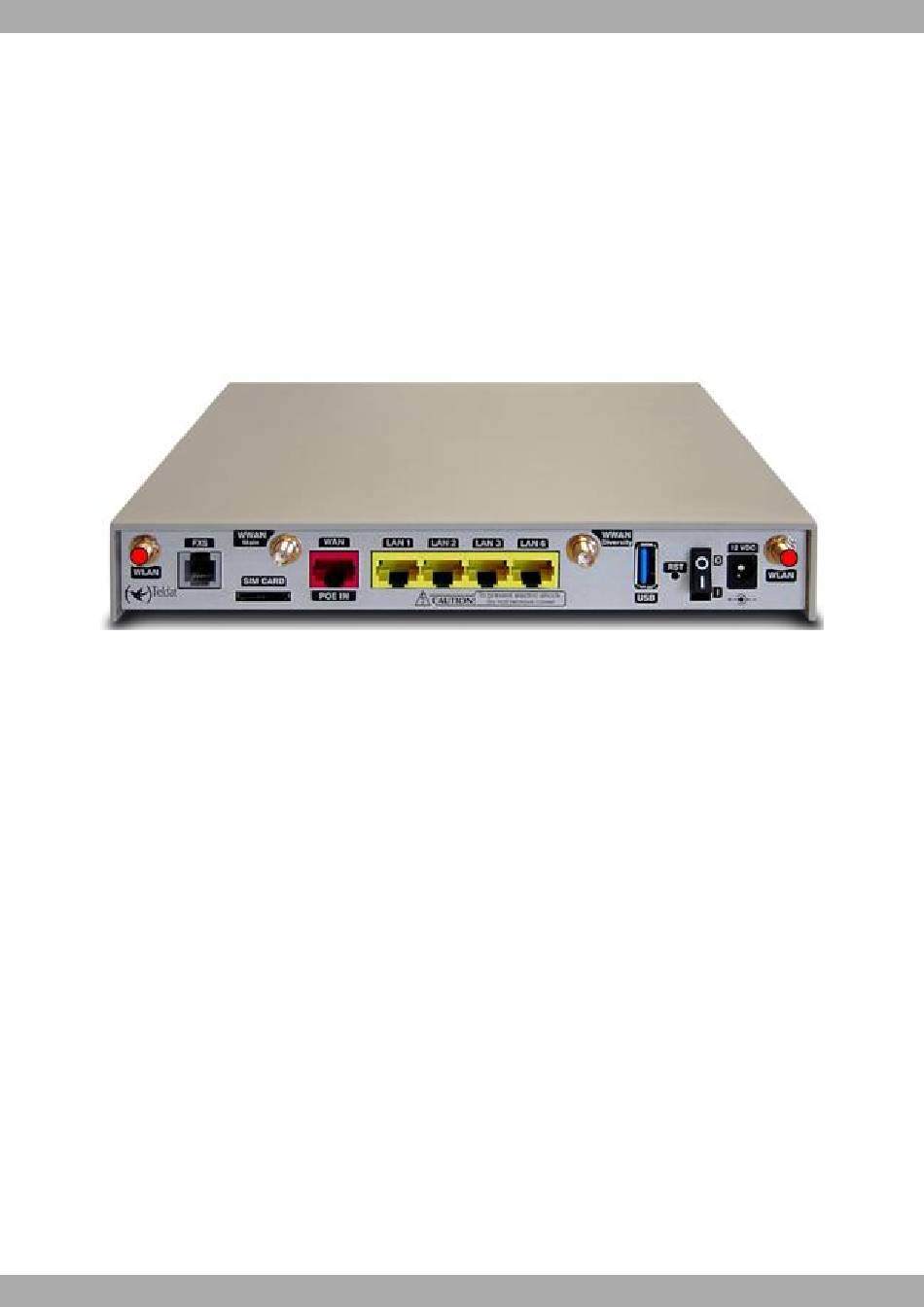

Wireless LAN antenna connectors
Fig. 15:
1.2.4.5 Connecting a 3G USB device (USB connector)
The Teldat H1+/H1+GE router has a USB HOST 2.0 Type A connector interface which allows 3G USB modems to
be connected. The interface can be activated by purchasing the corresponding software license.
