1.4.3 Procedure to force start up in BIOS mode

Follow the steps below if you want to force device start up in BIOS mode in order to access the BIOS menu (where
you can relicense and delete the configuration files and the rest of the commands).
• Turn off the device through the ON/OFF switch.
• Using a sharp object, press the RST pushbutton and hold it down.
• Turn on the device with the ON/OFF switch.

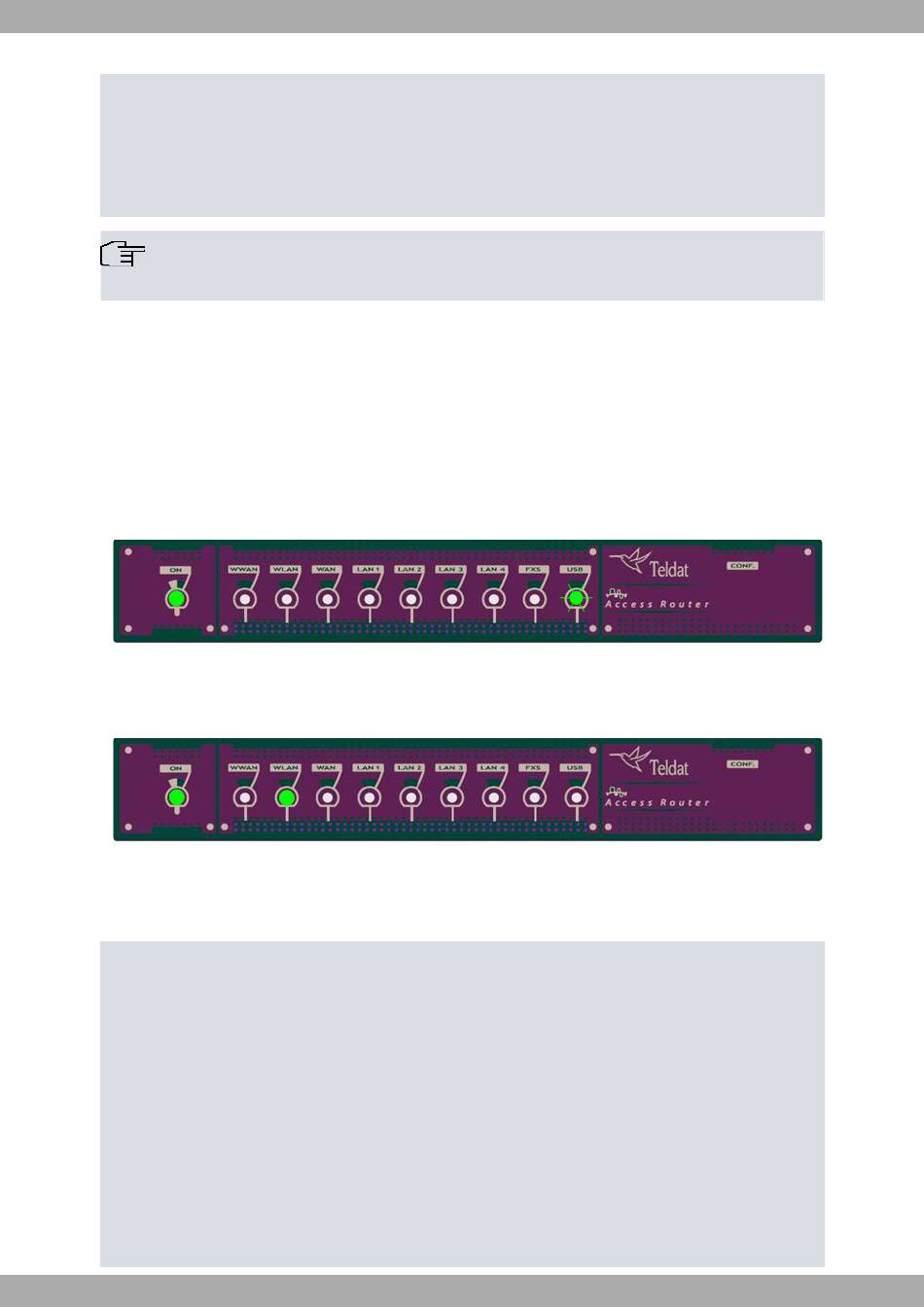

• Wait until the USB LED begins to flash (see
The USB LED flashing
Fig. 32:
• After about 15 seconds, the USB LED goes out and the WLAN LED lights up (see
release the reset button.
USB LED goes out and the WLAN lights up
Fig. 33:
Wait for a few seconds until the device completes start up. If you have a local console connected to the CONF. port,
you can see that the device has paused start up in the BIOS menu (>> prompt):
CFE version 1.0.37-102.9-02 for BCM96368 (32bit,SP,BE)
Build Date: Fri Feb 12 17:20:44 CET 2010 (gjimenez@orion)
Copyright (C) 2000-2008 Broadcom Corporation.
Parallel flash device: name AM29LV320MT, id 0x2201, size 16384KB
CPU type 0x2A031: 400MHz, Bus: 160MHz, Ref: 64MHz
CPU running TP0
Total memory: 67108864 bytes (64MB)
Boot Address 0xb8000000
*** Break into BIOS menu ***
Board IP address
Host IP address
Teldat H1+/H1+GE
Fig. 32 on page 23). Keep the RST pushbutton held down.
: 192.168.1.1:ffffff00
: 192.168.1.100
1 Installing the Router
Fig. 33 on page 23); at this point
