1 Installing the Router

1.3 Meaning of the LEDs

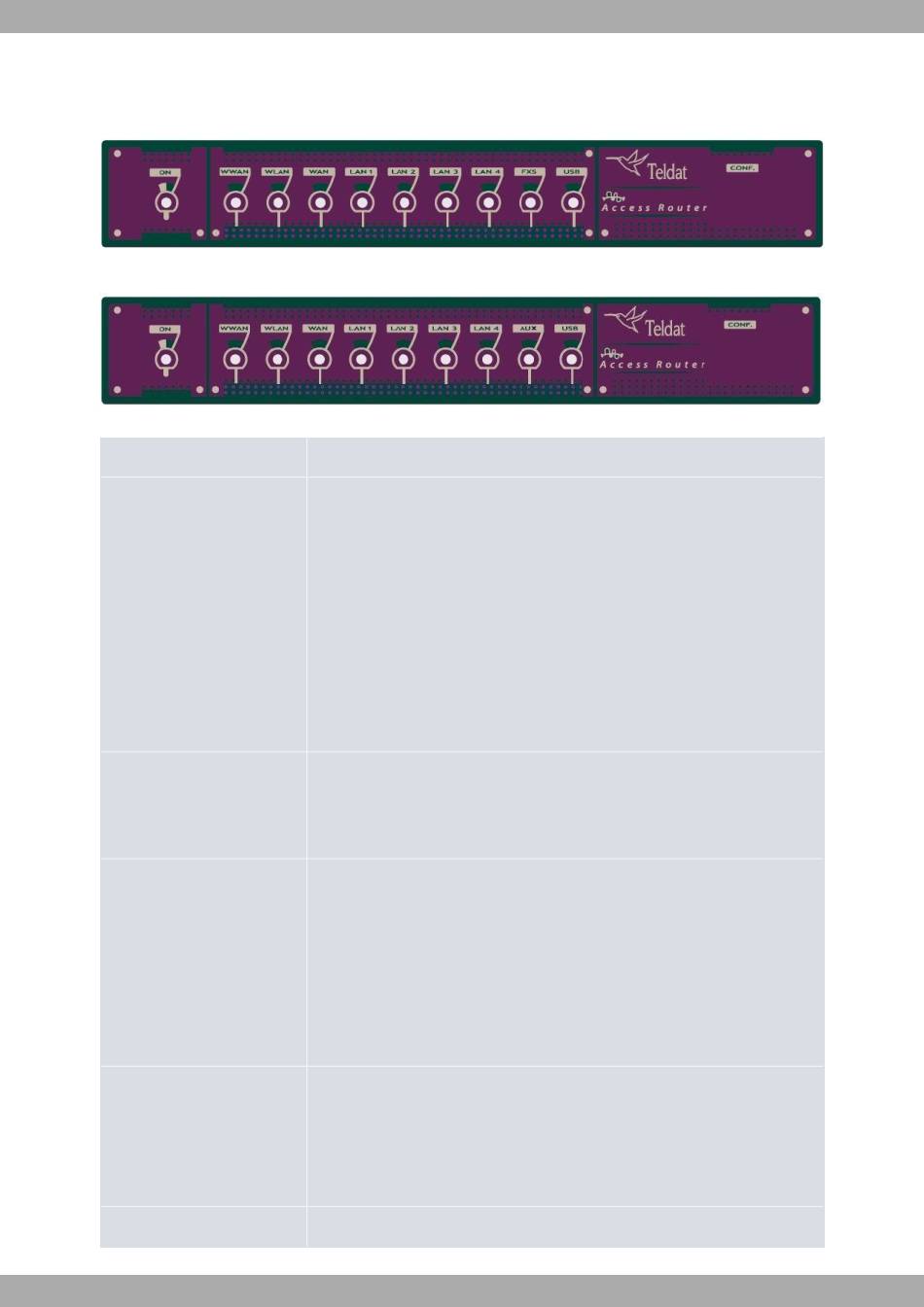

Front panel with FXS connector
Fig. 25:
Front panel without FXS connector (there is an AUX instead)
Fig. 26:
ON
WWAN
WLAN
WAN
LAN1..4
FXS/AUX
18
Power-on indicator. It lights up when connected to the power.
WWAN Interface (cellular1/x interface):
OFF: Interface not detected.
GREEN: Slow flashing (250ms ON / 2250ms OFF): No SIM or without service.
Flashing (250ms ON / 250ms OFF): Speed >3.6Mbps.
Flashing (400ms ON / 400ms OFF): Speed <3.6Mbps >1.8Mbps.
Flashing (600ms ON / 600ms OFF): Speed <1.8Mbps >960Kbps.
Flashing (800ms ON / 800ms OFF): Speed <960Kbps >384Kbps.
Flashing (1200ms ON / 1200ms OFF): Speed <384Kbps.
WWAN Interface (wlan0/0 interface):
OFF: There is no data in the interface.
GREEN: Intermittent. Traffic through the interface.
WWAN Interface
(H1+GE or H1+ with WAN license: ethernet0/1)
(H1+ without a WAN license: ethernet0/0 switch WAN port)
OFF: The link hasn't been established in this port.
GREEN: The link has been established in this port.
Intermittent. Traffic through the port.
Switch LAN Ethernet (ethernet0/0 interface):
OFF: The link hasn't been established in this port.
GREEN: The link has been established in this port.
Intermittent. Traffic through the port.
FXS/AUX Reserved for future use.
