5.2 LEDs

The LEDs show the radio status, radio activity and LED states of your device. The LED states are made up of LED
combinations, further explained in detail in this chapter.

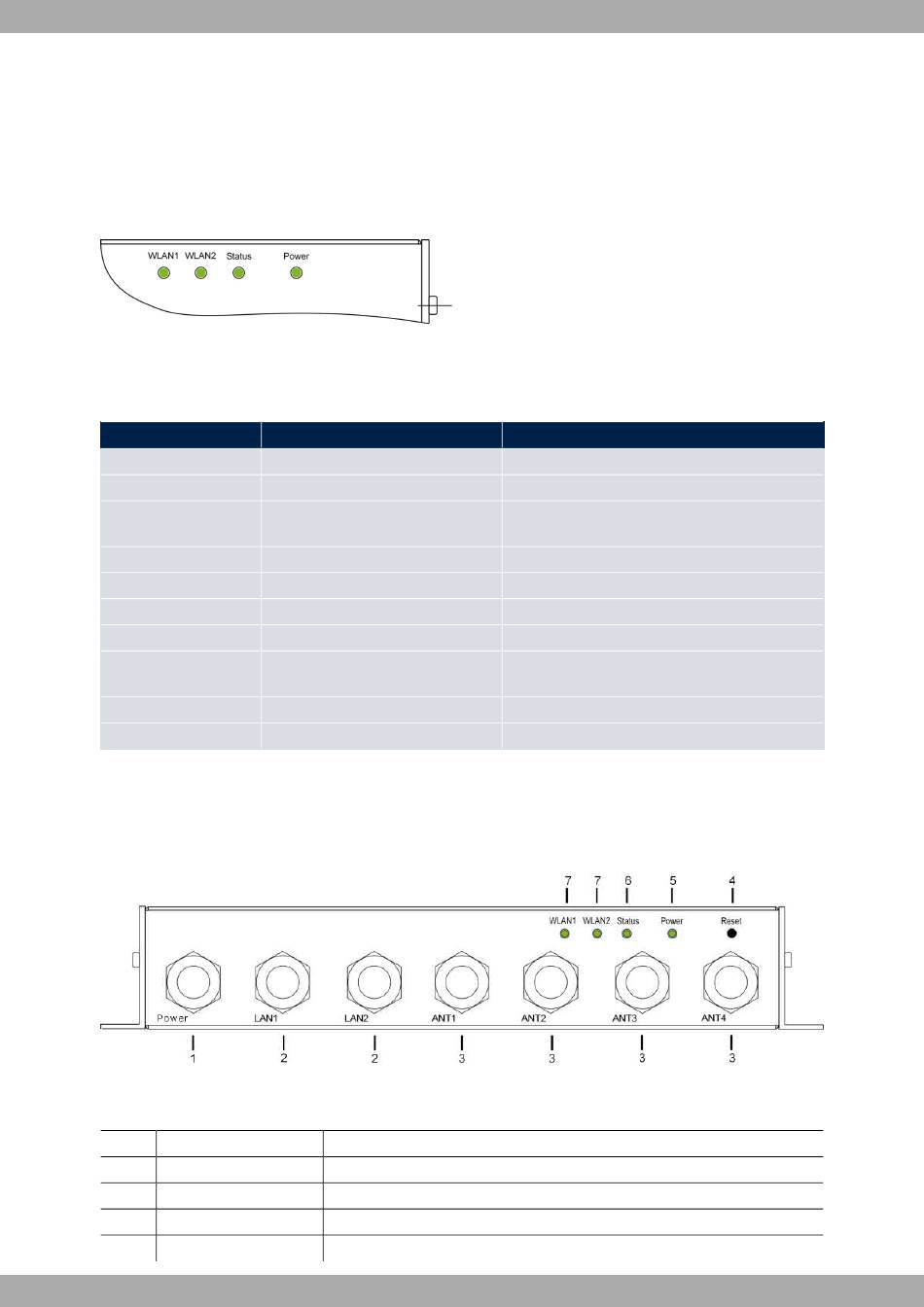

The LEDs on the APR222ac device are arranged as follows:
APR222ac
Fig. 6:
In operation mode, the LEDs display the following status information:
LED status display APR222ac
LED
Power (green)
Status (green)
WLAN 1/2 (green)

5.3 Connectors

All the connections are located on the underside of the device.
Fig. 7: Connectors
Underside of APR222ac
1 Power
2 LAN1 / LAN2
3 ANT1 - ANT4
4 Reset
5 Power
APR222ac
LEDs
Status
on
off
off
on (static)
on (blinking)
on (blinking slowly)
on (static)
on (flickering)
on (blinking fast)
on (blinking fast)
Socket for 110V DC or 24V DC power supply, depending on the model.
10/100/1000BaseT (X) M12 (8-pin) Port.
Connections to screw in the external antennas.
Reset button performs restart (base plate of the device).
LED (green).
Information
The power supply is connected.
No power supply.
The power supply is not connected. If other LEDs
are on, also Error.
Error.
Ready.
Free.
At least one client is registered.
At least one client is registered and there is data
traffic.
BLD (Broken Link Detection) active.
5 GHz scan active.
