1 Installing the Router
(2) Lift up the upper part of the tray.
(3) Fully insert the SIM card between the guides.
(4) Return the insertion tray to its original position.
(5) Gently press on the insertion slot while pushing the catch to the exterior (CLOSE). The card should be com-
pletely inserted in the tray.

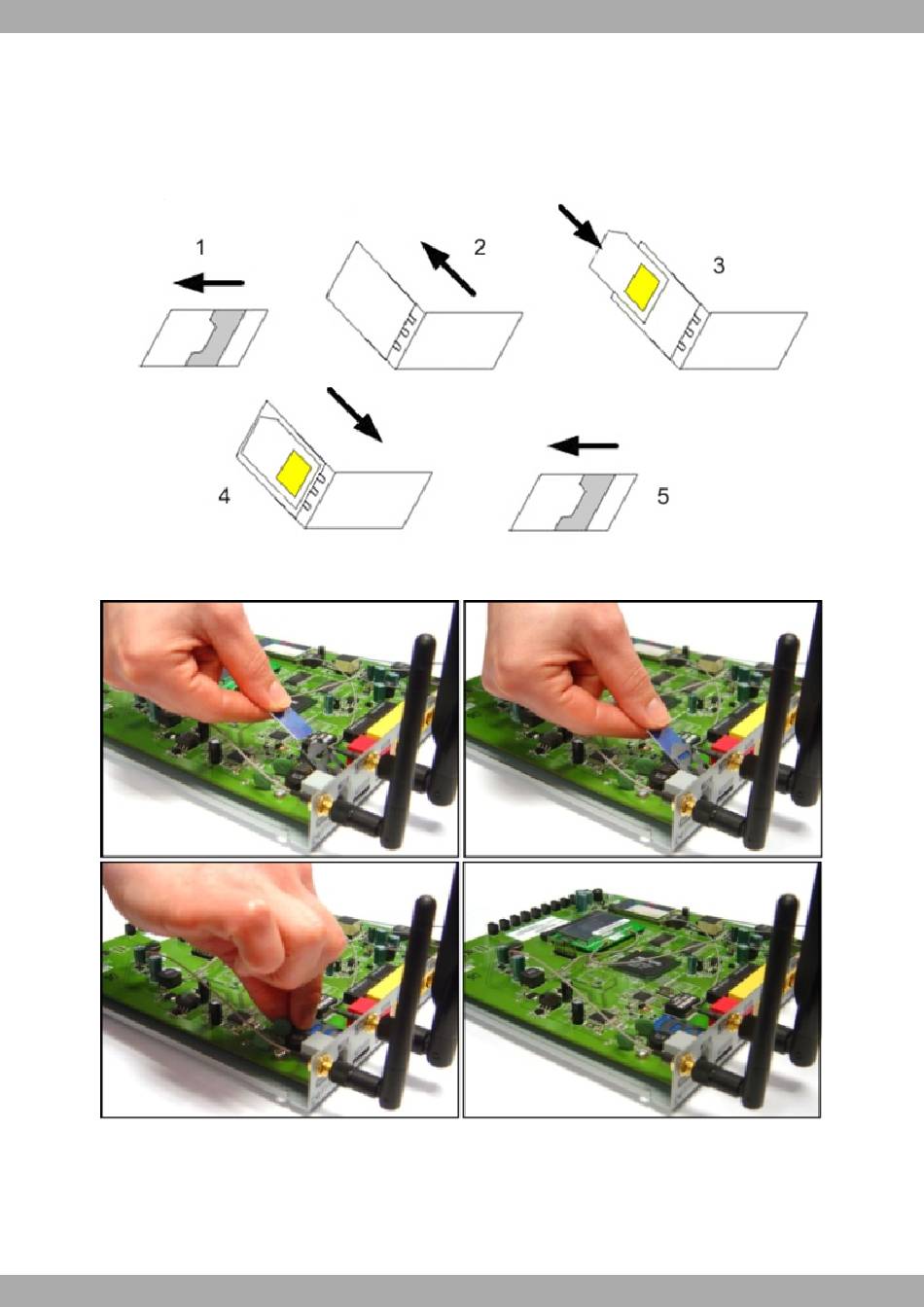

Steps to take to insert the SIM
Fig. 21:
Steps to take to insert the SIM
Fig. 22:
1.2.6.2 Installing the external SIM
The external SIM tray slot is located on the rear of the device. The following figure shows you where to locate it:
