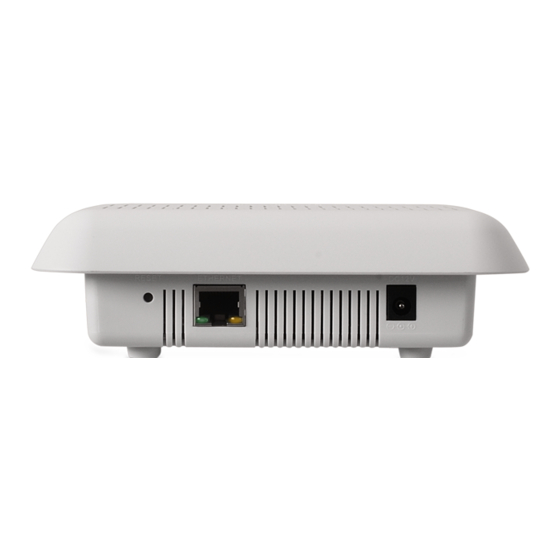

Teldat 4Ge Installation Manual

Hide thumbs Also See for 4Ge:
Table of Contents

Advertisement

Quick Links

Download this manual
Manual
Teldat S.A.
Teldat 4Ge Router
Installation Manual
Copyright© Teldat Dm571-I Version 7.3 02/2020 Teldat S.A.
Teldat 4Ge Router
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4Ge and is the answer not in the manual?

Questions and answers

Related Manuals for Teldat 4Ge

Summary of Contents for Teldat 4Ge

  • Page 1 Manual Teldat S.A. Teldat 4Ge Router Installation Manual Copyright© Teldat Dm571-I Version 7.3 02/2020 Teldat S.A. Teldat 4Ge Router...
  • Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.

  • Page 3: Table Of Contents

    Chapter 2 Teldat 4Ge Router ....... . . 4 Characteristics ........
  • Page 4 Appendix B Radio Information ....... . . 28 Teldat 4Ge Router...
  • Page 5 Teldat S.A. WWAN Specifications ....... . . Teldat 4Ge Router...

  • Page 6: I Related Documents

    Related Documents Teldat S.A. I Related Documents Teldat Dm748-I Software Updating Teldat 4Ge Router...

  • Page 7: About This Guide

    1 About This Guide Teldat S.A. Chapter 1 About This Guide This is the installation guide for the Teldat 4Ge router. It contains information on how to correctly install the device in a working environment. 1.1 Supported Devices The information included in this installation guide only applies to the Teldat 4Ge router.
  • Page 8 1 About This Guide Teldat S.A. Fax: +34 918 076 566 Email: support@teldat.com Teldat 4Ge Router...

  • Page 9: Teldat 4Ge Router

    11. 2.1.2 Hardware Monitoring The Teldat 4Ge router hardware is monitored through the LED panel, which provides visual information on what is happening in the device. The LEDs indicate the state of the hardware components, whether there is connectivity or not, data flows, etc.

  • Page 10: Components And Power Supply

    3 Components and Power Supply Teldat S.A. Chapter 3 Components and Power Supply The following chapter provides detailed information on the Teldat 4Ge router chassis and its components. This in- formation includes: • Components. • Information on assembly. • Power supply.

  • Page 11: Side Panels

    Two WWAN antennas are located on the side panels, one on either side. Right hand side panel Left hand side panel Fig. 3: and Fig. 4: 3.1.4 Underside Panel The following elements can be found on the underside panel: Teldat 4Ge Router...

  • Page 12: Top Panel (Leds)

    Perforations to install a DIN rail mount. (Optional.) 3.1.5 Top Panel (LEDs) The LED panel provides information on the state of the components (whether they are active or not) and on network activity. LED Panel Fig. 5: Teldat 4Ge Router...

  • Page 13: Assembly

    3 Components and Power Supply Teldat S.A. The Teldat 4Ge LEDs are shown in Figure 6. The table below contains a description of each: LEDs table Status Description Tricolor Green -> connected. Blinking: con- nection data activity. Amber -> blinking: auto-test.
  • Page 14 The screws must go into a wall stud (wood) or a wall anchor of the appropriate type for the wall. Screws into drywall are not strong enough to mount the router. Wall-mounting features Fig. 8: The above figure shows the wall-mounting features on the Teldat 4Ge. Wall screws 8.8 cm (3.46 inches) Chassis mounting holes (on...

  • Page 15: Ceiling Mounting

    - The accessories must match the kind of wall in place and support the weight of the device. 3.2.4 Ceiling mounting To attach the Teldat 4Ge device to the ceiling, use the appropriate support (not included and must be ordered separ- ately).

  • Page 16: Power Source

    DIN rail mount adapter Fig. 10: 3.3 Power Source The Teldat 4Ge is powered though an external AC/DC source or through an Ethernet cable (provided it complies with the POE 802.3af standard). Warning The equipment must be used with the power supply provided by the manufacturer.

  • Page 17: Poe

    Connecting the PoE adapter to the router Fig. 11: The Teldat 4Ge device can be powered through an Ethernet cable, provided the latter complies with the POE 802.3aF standard. The ETHERNET port is enabled for this. To connect the Ethernet cable with PoE power to the router, please carry out the steps outlined in...

  • Page 18: Disconnect

    • Router: If you have a router license, the device will behave as a router. In this case, the default configuration estab- lishes the following access IP address and mask: IP address: 192.168.1.1 IP mask: 255.255.255.0 • 4Ge: If you have a 4Ge license, the device will have a special configuration. Please see manual Teldat Dm592-I - Teldat 4Ge Router...

  • Page 19: Connecting Data

    The Teldat 4Ge has three connectors for WWAN antennas. To assemble and disassemble the antennas, simply screw them into the connectors labeled Cell (found in the router's front panel). Installing these antennas in the Teldat 4Ge is essential to improve the quality of the signal received and transmitted by the cellular model.

  • Page 20: Installing The Sim Card

    3.6 Installing the SIM card A SIM card needs to be inserted in the Teldat 4Ge so the WWAN interface operates correctly. The router is equipped with an external SIM card tray. When inserting the SIM card, make sure you are protected against electrostatic discharges (ESD).
  • Page 21 Procedure: • Place the router as shown in the figure above. • To insert the SIM card, follow the instructions shown on the Teldat 4Ge. • Press it until it is fully inserted. • To extract it, press it again and remove it.

  • Page 22: Compliance

    4 Compliance Teldat S.A. Chapter 4 Compliance 4.1 Manufacturer Information Teldat Brand Manufacturer Teldat S.A. Country Spain Postal Address Isaac Newton, 10 Parque Tecnológico de Madrid, 28760 Tres Cantos, Madrid, Spain International Phone +34 91 807 65 65 Teldat 4Ge Router...

  • Page 23: Safety Warnings

    4 Compliance Teldat S.A. 4.2 Safety Warnings Connect Disconnect Teldat 4Ge Router...
  • Page 24 4 Compliance Teldat S.A. Teldat 4Ge Router...
  • Page 25 4 Compliance Teldat S.A. Teldat 4Ge Router...

  • Page 26: Weee Information

    Input Voltage 100-240 Vac Input AC frequency 50-60 Hz Output voltage 12.0 V Output current 1.0 A Output power 12.0 W Average active efficiency 88.6 % Efficiency at low load (10%) 73.8 % No-load power consumption 0.09 W Teldat 4Ge Router...

  • Page 27: Ec Declaration Of Conformity

    4 Compliance Teldat S.A. 4.6 EC Declaration of Conformity English (EN) Hereby, Teldat S.A. declares that the Teldat 4Ge radio equipment is in compli- ance with: Directive 1999/5/EC (until 12 June 2017) and Directive 2014/53/EU (from 13 June 2017) Directive 2009/125/EC (ErP) Directive 2011/65/EU (RoHS) of the European Parliament.

  • Page 28: Fcc Statement

    This device and its antennas(s) must not be placed or operated in conjunction with any other antenna or transmitter, except when done in accordance with IC multi-transmitter product procedures. Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association avec une autre antenne ou transmetteur. Teldat 4Ge Router...

  • Page 29: Appendix A Technical Information

    A.2 Updating the software The Teldat 4Ge can be updated to new releases. Please contact your distributor for further details on new releases. Firmware updating is carried out through a traditional FTP file transfer. For further information on updating firmware through FTP, please see manual Teldat-Dm748-I Software Updating, section 1.3 FTP Updating.

  • Page 30: Connectors

    A.3.2 WWAN Connector (female) Internal RF in/out External A.3.3 Power Supply Connector Internal POSITIVE External NEGATIVE A.4 Technical Specifications A.4.1 Hardware Architecture PROCESSORS Freescale P1014. MEMORY DDR3 1Gbit (128 MBytes). STORAGE UNIT FLASH Memory 128 Mbits (16 Mbytes). Teldat 4Ge Router...

  • Page 31: Lan Interface

    A.4.5 External Power Supply INPUT VOLTAGE 100-240 V AC. INPUT CURRENT 1.0 A. INPUT FREQUENCY 50-60 Hz. A.4.6 Dimensions and weight TYPE Desktop or wall-mounted. LENGTH x WIDTH x HEIGHT 145 x 160 x 50 mm. WEIGHT 0.3 kg. Teldat 4Ge Router...

  • Page 32: Environmental Specifications

    Technical Information Teldat S.A. A.4.7 Environmental Specifications TEMPERATURE OPERATING NORMALLY: 0 ºC to 45 ºC STORED: -25 ºC to 70 ºC RELATIVE HUMIDITY On: 5 % to 90 % Teldat 4Ge Router...

  • Page 33: Appendix B Radio Information

    Band 7 (2600) Tx: 2500–2570 MHz Class 3, 23 dBm max. Band 20 (800) Tx: 832–862 MHz Class 3, 23 dBm max. This product is supplied with YWX-6221SAX9-508 antennas. To comply with the regulations, do not pick others. Teldat 4Ge Router...
