Please pay close attention to the labeling. This is important in order to avoid confusing the switch with other types of
ports.

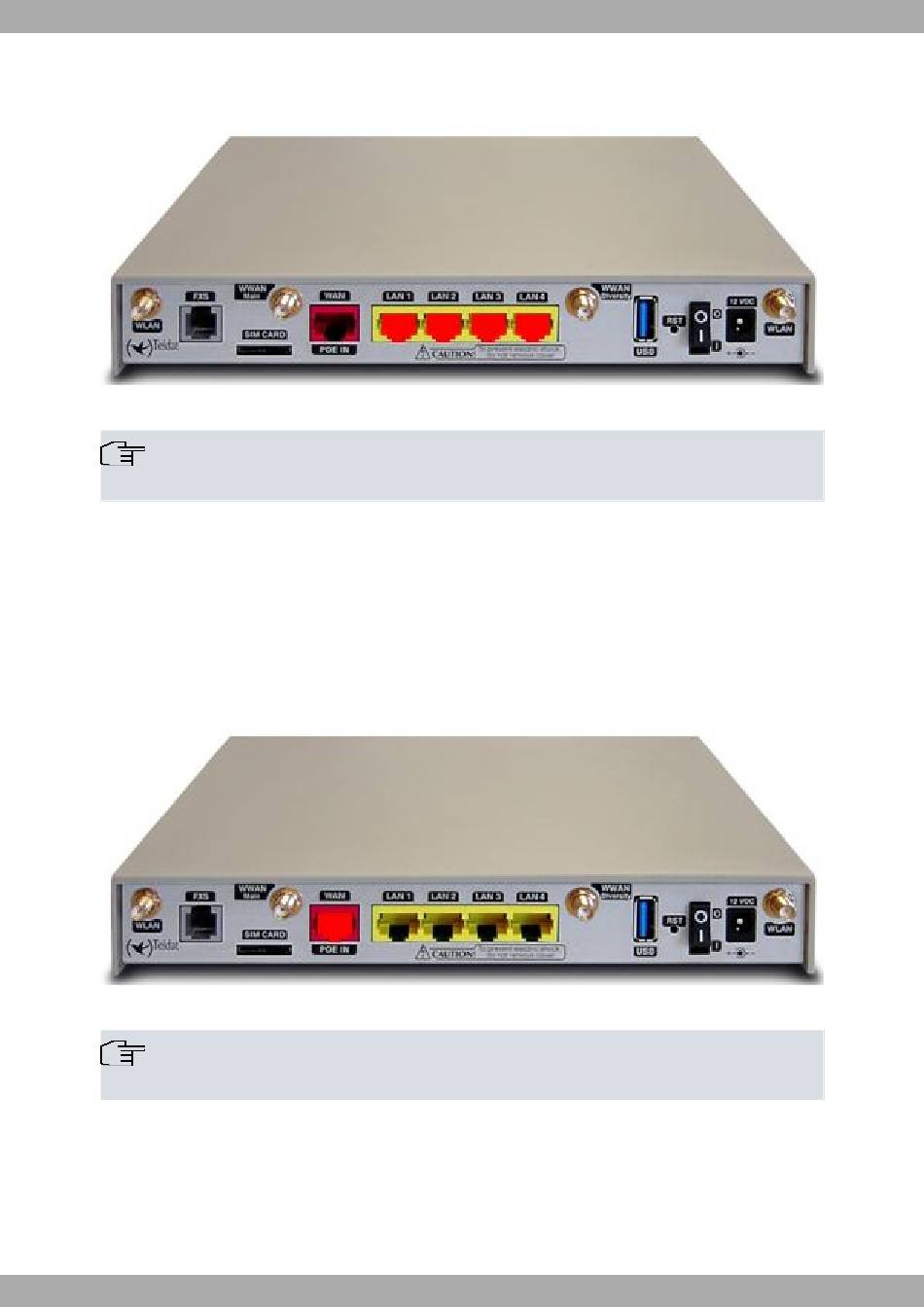

LAN switch ports (4)
Fig. 12:
Note
During startup and in BIOS mode, only the LAN1 connector is available.
1.2.4.2 WAN Connection
The Teldat H1+/H1+GE router has a WAN Ethernet 10/100/1000BaseT port with an automatic MDI/MDIX.
In the Teldat H1+GE router, this port is independent of the Switch and is handled in the same way as another Ether-
net interface. In the Teldat H1+ router, this port forms part of the Switch when the WAN license hasn't been activated
or behaves as Teldat H1+GE if the license has.
Please pay close attention to the labeling. This is important in order to avoid confusing the switch with other types of
ports.
WAN port
Fig. 13:
Note
During startup and in BIOS mode, only the WAN connector isn't operative.
1.2.4.3 Connecting the WWAN antenna
The Teldat H1+/H1+GE router has two connectors to connect the WWAN antennas. To assemble and dismantle the
antennas, simply screw them into the connectors labeled WWAN located at the rear of the device.
You must install the antennas in the Teldat H1+/H1+GE router in order to improve the quality of the signal received
and sent by the Wireless WAN module (GPRS, UMTS, HSDPA, HSUPA, etc.).
