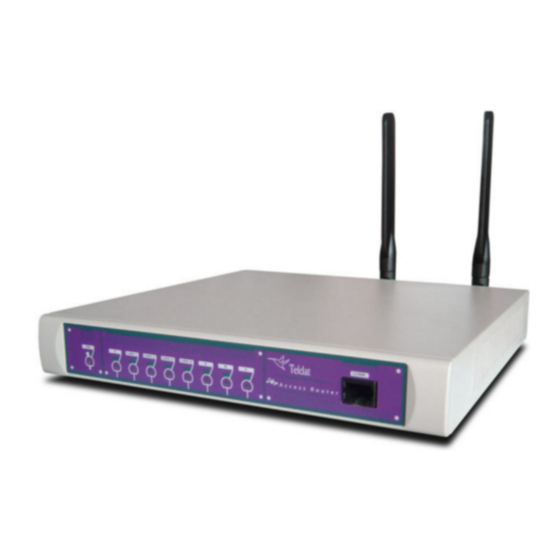

Teldat H1+ Installation Manual
  1. Manuals
  2. Brands
  3. Teldat Manuals
  4. Wireless Router
  5. H1+
  6. Installation manual

Teldat H1+ Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Manual
Teldat S.A.
Teldat H1+/H1+GE
Installation Manual
Copyright© Teldat-DM449-I Version 6.1 7/2015 Teldat S.A.
Teldat H1+/H1+GE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H1+ and is the answer not in the manual?

Questions and answers

Related Manuals for Teldat H1+

Summary of Contents for Teldat H1+

  • Page 1 Manual Teldat S.A. Teldat H1+/H1+GE Installation Manual Copyright© Teldat-DM449-I Version 6.1 7/2015 Teldat S.A. Teldat H1+/H1+GE...
  • Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.

  • Page 3: Table Of Contents

    Compliance Information ....... . B.3.1 Compliance Information for Teldat H1+/H1+GE Routers Relevant to de European Union and Other Countries Following the EU Directive 1999/5/EC (R&TTE Directive) ... . .
  • Page 4 Table of Contents Teldat S.A. Teldat H1+/H1+GE...

  • Page 5: I Important Information

    Furthermore, it is crucial to avoid any kind of contact between the device components and necklaces, bracelets, rings, ties etc. Teldat H1+/H1+GE...

  • Page 6: Installing The Router

    Both routers share the same motherboard and housing; consequently most of the installation procedures are the same. The main difference between the Teldat H1+ and the Teldat H1+GE is that the latter doesn’t have a 3G integ- rated interface (internal module).
  • Page 7 1 Installing the Router Teldat S.A. 3G access router Fig. 1: Metroethernet access router Fig. 2: Teldat H1+/H1+GE...
  • Page 8 Fig. 3: Both devices also support Wireless LAN 802.11 b/g/n, and so only require a software license. There are two Teldat H1+ and Teldat H1+GE router models: (1) One model with an FXS connector so you can connect an analog telephone: Rear panel with FXS connector Fig.

  • Page 9: Connections

    Fig. 6: Front panel without an FXS LED (AUX is there instead) Fig. 7: This manual shows you how to install and connect these devices. Teldat H1+/H1+GE: External aspect Fig. 8: 1.2 Connections Caution Before connecting the router, please read the following instructions carefully.

  • Page 10: If The Ethernet Cable Isn't Poe

    Connect the power supply to the main electricity supply Place the device power switch in the ON position (1) 1.2.2 If the Ethernet cable is POE To Connect To Disconnect Note Power supply through the POE Ethernet cable is independent from the device license. Teldat H1+/H1+GE...

  • Page 11: Power Source Connection

    This will avoid operating and premature aging prob- lems of drivers and other components. 1.2.3.2 With POE injector The Teldat H1+/H1+GE router can be powered through the Ethernet cable (as long as it complies with the POE 802.3af norm). Teldat H1+/H1+GE...

  • Page 12: Data Connections

    The Teldat H1+/H1+GE router has the following connectors available: 1.2.4.1 4 port Ethernet Switch (connectors LAN1..4) The Teldat H1+/H1+GE router has a 4 port 410/100BaseT switch incorporated with an automatic MDI/MDIX to con- nect to the local area network (LAN).
  • Page 13 The Teldat H1+/H1+GE router has a WAN Ethernet 10/100/1000BaseT port with an automatic MDI/MDIX. In the Teldat H1+GE router, this port is independent of the Switch and is handled in the same way as another Ether- net interface. In the Teldat H1+ router, this port forms part of the Switch when the WAN license hasn’t been activated or behaves as Teldat H1+GE if the license has.
  • Page 14 WAN interface. Some cellular telephony technologies use antenna diversity techniques to improve the quality of the received signal (HSUPA, CDMA EV-DO, etc.). For this reason, the Teldat H1+/H1+GE router incorporates two WWAN connectors, labeled Main and Diversity. Wireless WAN antenna connectors Fig.
  • Page 15 1.2.4.4 Wireless LAN connection (ANT connectors) The Teldat H1+/H1+GE router has two RF antenna connectors for an external antenna, in order to improve the qual- ity of the signal received and transmitted by the Wireless LAN module. This module is internal and can be activated by purchasing the corresponding software license.

  • Page 16: Configuration Connection

    1.2.5.1 Configuring using the local console (CONF connector) The Teldat H1+/H1+GE router has a female RJ45 connector on the rear panel labeled as “Conf.” which provides ac- cess to the device’s local console. For configuration, you must connect the “Conf.” port to an asynchronous terminal (or to a PC with terminal emulation).
  • Page 17 1.2.5.2 Configuring using an IP terminal (connectors LAN1..4) The Teldat H1+/H1+GE router includes a default configuration that activates if the device has not been previous con- figured or if the “Procedure to establish the default configuration” has been executed (this is explained further on in this manual).

  • Page 18: Installing The Sim Card

    There are certain services (CDMA) from some operators in several countries that do not require SIM cards. The Teldat H1+/H1+GE has two SIM trays. One SIM tray is accessible from the device exterior and the other is loc- ated inside the device.
  • Page 19 In order to insert a SIM card in the internal tray, locate the fastener (metal catch labeled OPEN and CLOSE). This al- lows you to open the card slot where you insert the SIM card. The steps to follow are: (1) Push the catch towards the left (OPEN) until the SIM card tray is released. Teldat H1+/H1+GE...
  • Page 20 Fig. 21: Steps to take to insert the SIM Fig. 22: 1.2.6.2 Installing the external SIM The external SIM tray slot is located on the rear of the device. The following figure shows you where to locate it: Teldat H1+/H1+GE...
  • Page 21 • Place the device as shown in the above figure. • Insert the SIM card as shown below: Inserting the external SIM card Fig. 24: • Press the card into the slot until you are sure it is fully inserted. Teldat H1+/H1+GE...

  • Page 22: Meaning Of The Leds

    OFF: There is no data in the interface. GREEN: Intermittent. Traffic through the interface. WWAN Interface (H1+GE or H1+ with WAN license: ethernet0/1) (H1+ without a WAN license: ethernet0/0 switch WAN port) OFF: The link hasn’t been established in this port.

  • Page 23: Rst Button

    The RST pushbutton is located on the rear of the Teldat H1+/H1+GE router. It is protected in such a way that it’s only accessible from the outside of the device by using something with a sharp edge to press it.
  • Page 24 17 buffers found. Closing DMA Channels. Starting program at 0x802f8000 CIT software version: XXXXX Current software license: 26 48 S/N: 706/XXXXX ..Default configuration used Parsing text mode configuration ... Configuration parsed Initializing Press any key to get started Teldat H1+/H1+GE...

  • Page 25: Procedure To Force Start Up In Boot Mode

    Copyright (C) 2000-2008 Broadcom Corporation. Parallel flash device: name AM29LV320MT, id 0x2201, size 16384KB CPU type 0x2A031: 400MHz, Bus: 160MHz, Ref: 64MHz CPU running TP0 Total memory: 67108864 bytes (64MB) Boot Address 0xb8000000 *** Break into CFE console *** Teldat H1+/H1+GE...
  • Page 26 In this way the C.I.T. start up cancels and the device pauses in the BOOT prompt: “CFE>” . From this menu, you can access all the BOOT menu commands. Below you can see an example of a H1+/H1+GE start up: CFE version 1.0.37-102.9-02 for BCM96368 (32bit,SP,BE) Build Date: Fri Feb 12 17:20:44 CET 2010 (gjimenez@orion) Copyright (C) 2000-2008 Broadcom Corporation.

  • Page 27: Procedure To Force Start Up In Bios Mode

    Parallel flash device: name AM29LV320MT, id 0x2201, size 16384KB CPU type 0x2A031: 400MHz, Bus: 160MHz, Ref: 64MHz CPU running TP0 Total memory: 67108864 bytes (64MB) Boot Address 0xb8000000 *** Break into BIOS menu *** Board IP address : 192.168.1.1:ffffff00 Host IP address : 192.168.1.100 Teldat H1+/H1+GE...
  • Page 28 • You can execute a telnet to access the BIOS menu. Once you’ve done that you enter in the BIOS menu: CIT software version: 10.08.06 Current software license: 26 48 S/N: 728/00132 === INITIAL MENU === a) Set Date and Time d) Change Licence f) Disk menu l) Load from lan Teldat H1+/H1+GE...

  • Page 29: Wall Mounting

    Change version control for loading 0) Exit >> Note In BOOT mode, only the LAN1 connector is available. 1.5 Wall mounting The Teldat H1+/H1+GE router has four holes in its metal underside so it can be mounted on a wall. Teldat H1+/H1+GE...
  • Page 30 The two holes located on the upper part in Figure 34, indicated by blue arrows, allow the device to be mounted with the antennas pointing downwards. The two holes located on the lower part in Figure 34, indicated by red arrows, allow the device to be mounted with the antennas pointing upwards. Teldat H1+/H1+GE...

  • Page 31: Appendix A Technical Information

    There are various ways to update a Teldat router: please see the software upgrading manual for further information. The software required to update the Teldat routers is provided in a format known as distribution. This consists of a single file containing all the necessary files to update your device, as well as detailed information on the content.

  • Page 32: Connectors

    RJ45 PIN FE Signals GE Signals POE Signals RJ45 WAN BI-DA+ BI-DA+ POE+(A) BI-DA- BI-DA- POE+(A) BI-DB+ BI-DB+ POE-(A) BI-DC+ POE+(B) BI-DC- POE+(B) BI-DB- BI-DB- POE-(A) BI-DD+ POE-(B) BI-DD- POE-(B) A.3.3 WWAN connectors (female) Internal RF in/out External Teldat H1+/H1+GE...

  • Page 33: Wlan Connectors (Male)

    Teldat S.A. A.3.4 WLAN connectors (male) Internal RF in/out External A.3.5 USB connector USB Type A DATA- DATA+ Shell Shield A.3.6 FXS connector (optional) RJ45 PIN CONF RJ11 FXS Ring A.3.7 Configuration connector RJ45 PIN CONF RJ45 CONFIGURATION Teldat H1+/H1+GE...

  • Page 34: Power Connector

    Quadband: 850, 900, 1800, and 1900 MHz Forward link up to 236 kbps; reverse link up to 124 kbps • GPRS: Quadband: 850, 900, 1800, and 1900 MHz Forward link up to 80 kbps; reverse link up to 42 kbps Teldat H1+/H1+GE...
  • Page 35 2 RF Reverse SMA Male USB Interface 3G USB MODEMS Check the Teldat webpage http://www.teldat.com to obtain the list of 3G USB mo- dems that can be supported. SPEED The interface complies with USB 2.0 (480 Mbps) standard: final speed depends on the type of 3G USB modem used.
  • Page 36 Technical Information Teldat S.A. RELATIVE HUMDITY On: 5 % to 90 % Teldat H1+/H1+GE...

  • Page 37: Appendix B Regulatory Compliance And Safety Information

    B.1 Recycling and the Environment Please do not, under any circumstances, throw away any Teldat H1+/H1+GE with normal domestic waste. Ask your local town hall for information on how to correctly dispose of them in order to protect the environment against e- waste.

  • Page 38: Translated Safety Warnings

    Regulatory compliance and safety information Teldat S.A. B.2 Translated Safety Warnings Connections Teldat H1+/H1+GE...

  • Page 39: Compliance Information

    European Union and Other Countries Following the EU Directive 1999/5/EC (R&TTE Directive) This section contains compliance information for Teldat H1+/H1+GE. This information is relevant to the European Union and other countries that are following the EU Directive1999/5/EC. You will find the following information in this section: •...
  • Page 40 Regulatory compliance and safety information Teldat S.A. B.3.1.1 Declaration of Conformity with Regard to the EU Directive 1999/5/EC (R&TTE Directive) Teldat H1+/H1+GE...
  • Page 41 B.3.1.2 Countries where the equipment is intended to be used B.3.1.3 CE Marking For the Teldat H1+/H1+GE, the following CE mark and class 2 identifier are added to the equipment. Standards The following standards were applied during the assessment of the product against the requirements of the Directive...
  • Page 42 Later in this paragraph you will find an overview of countries in which additional restrictions or requirements or both are applicable. The requirements for any country may evolve. Teldat recommends that you check with the local authorities for the latest status of their national regulations for 2.4 wireless LANs.
  • Page 43 B.3.1.6 Technical Documents on http://www.teldat.com For further information on how to find technical documents on the Teldat website, please insert the following corpor- ate page in your browser: http://www.teldat.com. Teldat H1+/H1+GE...
