Appendix B

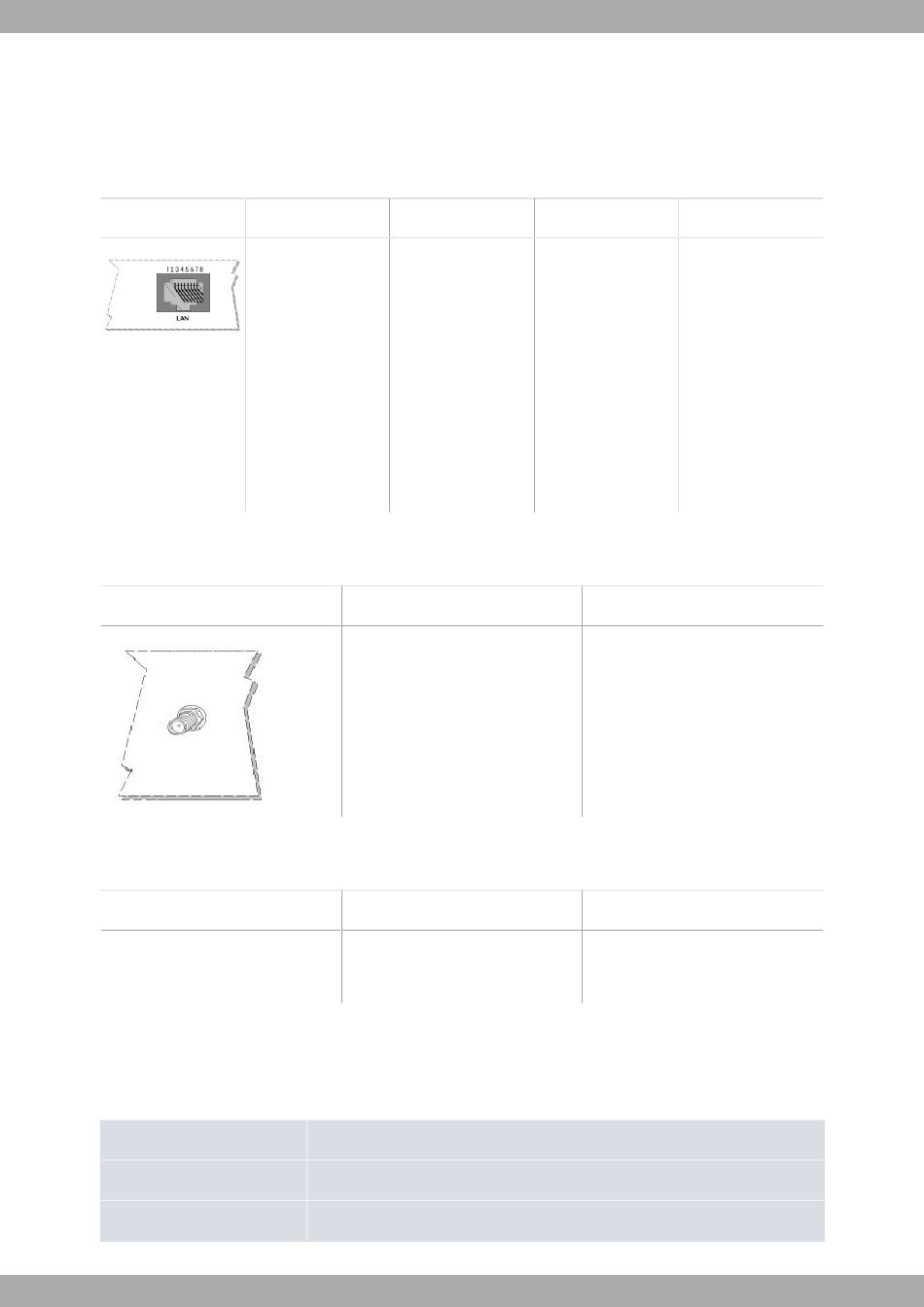

B.3 Connectors
B.3.1 LAN Connector

LAN Connector

RJ45 LAN
B.3.2 WWAN Connector (female)
WWAN Connector
B.3.3 Power Supply Connector

Power Supply Connector

B.4 Technical Specifications
B.4.1 Hardware Architecture
PROCESSORS
MEMORY
STORAGE UNIT
18
RJ45 PINOUTS FE Signals
1 BI-DA+
2 BI-DA-
3 BI-DB+
4 --
5 --
6 BI-DB-
7 --
8 --
PINOUT
Internal
External
PINOUT
Internal
External
Freescale P1014.
DDR3 1Gbit (128 MByte).
FLASH Memory 128 Mbits (16 Mbytes).
GE Signals PoE Signals
BI-DA+ POE+(A)
BI-DA- POE+(A)
BI-DB+ POE-(A)
BI-DC+ POE+(B)
BI-DC- POE+(B)
BI-DB- POE-(A)
BI-DD+ POE-(B)
BI-DD- POE-(B)
ANT
RF in/out
GND
ANT
POSITIVE
NEGATIVE
Teldat S.A.
Teldat Connect-4GE Router
