4. PRESENTATION.
4.1. VIEWS OF THE CABINETS.
4.1.1. UPS cabinet
The models described above can be integrated into 3 different
cabinets that differ in height and the number of slots available:
up to 4 in the 24U cabinet and up to 6 in the 33 and 42U cabinets,
as can be seen in to :

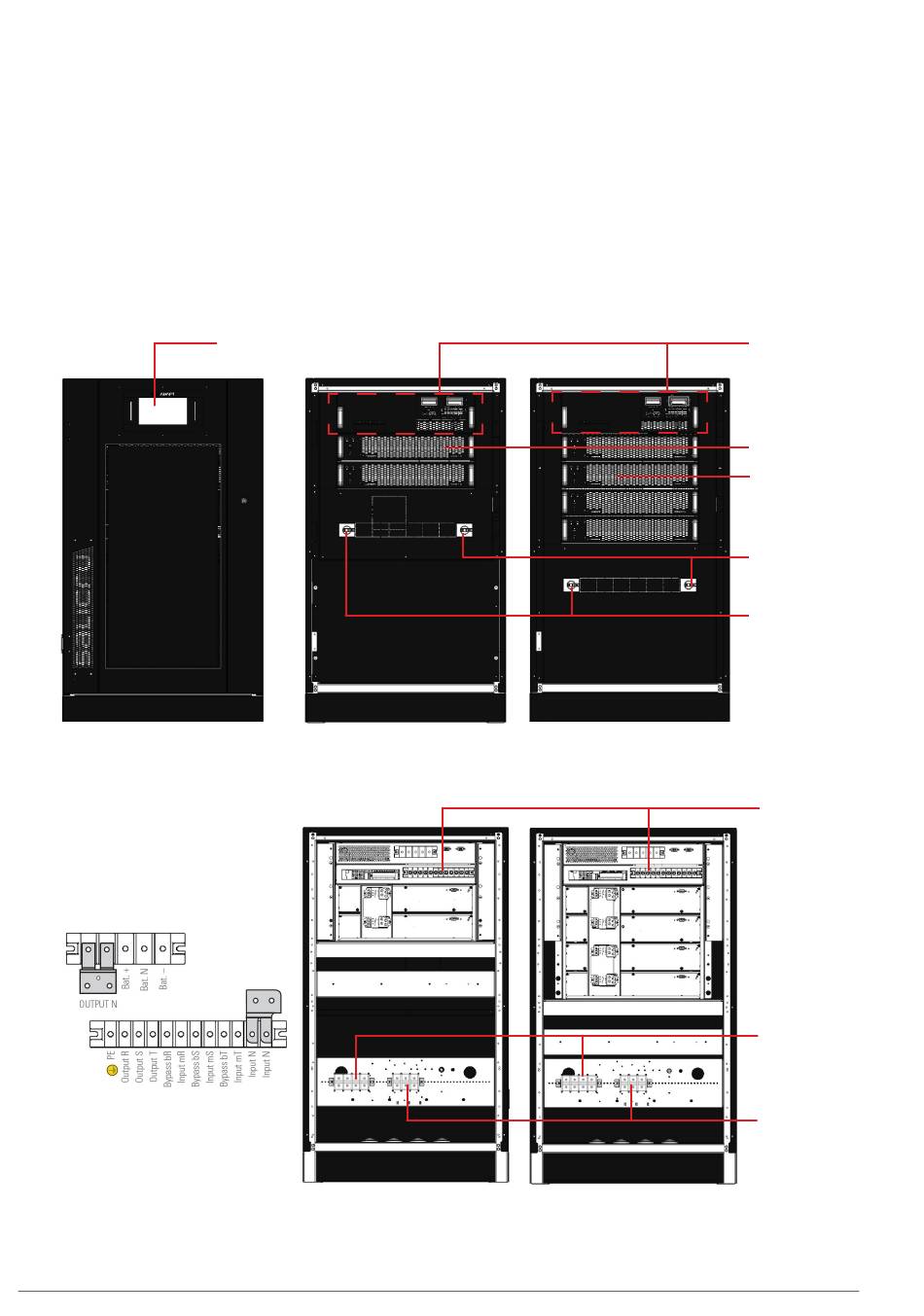

Fig. 1. Front views of the 24U cabinet, with the door closed
(left) and the door open with 2 and 4 modules
installed (centre and right, respectively).
Detail A: Terminal block.
Fig. 2. Rear views of the 24U cabinet with 2 and 4 modules
installed and detail A of the terminal block.
USER MANUAL
LCD
Communications
interface
(See ) + Bypass
Module
Power
modules
Battery
Isolator Switch
Manual Bypass
Isolator Switch
(Optional)
Terminal
block,
See Detail A
Manual
Bypass
Terminals
(Optional)
External
battery
terminals
