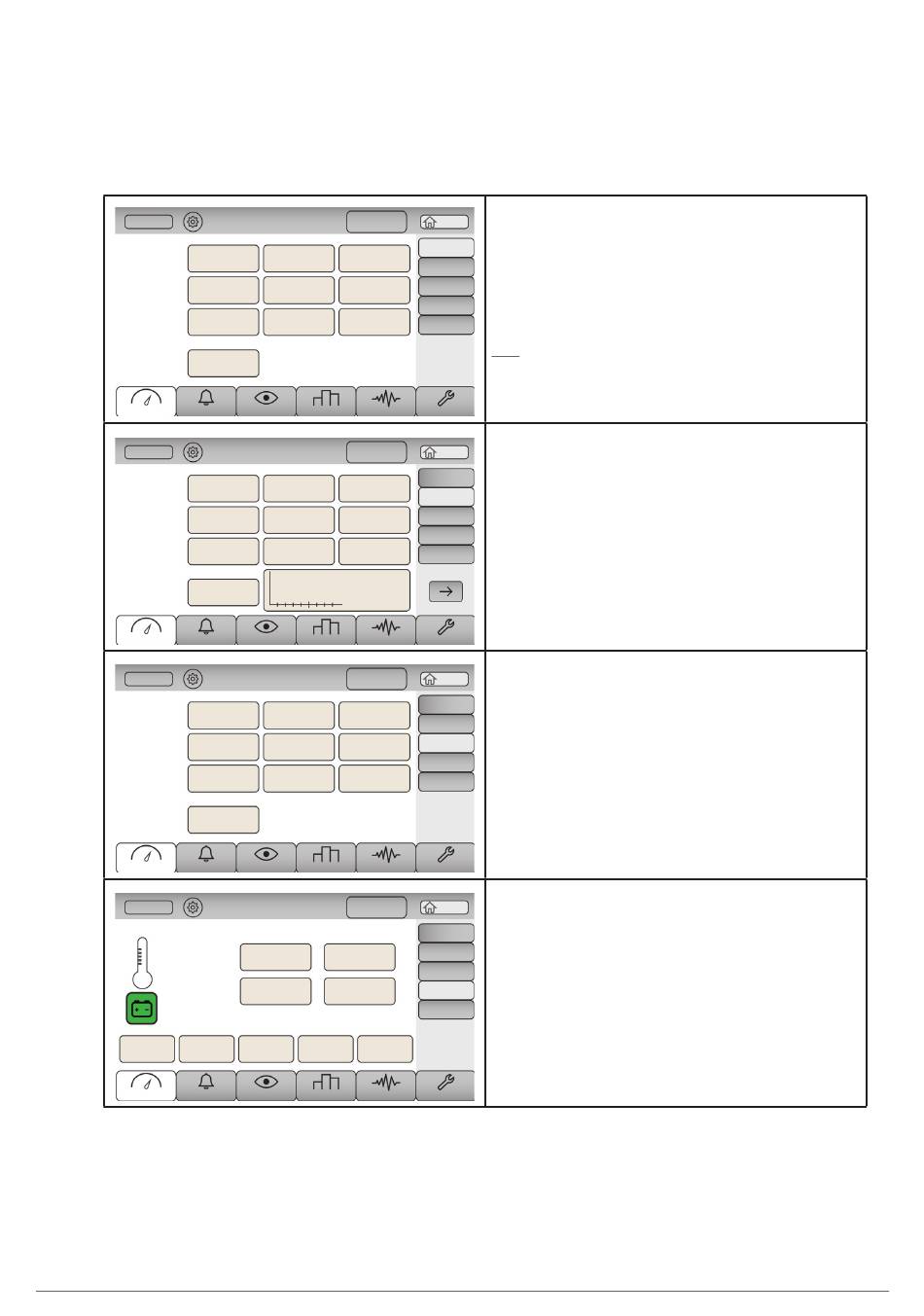

7.4.2. Measurements menu.
All of the measurements screens that can be accessed from the
Measurements screen are described below.
User
Voltage
230. 8V
Current
0. 9A
Power
0. 35
factor
Frequency
50. 0Hz
Measurements
Alarms
User
Voltage
230. 8V
Current
0. 9A
Power
0. 35
factor
Frequency
50. 0Hz
Measurements
Alarms
User
Voltage
230. 8V
Current
0. 9A
Power
0. 35
factor
Frequency
50. 0Hz
Measurements
Alarms
User
Voltage
Current
Capacity
Temperature
24Ah
-8 ºC
Measurements
Alarms
42
0/1
Input
S3.3
4-PM
232. 3V
234. 6V
0. 5A
1. 0A
0. 37
0. 37
Status & Ops
Ratings
Charts
0/1
Output
S3.3
4-PM
232. 3V
234. 6V
1. 0A
0. 5A
0. 37
0. 37
R 0.0%
S 0.0%
T 0.0%
Load 0.0%
Status & Ops
Ratings
Charts
0/1
Bypass
S3.3
4-PM
232. 3V
234. 6V
1. 0A
0. 5A
0. 37
0. 37
Status & Ops
Ratings
Charts
0/1
Batteries
S3.3
4-PM
P
N
322. 7V
323. 6V
0. 0A
0. 0A
Usage time
Estimated time No. Discharges
79D
0Mn
0
Status & Ops
Ratings
Charts
UPS Input measurements:
Start
Three voltages at the rectifier input, measured phase to
•
neutral in volts.
Input
Three currents at the rectifier input, measured per phase in
•
Output
Amperes.
Bypass
Three power factors at the rectifier input, per phase.
•
Batteries
Measured rectifier input frequency in Hz.
•
Module
Note: in this and the subsequent screens, all readings are
expressed to one decimal place except the power factor,
expressed to two decimal places.
Advanced
UPS Output measurements:
Start
Three voltages at the UPS Output, measured phase to neutral
•
Input
in volts.
Output
Three currents at the UPS Output, measured per phase in
•
Bypass
Amperes.
Batteries
Three power factors at the UPS Output, per phase.
•
Module
Measured UPS Output frequency in Hz.
•
Three UPS output load percentages, one per phase, and the
•
total percentage of load at the UPS output,with a graphic
display.
Advanced
Bypass Input measurements:
Start
Three voltages at the Bypass input, measured phase to neu-
•
Input
tral in volts.
Output
Three currents at the Bypass input, measured per phase in
•
Bypass
Amperes.
Batteries
Three power factors at the Bypass Input, per phase.
•
Module
Measured Bypass input frequency in Hz.
•
Advanced
Battery Bank Measurements:
Start
Two battery voltages, Positive and Negative, in volts.
•
Input
Two battery currents, Positive and Negative, in Amperes.
•
Output
Battery capacity in Ah.
•
Bypass
Battery temperature in ºC.
•
Batteries
Operating time of the battery, in days.
•
Module
Estimated backup time, in minutes.
•
Number of times battery discharged.
•
Advanced
