UPS's operating mode information
- S(Single), P(Parallel), E(ECO Single), EP(ECO Parallel), -
L(LBS Single), LP(LBS Parallel), A(Reinjection)
- UPS ID / Nº of UPSs in Parallel (e.g.: 0/3)
- Number of Modules connected in the UPS (e.g.:N=5)
Type of UPS:
- 3:3 3Ph/3Ph
- 3:1 3Ph/1Ph
- 1:3 1Ph/3Ph
- 1:1 1Ph/1Ph
Nimbus Services communications enabled: SNMP card
correctly inserted into its slot.
Nimbus Services communications disabled: No SNMP card
or card installed in non-Internet proprietary networks or
communications errors.
Tab. 13. Description of the start or main menu icons.
7.4.1.3. Map of screens accessible from the Main Screen.

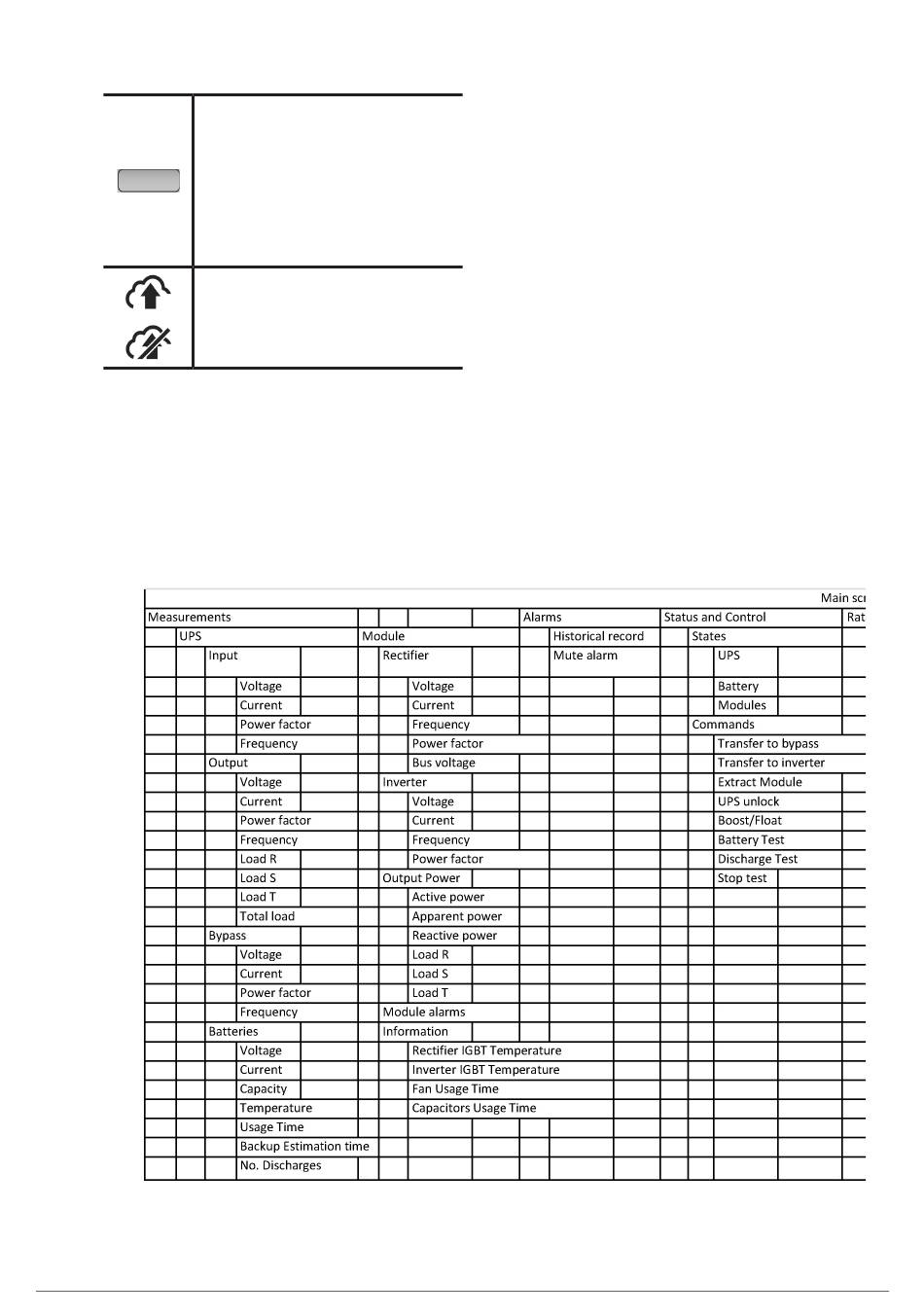

Fig. 35. Screen menu tree
40
7.4.1.2. Information content of the Main Screen.
The following information can be viewed on the Main Screen.
1.
Measured input frequency.
2.
Measured input voltages per phase.
3.
Measured output frequency.
4.
Measured output voltages per phase.
5.
Battery temperature.
6.
Ambient temperature.
7.
Graphic of percentage output load level per phase.
8.
Measured percentage of output load level per phase.
9.
Measured percentage of total output load.
10.
Synoptic diagram of the UPS showing the states of the fol-
lowing Power Blocks:
a.
Bypass status.
b.
Rectifier status.
c.
Inverter status.
d.
Battery status.
All of the power blocks can be represented in three
colours:
GREEN: Normal Operation
–
ORANGE: Operating with a non-critical warning.
–
RED: Operating with a Critical Alarm.
–
e.
Energy flows in the different power blocks of the UPS.
