Salicru SLC ADAPT2 Series User Manual page 33

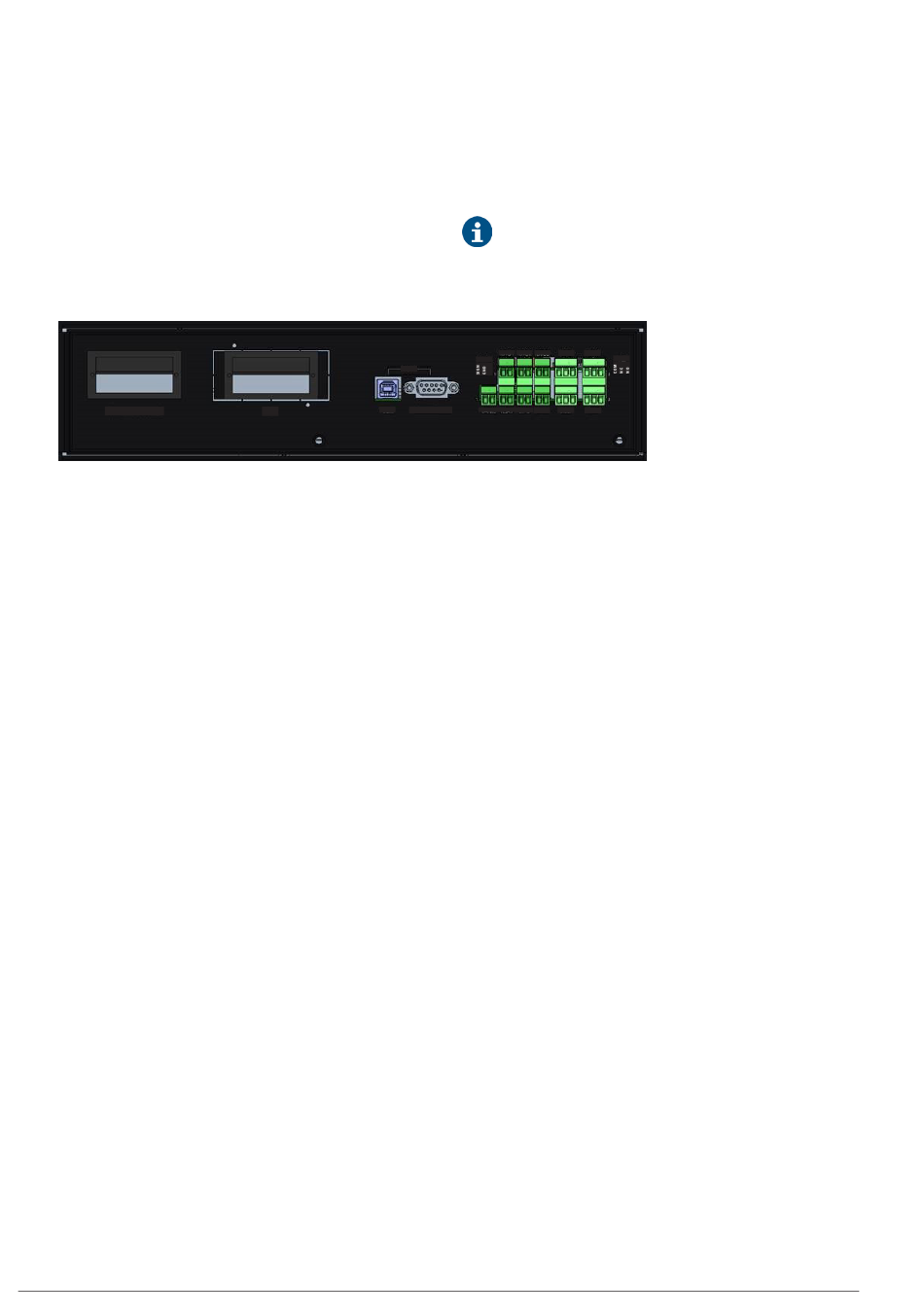

Fig. 28. Distribution of the available communications
interface connections in 2- and 4-slot UPSs.
SNMP / NIMBUS
Fig. 29. Distribution of the available communications
interface connections in 6-slot UPSs.
USER MANUAL
COM
IS USB RS 232 / 485
5.5.7.2. Installation of the SNMP card (Nimbus Services).
All SLC ADAPT2 devices have a slot for the inclusion of the
SNMP adapter unit, located physically on the front of the unit,
and a Nimbus Services card.
See the specific manual EL139*00 for a detailed descrip-
tion of the available services and their configuration.
In the 2- and 4-slot UPSs, it is located behind the cover
•
giving access to the communication connections, located
next to the monitoring panel with touch screen. see .
To install the SNMP card:
ˆ
1.
Remove the screws securing the access cover to
IDIG1 IDIG2 IDIG3 RL1 RL3
RL
IDIG
the communication connections.
2.
Remove the cover. The slot is visible.
3.
Remove the fixing screws of the slot cover and the
IDIG4 RL2
TAMB TBAT EPO RL4
part as a cover.
4.
Install the SNMP card in the slot and fix it with the
screws.
5.
Make the relevant connections.
6.
Fit the protective cover of the communication con-
nections and fit the fixing screws.
In 6-slot UPSs, the slot is located on the back of the device,
•
see .
To install the SNMP card:
ˆ
1.
Remove the fixing screws of the slot cover and the
part as a cover.
2.
Install the SNMP card in the slot and fix it with the
screws.
3.
Make the relevant connections.
SLC ADAPT 2 - UNINTERRUPTIBLE POWER SUPPLY SYSTEM -
33
