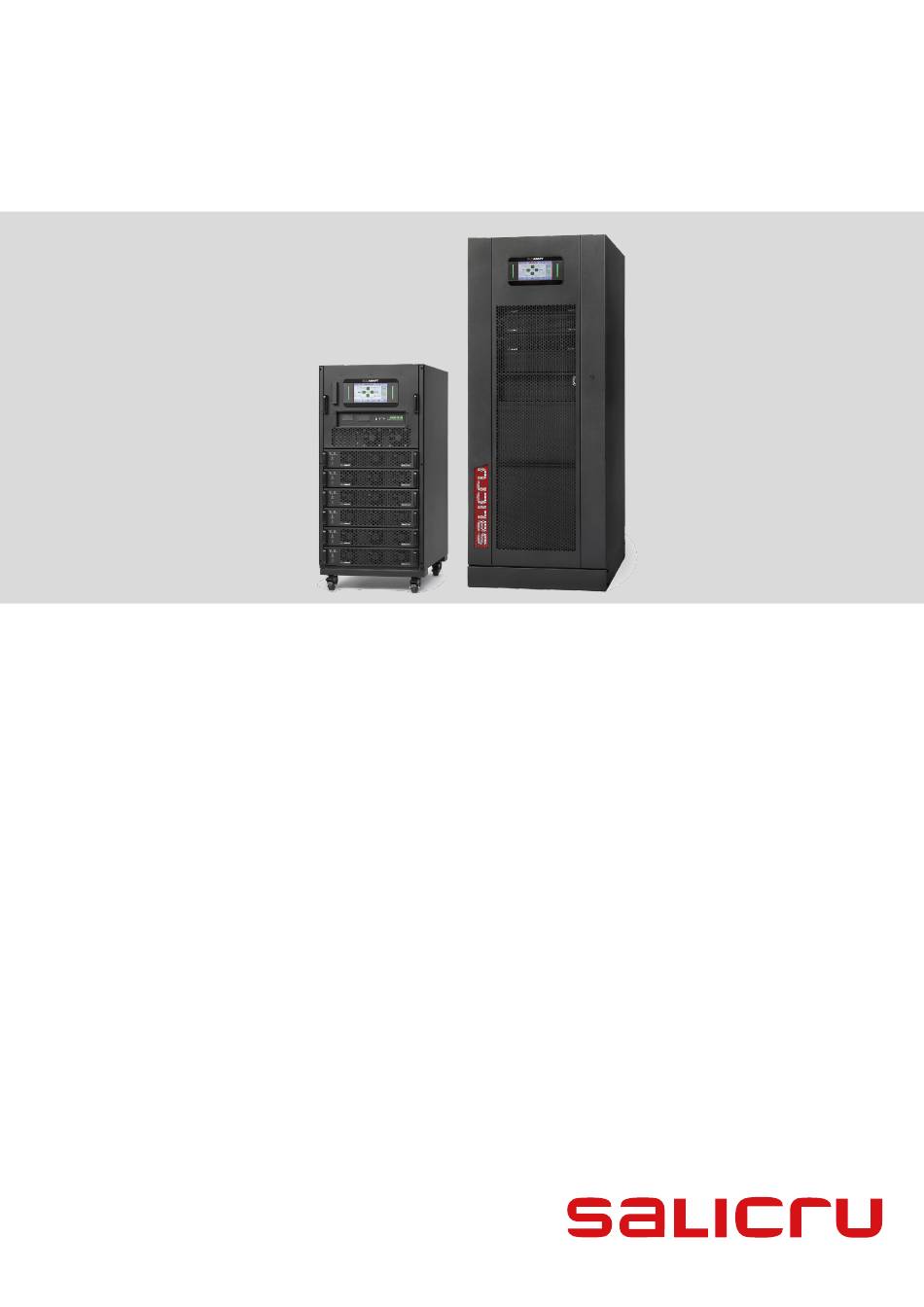

PRODUCT GUIDE
UNINTERRUPTIBLE POWER SUPPLIES (UPS)
SLC ADAPT2

Advertisement

loading
Need help?

Need help?

Do you have a question about the SLC ADAPT2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Salicru SLC ADAPT2

Summary of Contents for Salicru SLC ADAPT2

  • Page 1 PRODUCT GUIDE UNINTERRUPTIBLE POWER SUPPLIES (UPS) SLC ADAPT2...
  • Page 2 6.4. STATIC BYPASS AND MONITORING MODULE. 8.2.11. BPME (External Manual Bypass). 6.4.1. Control Panel. 9. INSTALLATION. 6.4.1.1. Digital Display. 10. MECHANICAL CHARACTERISTICS. 6.4.2. Communications. 10.1. MATERIALS. 6.4.2.1. Relay Output Port. 10.2. CABINET. 6.4.2.2. Input Port. 10.3. WIRING. 6.4.2.3. Communication Port. SALICRU...
  • Page 3 12.3. TIER III. 12.4. TIER IV. 13. TECHNICAL SPECIFICATIONS. 13.1. TECHNICAL SPECIFICATIONS - RECTIFIER. 13.2. TECHNICAL SPECIFICATIONS - BATTERY CHARGER. 13.3. TECHNICAL SPECIFICATIONS - INVERTER. 13.4. TECHNICAL SPECIFICATIONS - BYPASS. 13.5. SYSTEM PERFORMANCE SPECIFICATIONS. 13.6. GENERAL SYSTEM SPECIFICATIONS. PRODUCT GUIDE SLC ADAPT2...

  • Page 4: Main Features

    1. INTRODUCTION. These specifications describe Salicru’s SLC ADAPT2 Uninter- ruptible Power Supply (UPS) series, comprised of UPS devices that can operate both independently and connected in parallel without the need for a shared central bypass. The SLC ADAPT2 UPS series ensures optimum protection of any critical load,...
  • Page 5 2. STANDARDS AND ENVIRONMENT. 2.1. STANDARDS. SLC ADAPT2 UPS series is designed, manufactured and sold in accordance with the EN ISO 9001 Quality Management Standard. The marking indicates conformity with EC Directives through the application of the following standards: 2014/35/EU. - Low-voltage safety.
  • Page 6 Supply interruptions caused by line switching. • 3.6. SUPPLY FAILURES (BLACKOUTS). Total supply failures are generally due to the untimely activa- tion of a distribution network protection system. 1 ms < T < hundreds of ms Mains failure (power supply cut) Rated voltage SALICRU...
  • Page 7 They are the result of unintended coupling of commercial net- works with devices using high frequency or switching technolo- gies. Depending on the type of coupling, they can be in common mode or differential mode. PRODUCT GUIDE SLC ADAPT2...
  • Page 8 4. VERSIONS, NOMENCLATURE AND STRUCTURAL DIAGRAM. 4.1. NOMENCLATURE. 2 SLC-1+1/2B-ADAPT2 20 T1 D2 E3 0/F10H J43 DY1 B1 C D B L P Z SB RB DA CD W BF BA CO A EE666502 SALICRU...
  • Page 9 Lower back (disregard in code description). Feet of the same profile (disregard in code description). Lower front Seismic/Marine feet Upper back Rotating wheels Upper front Rotating front wheels Lower back terminals Rotating back wheels Upper back terminals Lower front terminals PRODUCT GUIDE SLC ADAPT2...
  • Page 10 BAT MOD MCB (only for battery modules) REDUNDANT BAT MOD FUS (only for battery modules) REDUNDANT BAT MOD MCB (only for battery modules) MCB IN/OUT/BM + BAT PF MCB IN/OUT/BM + BAT PF Sized for the maximum power of the subrack SALICRU...
  • Page 11 1x32AB302 7Ah 1x32AB341 7Ah 2x32AB302 7Ah 2x32AB341 7Ah 3x32AB302 7Ah 3x32AB341 7Ah 4x32AB302 7Ah 4x32AB341 7Ah 5x32AB302 7Ah 5x32AB341 7Ah 1x36AB302 7Ah 1x36AB341 7Ah 2x36AB302 7Ah 2x36AB341 7Ah 3x36AB302 7Ah 3x36AB341 7Ah 4x36AB302 7Ah 4x36AB341 7Ah PRODUCT GUIDE SLC ADAPT2...
  • Page 12 3x36AB303 12Ah 3x36AB340 12Ah 4x36AB303 12Ah 4x36AB340 12Ah 5x36AB303 12Ah 5x36AB340 12Ah 1x40AB303 12Ah 1x40AB340 12Ah 2x40AB303 12Ah 2x40AB340 12Ah 3x40AB303 12Ah 3x40AB340 12Ah 4x40AB303 12Ah 4x40AB340 12Ah 5x40AB303 12Ah 5x40AB340 12Ah 1x44AB303 12Ah 1x44AB340 12Ah 2x44AB303 12Ah 2x44AB340 12Ah SALICRU...
  • Page 13 3x44AB155 26Ah 3x44AB338 26Ah 4x44AB155 26Ah 4x44AB338 26Ah 5x44AB155 26Ah 5x44AB338 26Ah 1x32AB336 34Ah not available 2x32AB336 34Ah not available 3x32AB336 34Ah not available 4x32AB336 34Ah not available 5x32AB336 34Ah not available 1x36AB336 34Ah not available PRODUCT GUIDE SLC ADAPT2...
  • Page 14 1x44AB337 40Ah 2x44AB337 40Ah 3x44AB337 40Ah 4x44AB337 40Ah 5x44AB337 40Ah 1x32AB257 56Ah 2x32AB257 56Ah 3x32AB257 56Ah 4x32AB257 56Ah 5x32AB257 56Ah 1x36AB257 56Ah 2x36AB257 56Ah 3x36AB257 56Ah 4x36AB257 56Ah 5x36AB257 56Ah 1x40AB257 56Ah 2x40AB257 56Ah 3x40AB257 56Ah 4x40AB257 56Ah 5x40AB257 56Ah SALICRU...
  • Page 15 F11M 3x40AB219 93Ah F11N 4x40AB219 93Ah F11O 5x40AB219 93Ah F11P 1x44AB219 93Ah F11Q 2x44AB219 93Ah F11R 3x44AB219 93Ah F11S 4x44AB219 93Ah F11T 5x44AB219 93Ah F12A 1x32AB317 105Ah F12B 2x32AB317 105Ah F12C 3x32AB317 105Ah F12D 4x32AB317 105Ah PRODUCT GUIDE SLC ADAPT2...
  • Page 16 2x44AB317 105Ah F12R 3x44AB317 105Ah F12S 4x44AB317 105Ah F12T 5x44AB317 105Ah Table 5 IP20* (Disregard in code description) IP20 battery cabinet with open door IP21 IP30 IP31 IP43 Table 6 Spanish (Disregard in code description) English French Catalan Portuguese German SALICRU...

  • Page 17: General Description Of The Device

    DSP control technology, which provides significant installation and operation cost savings while offering maximum protection for the connected loads. 5.1. BLOCK DIAGRAM. Fig. 1. Single-line presentation of the block diagram of an SLC ADAPT2 system. PRODUCT GUIDE SLC ADAPT2...

  • Page 18: Operating Principle

    1%. The rectifier has a soft-start function for systems with 10, 15, 25 and 50 kVA modules, which limits the consumption at the rectifier input from 0% to 100% of the nominal power when the SALICRU...
  • Page 19 110% for 60 minutes • 125% for 10 minutes • 150% for 60 seconds • >150% for 200 milliseconds • PRODUCT GUIDE SLC ADAPT2...

  • Page 20: Battery Charger

    The charging current is adjusted to 20% of the batteries’ ca- SLC ADAPT2 pacity (0.2C) for standard configurations and for backup exten- The inverter controller on the series is able to sions of up to 30 minutes during device startup.
  • Page 21 The list of events should be ordered chronologically. ALM_BYPASS_CAN_FAIL The display provides the following functions and information ALM_FIRMWARE_ERROR (among others): ALM_SYSTEM_SETTING_ERROR Identifiers and description of system events: ALM_MODULE_ID_DUPLICATE ALM_INV_IGBT_OVERCURRENT ALM_REDUNDANT_OVL_TOUT ALM_NO_OUTPUT ALM_MAINT_BYPASS Table 1. Table of system alarms. PRODUCT GUIDE SLC ADAPT2...
  • Page 22 Measurements Alarms Status & Ops Rated Charts Advanced Power supply neutral failure. • Fig. 8. Display for devices with 10 and 15 kVA modules. “N” module power supply disconnected. • Bypass fan failure. • “N” module manual stop. • SALICRU...

  • Page 23: Manual Bypass

    Its overload capacity allows for a permanent overload of 125% and up to 1000% for a period of one second. Loads can be transferred to the bypass manually via the control panel as well as automatically. PRODUCT GUIDE SLC ADAPT2...

  • Page 24: Operating Modes

    Thanks to the Cold Start function included on all models, the the supply for this line comes from a utility company (same as SLC ADAPT2 series enables you to activate the inverter di- the main network that supplies the rectifier or a second utility rectly from the batteries, without any input voltage.

  • Page 25: Eco Mode

    7.7. FREQUENCY CONVERTER MODE. This mode will set the output frequency at a fixed value (50 or 60 Hz) and will disable the bypass. PRODUCT GUIDE SLC ADAPT2...
  • Page 26 The sequential start can be adjusted in line with the following WAN computer network. range of values: 1-300 s. There are different types of SNMP cards available depending on the customer's needs. In all of them, the internal protocol of SALICRU...
  • Page 27 8.2.11. BPME (External Manual Bypass). The purpose of this option is to electrically isolate the device from the input and output networks without the need to cut off the power supply, so that maintenance or repair operations PRODUCT GUIDE SLC ADAPT2...

  • Page 28: Installation

    Local elec- trical regulations and different restrictions in the customer’s location may invalidate some recommendations contained in the manuals. Where discrepancies exist, the user must comply with the relevant local regulations. SALICRU...

  • Page 29: Mechanical Characteristics

    The cables enter the cabinet through the lower section of the cabinet’s front. Optionally, they can enter through the upper sec- tion. PRODUCT GUIDE SLC ADAPT2...

  • Page 30: Communication Protocols

    The MODBUS protocol can also be supplied by RS-485 or by Ethernet connection, which allows the communication of the UPS with other devices. You can request the MODBUS map from your distributor. SALICRU...
  • Page 31 12.2. TIER II. This type of configuration has an N+1 redundancy in the power modules. SLC ADAPT2 SLC ADAPT2 All of the modules are installed in a single cabinet. There is N+1 / N+M N+1 / N+M just one input network, which is shared by the rectifier and the bypass.

  • Page 32: Technical Specifications

    ECO mode operation Rated frequency 50/60 Hz. Operation in battery mode Under circumstances of full load and with Total installed power 15-500 kVA (discharge) a linear load connected to the output. Number of modules installed Module configuration N – (N+n) SALICRU...

  • Page 33: General System Specifications

    Relative humidity Up to 95% without condensation Operating altitude 2,400 masl <65 dB(A) / <72 dB(A) * depending Acoustic noise on module Redundancy Module power 10, 15, 25 or 50 kVA MTBF 250,000 h MTTR 30 min. PRODUCT GUIDE SLC ADAPT2...
  • Page 34  : ....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SALICRU...
  • Page 35  : ....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................PRODUCT GUIDE SLC ADAPT2...
  • Page 36 REF. JN022E01 REV. E CODE 401* Avda. de la Serra 100 08460 Palautordera BARCELONA Tel. +34 93 848 24 00 sst@salicru.com SALICRU.COM Information about the technical support and service network (TSS), the sales network and the warranty is available on our website: www.salicru.com...
