11. ANNEXES.
11.1. ANNEX I: CONNECTION CONFIGURATION FOR SINGLE
MAINS SUPPLY TO RECTIFIER-PFC - STATIC BYPASS.
These illustrations show the connection plates between the
terminals of both supplies (PFC-rectifier input and static by-
pass) for a single mains supply, generally the most common
case. When separate AC mains are available to separately feed
the PFC-rectifier and the static bypass inputs, the connection
strips between the phases must be removed, depending on the
UPS model. In this configuration, the static bypass and main-
tenance bypass share the same AC source independent of the
PFC-rectifier source.
Although the input and output types of SLC ADAPT2 se-
ries with 10 kVA modules are configurable, any modifi-
cation by the customer or user is restricted, since, in addition to
modifications to the connection strip, it is necessary to make
changes through the password-restricted screen exclusively
T.S.S.
reserved for our or distributors. The bridging strips for
the different configurations described are only included when
the client requests them.

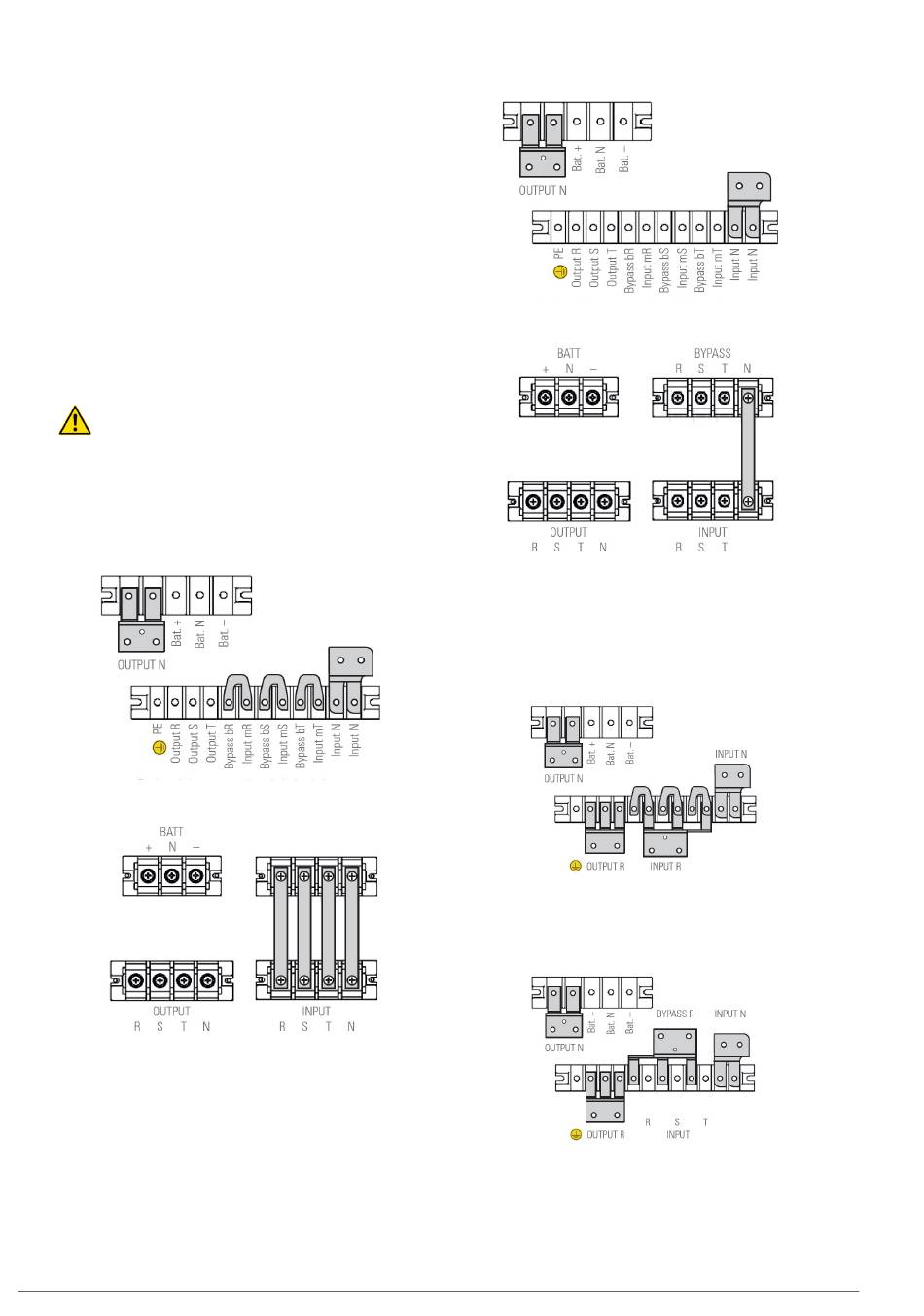

Terminal block in 2-slot and 5-slot UPSs
Terminal block in 6-slot UPS
Fig. 38. Terminal blocks for three-phase/three-phase
configuration and single mains supply (PFC-recti-
fier and static bypass)
USER MANUAL
Terminal block in 2-slot and 4-slot UPSs
Terminal block in 6-slot UPS
Fig. 39. Terminal blocks for three-phase/three-phase
configuration and separate mains supplies (PFC-
rectifier and static bypass)
Terminal block in 2-slot and 4-slot UPSs
Fig. 40. Single-phase input - Single-phase output, single
supply to Rectifier and Bypass (2 and 4-slots)
Terminal block in 2-slot and 4-slot UPSs
Fig. 41. Three-phase input - Single-phase output,
separate supplies to Rectifier and Bypass (2 and
4-slots)
