7. MONITORING PANEL WITH LCD TOUCH
SCREEN.
This chapter describes the functions and instructions for opera-
tion of the monitoring panel with LCD touch screen, including
detailed information on the menus, notice screens and list of
alarms from the UPS.
7.1. INTRODUCTION.
Physically, the monitoring panel with LCD touch screen and
static bypass are part of the same unit as a module, although
they are individual entities with their own functionalities.
Through the LCD panel you can operate and control the UPS,
verify all measurements and parameters, device status and
batteries, and historical and event logs. The following figure
shows the monitoring panel:
RGB LED

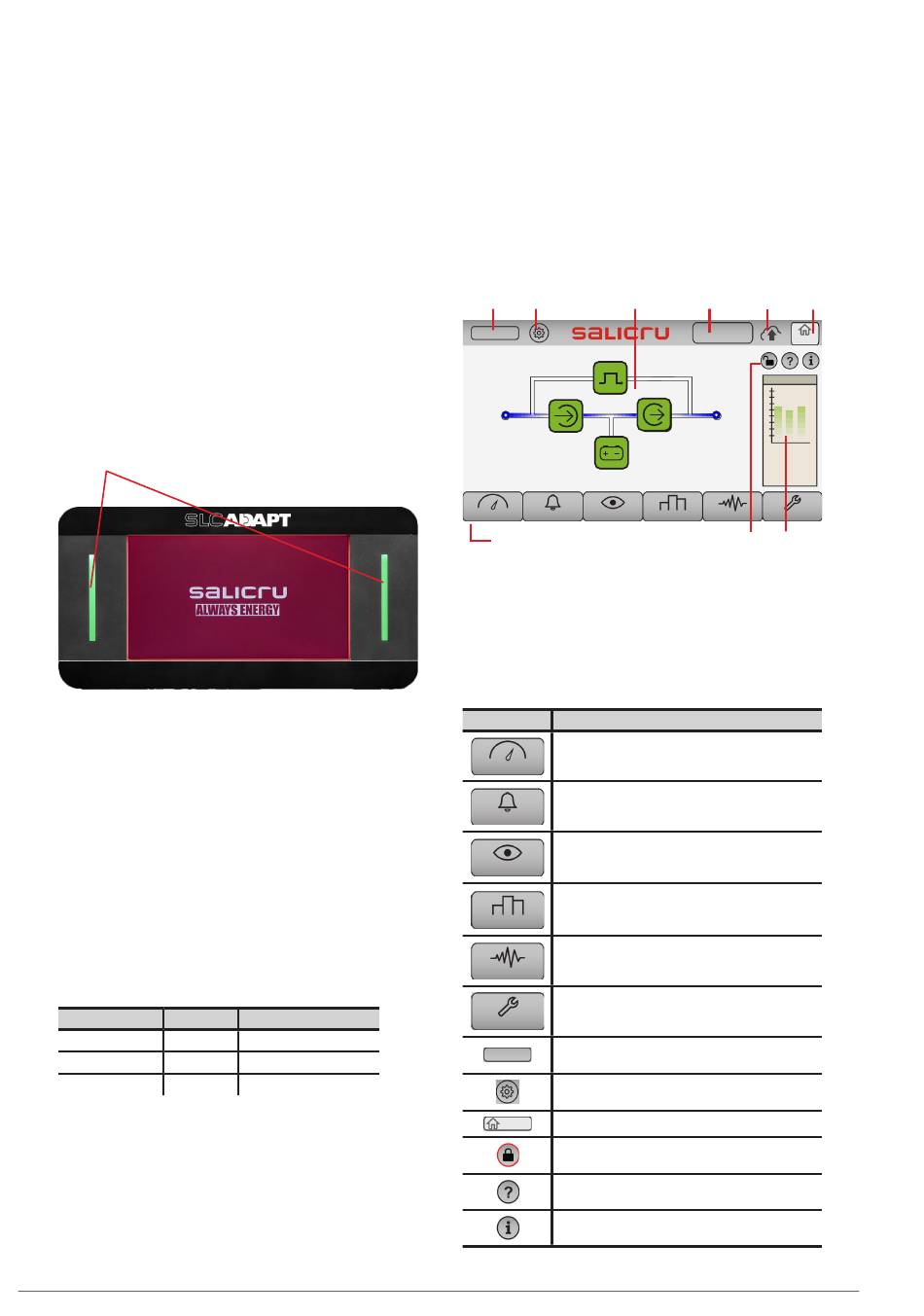

Fig. 33. Touch screen with two RGB LEDs to show the
status of the UPS.
The control panel consists of two parts:
1.
The touch-sensitive data and parameter configuration display.
2.
Two RGB status LEDs.
7.2. FUNCTIONS OF THE RGB LEDS.
The RGB LEDs indicate the STATUS of the UPS You can see
at a glance if the UPS status is NORMAL, LOW-LEVEL ALERT
(WARNING) or ALARM. They change in colour and flashing fre-
quency. Although both the colours and the flashing frequencies
of the indicators can be programmed, by default they are as
shown in the following table:
UPS Status LED colour
Normal Green
Warning Amber
Alarm Red
Table 12. Functions and colour coding of the LEDs.

7.3. ACOUSTIC ALARM.

The acoustic alarm in the UPS has two tones that define the
presence of Alarms (rapid beeps) or Warnings (slow beeps).
USER MANUAL
Flashing frequency
Very slow
Slow
Quick
7.4. DESCRIPTION OF THE SCREENS SHOWN ON THE

LCD TOUCH SCREEN.

7.4.1. Start menu or main screen.
, by way of example, shows the main screen that the LCD moni-
toring panel can display. It is basically divided into four areas:
System information, Power flow, Current warnings or Alarm
window, and Main menu.
User
button Settings Synoptic
User
50.0Hz
Input frequency
221. 9V
Phase R
223. 5V
Phase S
222. 6V
Phase T
Battery Temp. Ambient Temp.
21ºC
Measurements Alarms Status & Ops
Horizontal menu bar
Fig. 34. Main start-up screen.
7.4.1.1. Access to menus and sub-menus from the Main screen.
The Main menu includes the following icons:
Icon
UPS parameters menu. This menu contains sub-menus to
obtain information on the different parts of the UPS.
Measurements
Alarms menu. Opens a table showing the active Alarms and
Warnings at any moment.
Alarms
Status and Control menu. This screen displays the different
states of the UPS and allows a series of UPS operations to
Status & Ops
be controlled manually.
Rated Values menu. Certain ratings parameters of the UPS
can be configured in this menu.
Ratings
Graphics display menu for some relevant parameters of the
UPS, such as voltages, currents, powers, etc.
Charts
UPS Advanced Configuration menu.
Advanced
Allows users to initiate session as an Advanced user or a
User
Specialised user.
Tools sub-menu for date and time setting, language
selection, screen brightness, etc.
Returns the user to the Main Screen.
Start
Screen Lock button
Help text button.
Button to contact the UPS manufacturer
UPS Nimbus Start
Status Services button
0/1
S3.3
4-PM
Start
50.0Hz
Output frequency
Output load
221. 9V
Phase R
223. 5V
Phase S
R 93. 0%
222. 6V
Phase T
S 93. 0%
T 95. 0%
Load 97.0%
20ºC
Rated Charts Advanced
Lock
Charge
level
Description
