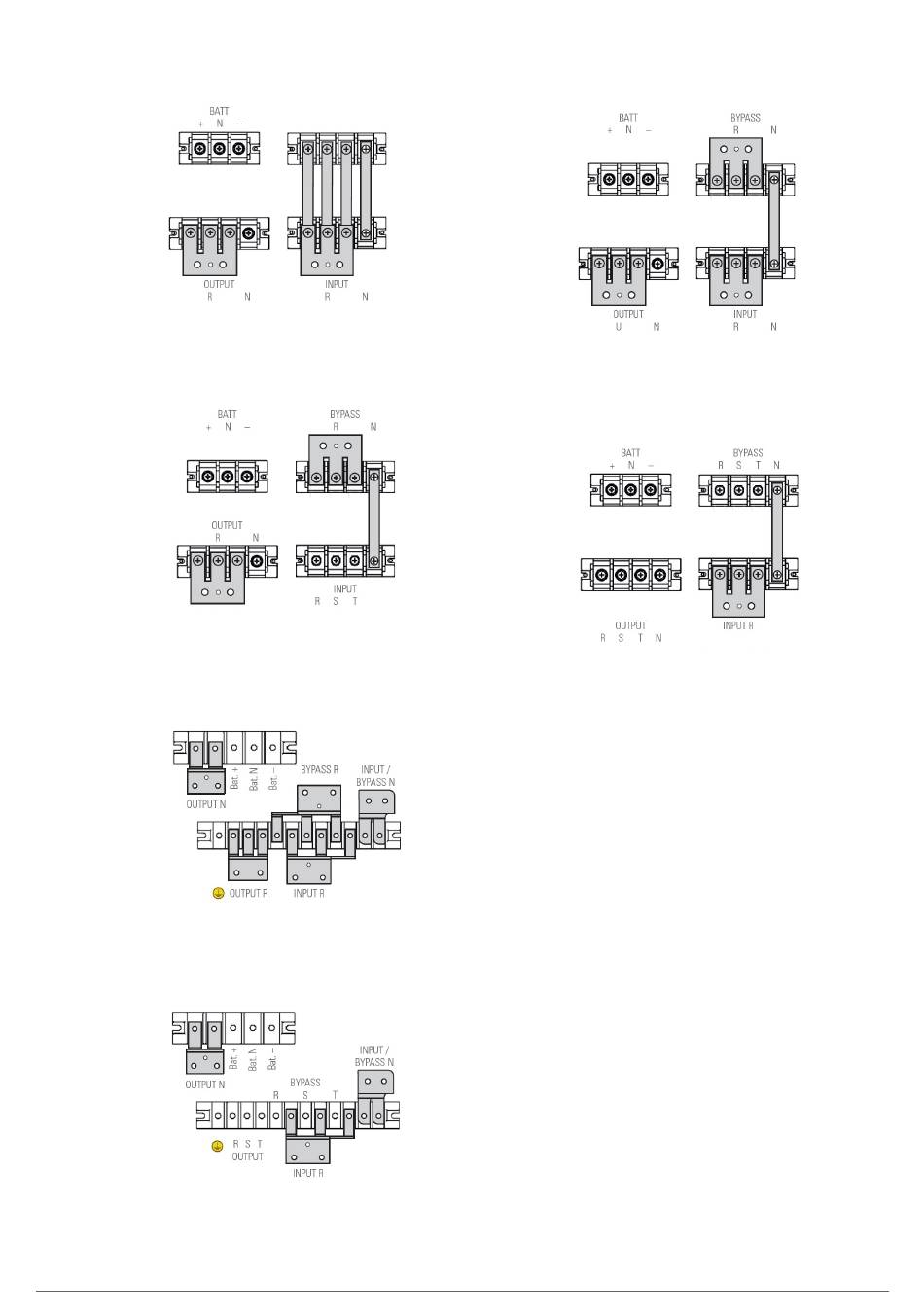

Fig. 42. Single-phase input - Single-phase output, single

supply to Rectifier and Bypass (6-slots)

Fig. 43. Three-phase input - Single-phase output, separate

supplies to Rectifier and Bypass (6-slots)

Terminal block in 2-slot and 4-slot UPSs

Fig. 44. Single-phase input - Single-phase output, separate

supplies to Rectifier and Bypass (2 and 4-slots)

Terminal block in 2-slot and 4-slot UPSs

Fig. 45. Single-phase input - Three-phase output, separate

supplies to Rectifier and Bypass (2 and 4-slots)

Terminal block in 6-slot UPS

Fig. 46. Single-phase input - Single-phase output, separate

supplies to Rectifier and Bypass (6-slots)

Terminal block in 6-slot UPS

Fig. 47. Single-phase input - Three-phase output, separate

supplies to Rectifier and Bypass (6-slots)
