Open-Q™ 670 HDK Hardware Development Kit User Guide Version 1.0

A dip switch, which is DSI1_SW_SEL(S2301-8), provides an option to boot with on-

board display or external HDMI monitor/television. The switch should be set before

device power on and the default setting is for display. (off = display; on=HDMI)

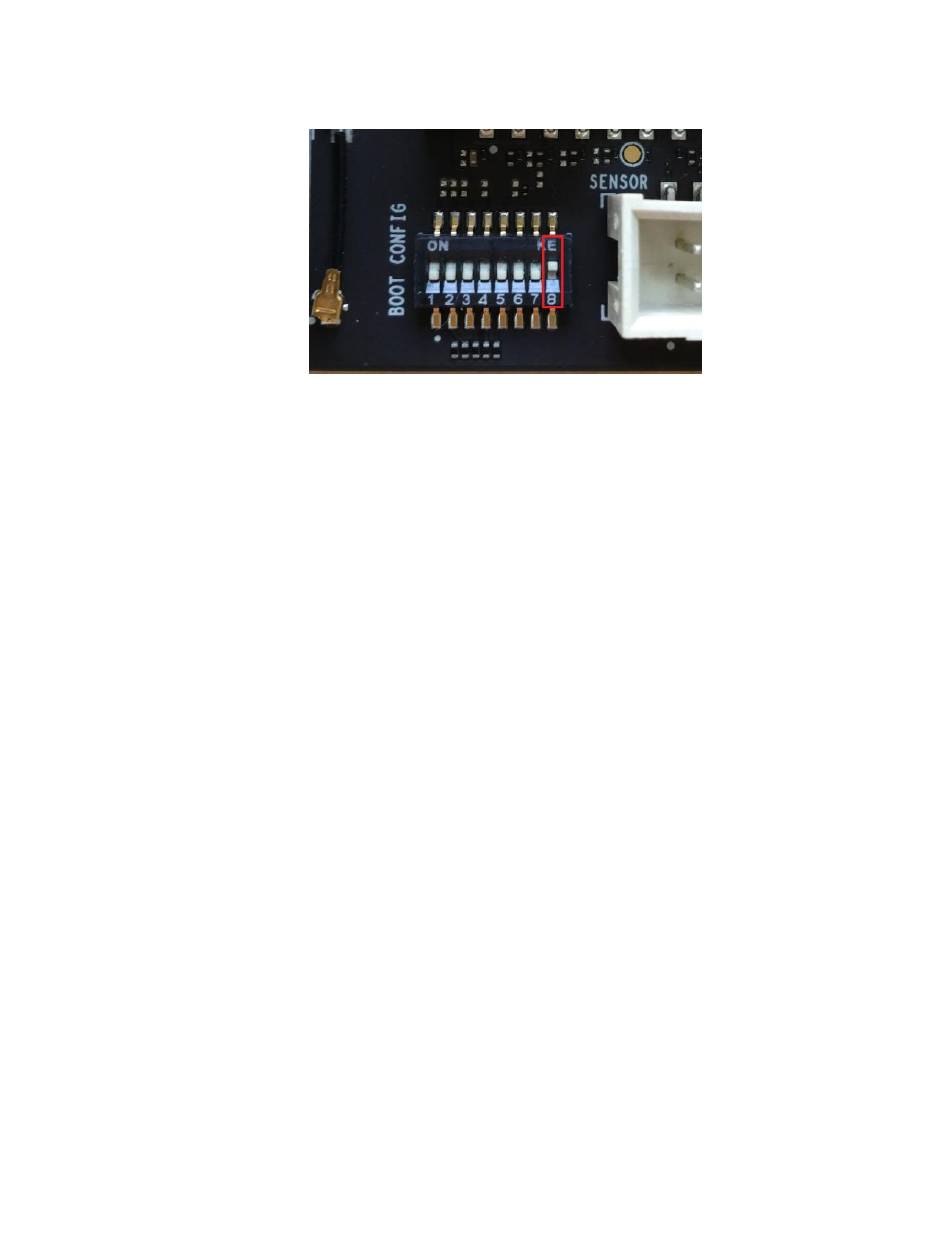

Figure 3-23 Dip Switch S2301-8

See Table 3.8-2 Dip Switch S2301 HW / SW configuration for more details.

To disable UEFI display before using HDMI, run the following command:

fastboot oem select-display-panel none
