Open-Q™ 670 HDK Hardware Development Kit User Guide Version 1.0

The headset jack (J1501) is a standard 3.5mm, Normal Open Style jack. The hardware

supports US Standard CTIA headset by default.

3.8.2.8 Audio Inputs Expansion Header J1601

This header expansion provides the following audio inputs:

3 digital mics

◼

3 analog mics

◼

Voltage rails to support analog and digital mics

◼

The table below outlines the pin out information of the audio inputs expansion header J1601:

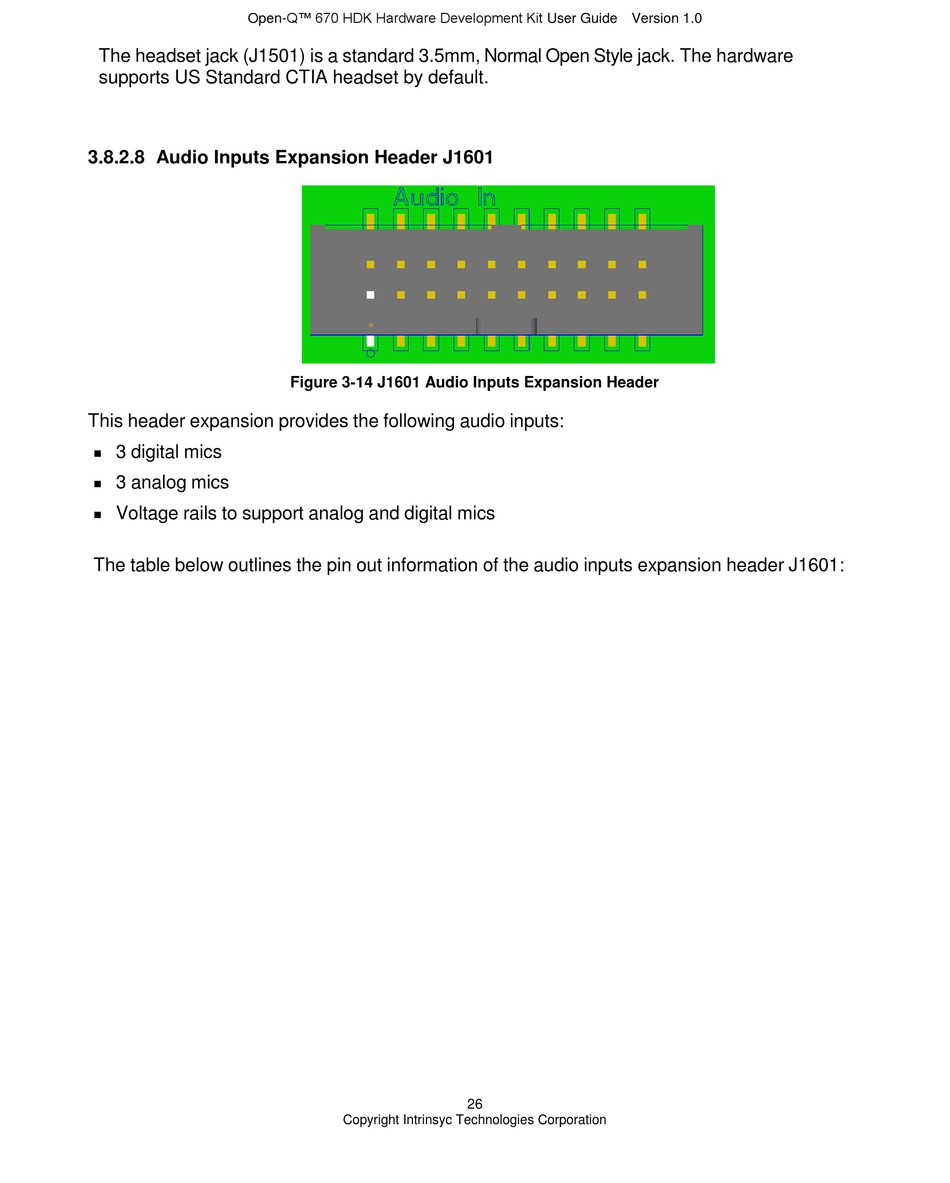

Figure 3-14 J1601 Audio Inputs Expansion Header
