Open-Q™ 670 HDK Hardware Development Kit User Guide Version 1.0

Table 3.8-11 GNSS Antenna Option

Option

On-Board

SMA connector

3.8.2.13 GNSS SMA Connector J3802

The GNSS SMA connector is reserved for user to use an external antenna. Refer to

Table 3.8-11, stuff R3804 and remove R3805 to make the path active.

The HDK development kit supports three 4-lane MIPI camera interfaces via a 120pin

connector, it also supports one 2-lane MIPI camera interface via a 23pin connector on

the processor card.

The following are some features of the camera connectors:

3 x 4 lane MIPI CSI signals, CSI0, CSI1 and CSI2

◼

Support for 3D camera configuration

◼

Separate I2C control (CCI0, CCI1)



Self-regulated camera modules can be powered with 3.3V power (MB_VREG_3P3)

◼

Uses Amphenol 11826-ACA connector for exposing MIPI, MCLK, CCI, GPIOs and

◼

Power rails.

Please use Amphenol 11828-1CA mating connector to access these signals.

◼

R3804

R3805

DNI

Stuff

DNI

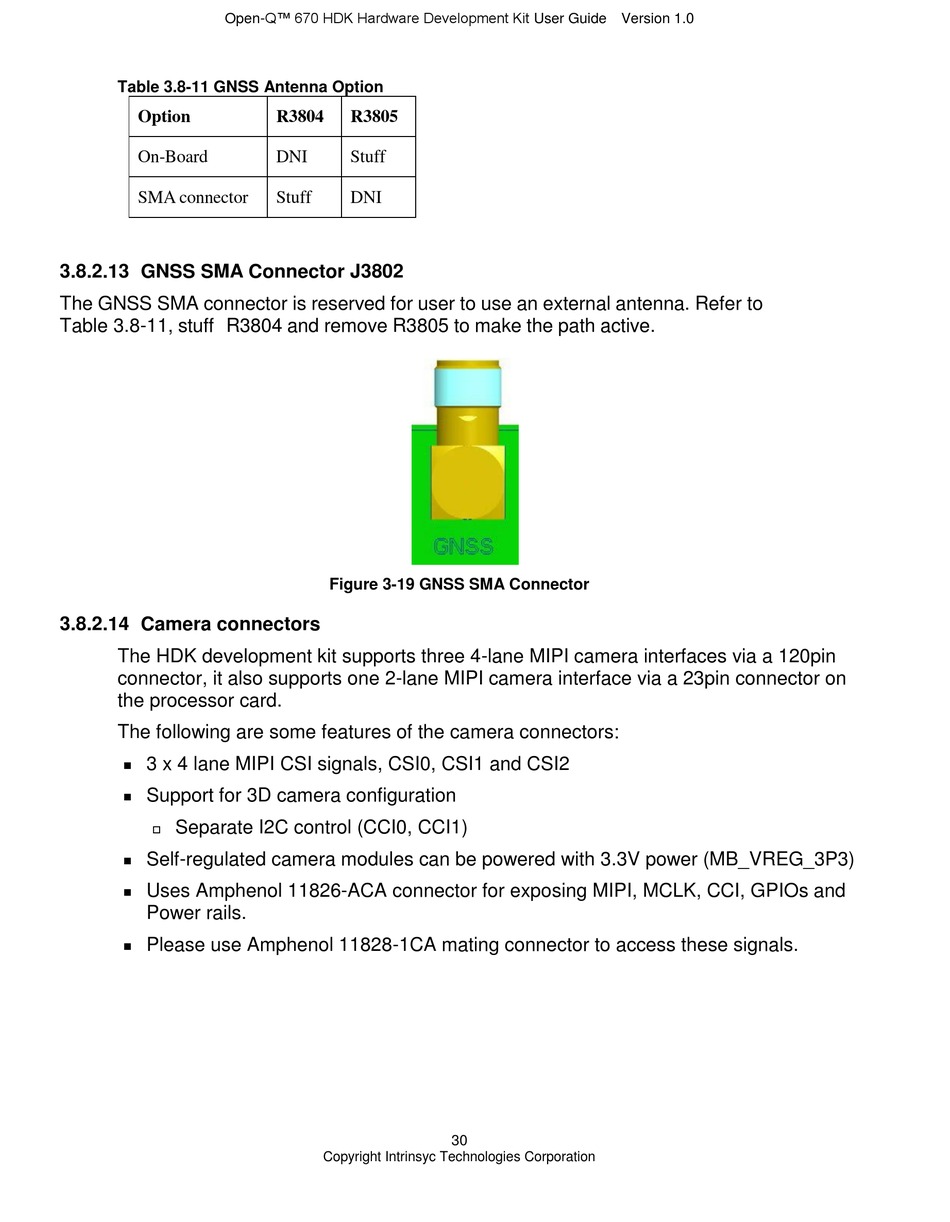

Figure 3-19 GNSS SMA Connector
