Open-Q™ 670 HDK Hardware Development Kit User Guide Version 1.0

3.7 Open-Q 670 HDK Processor Board

The Processor board provides the basic common set of features with minimal integration

efforts for end users. It contains the following:

• Snapdragon 670 (SDA670) main application processor

• Memory (eMCP/uMCP compatible design)

• eMCP: 64GB eMMC 5.1 + LPDDR4x up to 1866MHz 6GB

• PMIC: PM670 + PM670L – PMIC for Peripheral LDOs, Boost Regulators

• SMB1355 Parallel charger

• WCN3990 Atheros Wi-Fi + BT +FM combo chip over SLIMbus, Analog IQ,

UART, PCM

• WCD9341 Audio Code

• SDR660 GNSS support

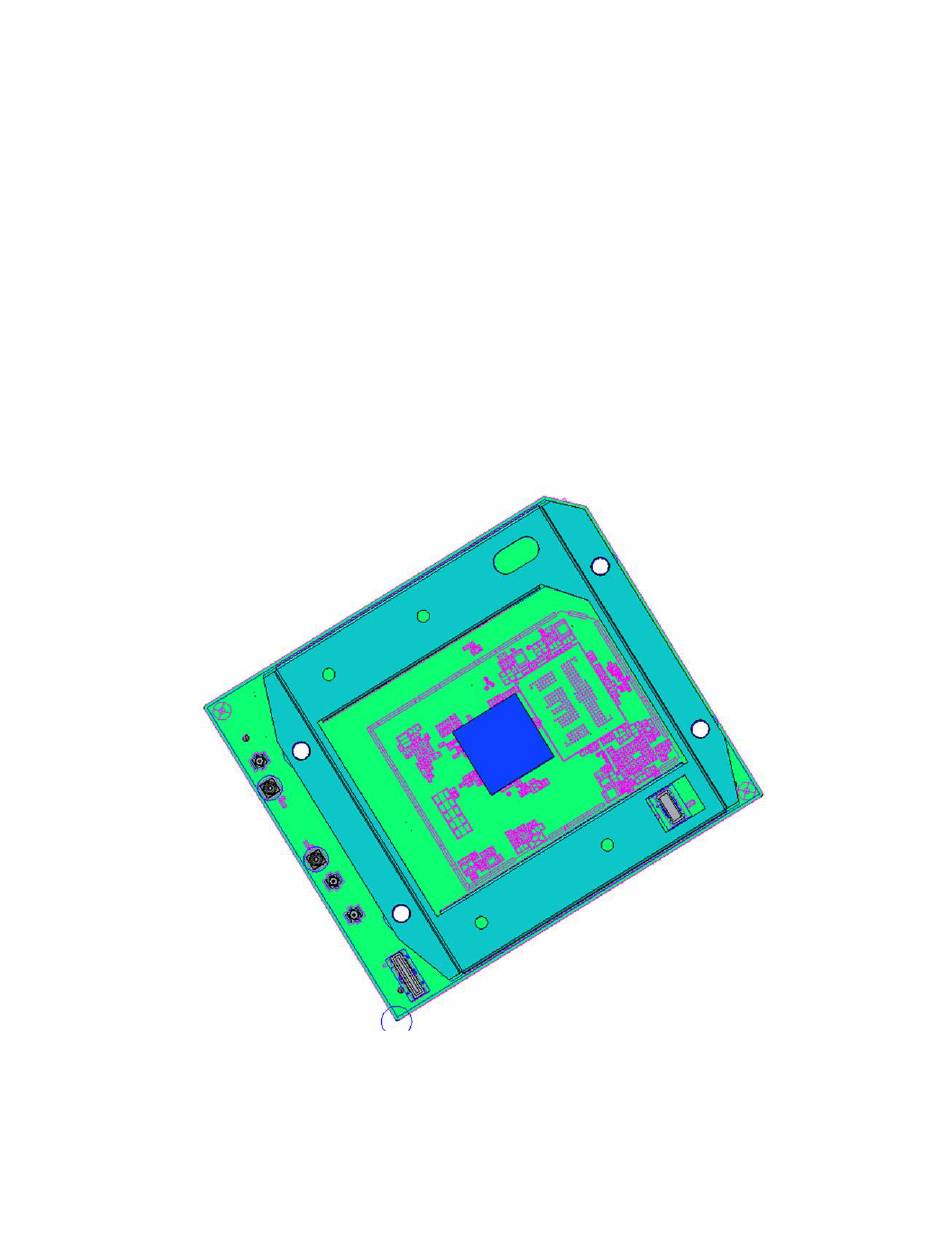

Figure 3-4 Open-Q 670 HDK PROCESSOR BOARD
