Open-Q™ 670 HDK Hardware Development Kit User Guide Version 1.0

3.8.3 Vertigo Sensor connector

The HDK development kit supports a 30-pin connector (449-53935-0030) to support

Vertigo 10 or follow on card.

Vertigo 10 sensor card is designed and managed by the Qualcomm sensor team.

The HDMI type A connector enables the HDK development platform to connect to an

external HDMI monitor/ television via an HDMI cable. The HDK supports HDMI output

up to 1920x1080. The LT9611 MIPI DSI to HDMI1.4 bridge IC itself features a

resolution up to 4K30Hz.

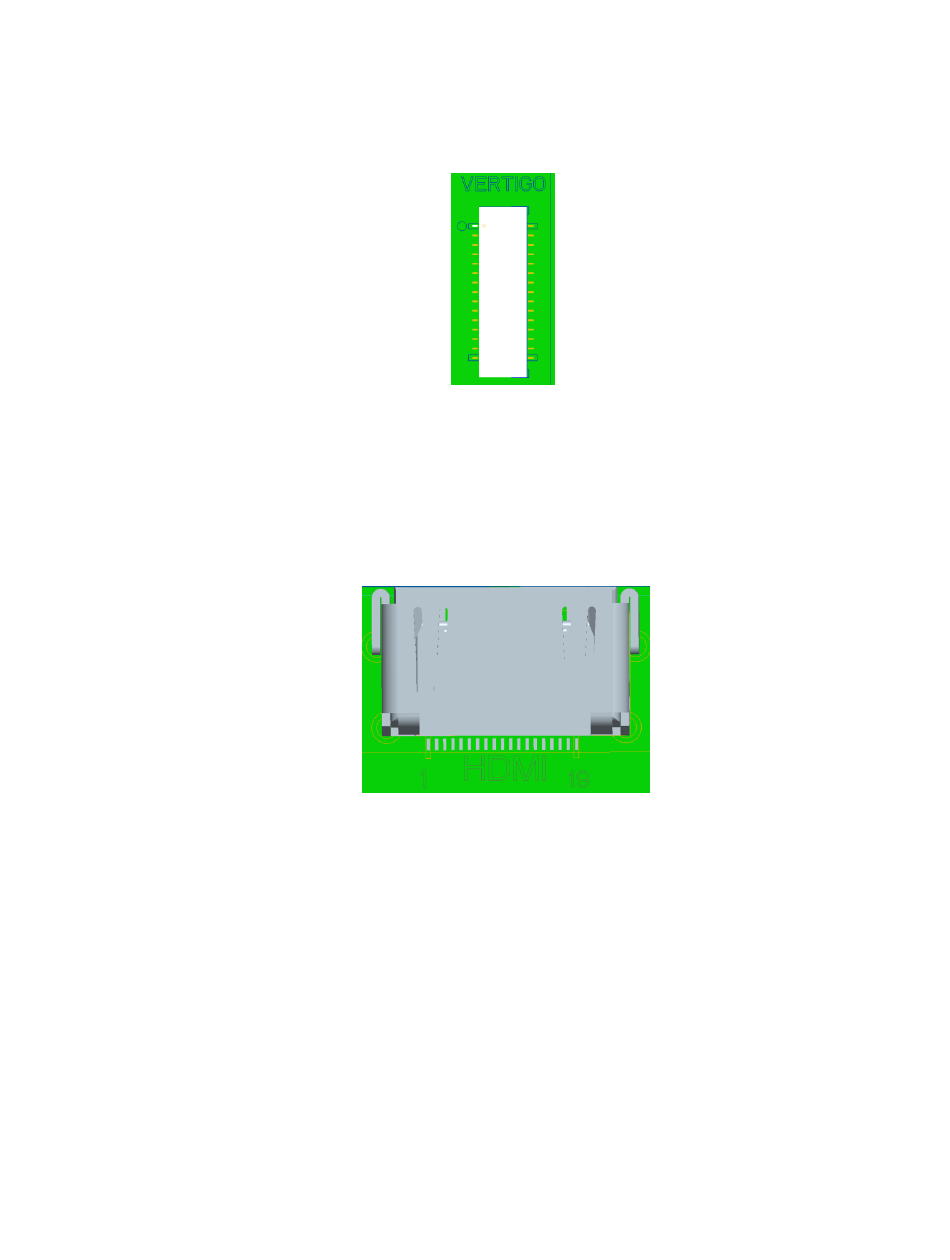

Figure 3-21 Vertigo Connector (J1701)

Figure 3-22 HDMI Connector (J1401)
