Open-Q™ 670 HDK Hardware Development Kit User Guide Version 1.0

3.8 Open-Q 670 HDK Carrier Board

The Open-Q 670 HDK Carrier board is a Mini-ITX form factor board with various connectors
used for connecting different peripherals. The following are the mechanical properties of the
carrier board:
Table 3.8-1 Open-Q 670 HDK Carrier Board Mechanical Properties
Dimensions 289 cm
Form Factor Mini-ITX
Major Carrier board: 2x240 pin board to board connector
Interfaces Display: 100 pin board to board connector
Thermal A thermal pad is placed between the processor board and the carrier board
2
(170mm x 170mm)

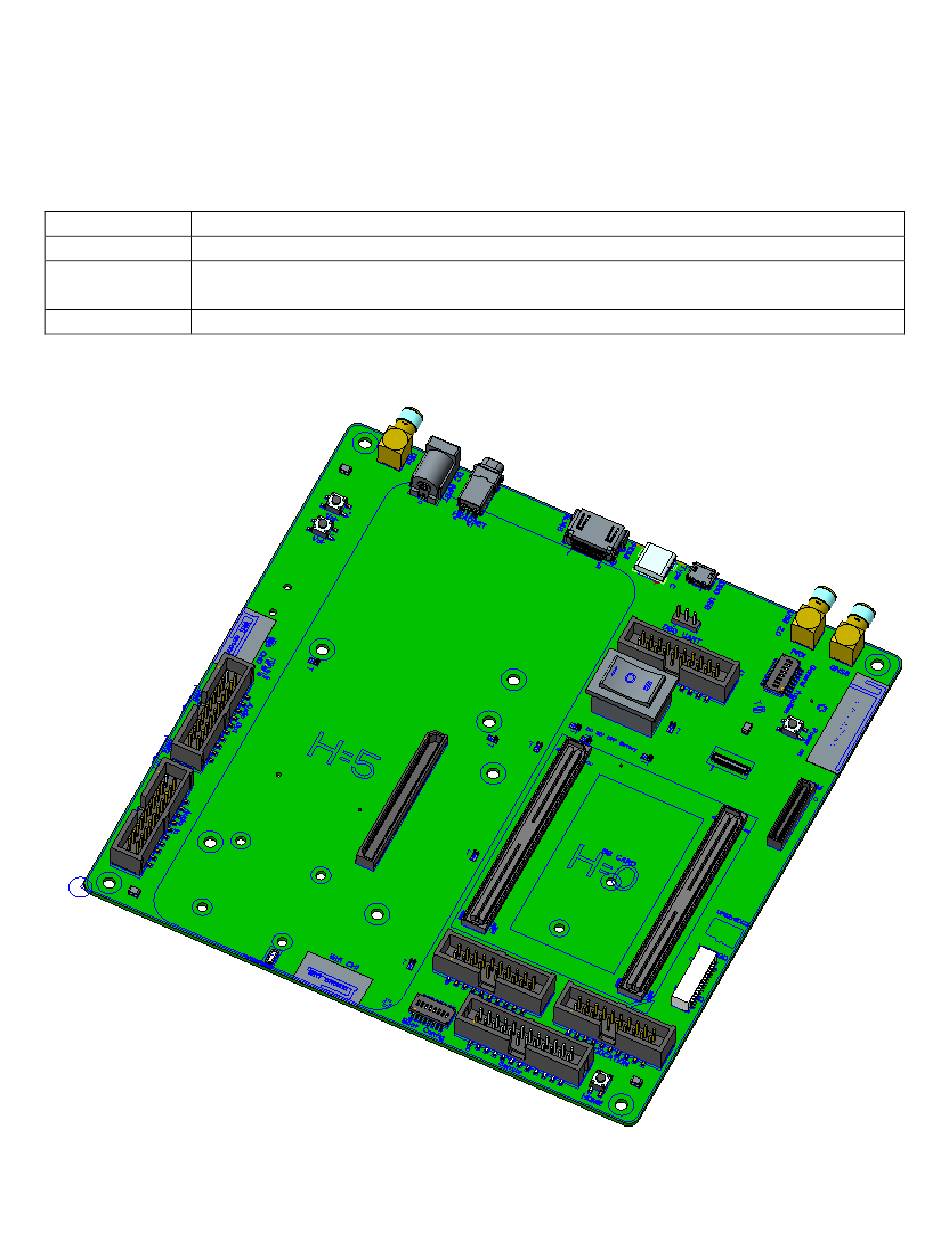

Figure 3-6 Open-Q 670 HDK Carrier Board
