5. Pull each LED Lamp straight toward you to release the lamp from the two
Spring Clips holding it in place (Fig. 6-5b). Note the rotational position of the
old LED lamps (there is a dead band stripe that will need to be oriented the
same when reinstalling the new LED Lamps).
6. Install the new LED Lamps by reversing the removal procedure. Take care to
look at both ends of the new LED Lamps. One end is labeled with a '+' and '-'
and 'L' and 'N' (Fig. 6-5c). This end of the new LED Lamp must go to the right,
and is inserted into the Socket Cap.
7. When reinstalling the Left End Cap, the pins on each LED Lamp must align
rotationally with the Left End Cap. This ensures the dead band stripe is
positioned correctly for maximum cabinet lighting.

Changing the Optional UV Lamp:

THE UV LAMP IN THIS PRODUCT CONTAINS MERCURY
Manage in accordance with local disposal laws. DO NOT place lamps in trash.
Dispose as a hazardous waste. For information regarding safe handling,
recycling and disposal, consult www.lamprecycle.org
CETTE LAMPE (UV) DANS CE PRODUIT CONTIENT DU MERCUE
Éliminez ou recyclez conformément aux lois applicables. Pour de l'information
concernant des pratiques de manipulation sécuritaires et l'élimination sécuritaire
et le recyclage, veuillez consulter www.lamprecycle.org
Note: For optimum performance, the UV lamp should be changed as indicated by
the UV lamp hourmeter.
6: Maintaining The Cabinet

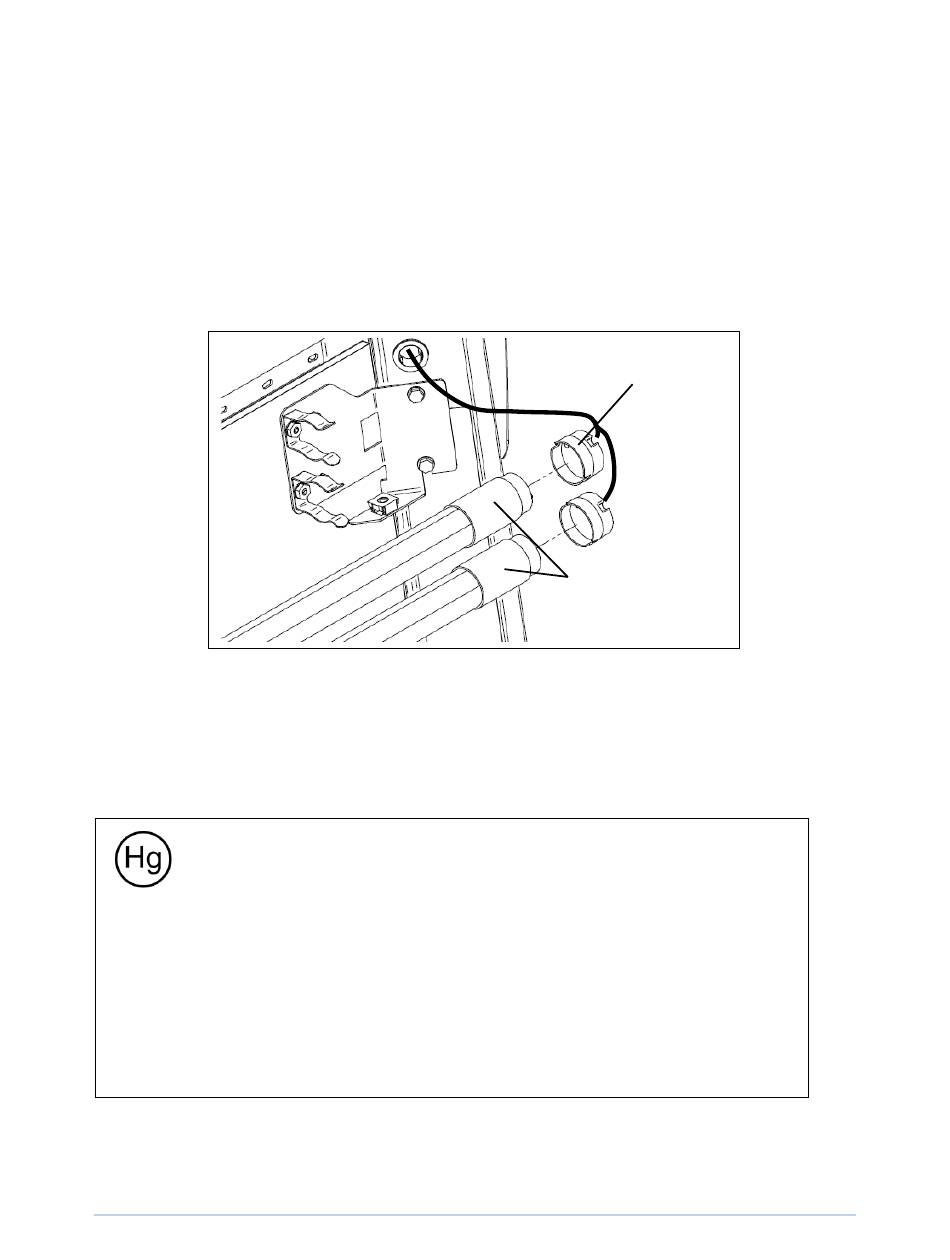

Figure 6-5c
Socket
Caps (2)
LED Lamp End
with markings:
L(+) and N(-)
53
