Towel Catch Removal - Labconco Logic+ 30348 Series User Manual

Towel Catch Removal:

Although not normally required, the towel catch can be removed for cleaning,
inspection, etc.
Note: The work surface of the cabinet and the towel catch must be thoroughly
decontaminated before removing either.
1. Remove the work surface as described above.
2. Remove the towel catch by pivoting the bottom out toward you, as shown in
Figure 6-2; it is spring loaded, and you will feel some resistance. Note the
orientation of the towel catch.
3. Surface decontaminate the towel catch before removing it.
4. Reinstall the towel catch by sliding it back into position, in the correct
orientation. Also ensure that the Sampling/Decontamination Tube (the black
tube with an orange cap) rests behind the towel catch, allowing the catch to
contact the rear wall of the cabinet.

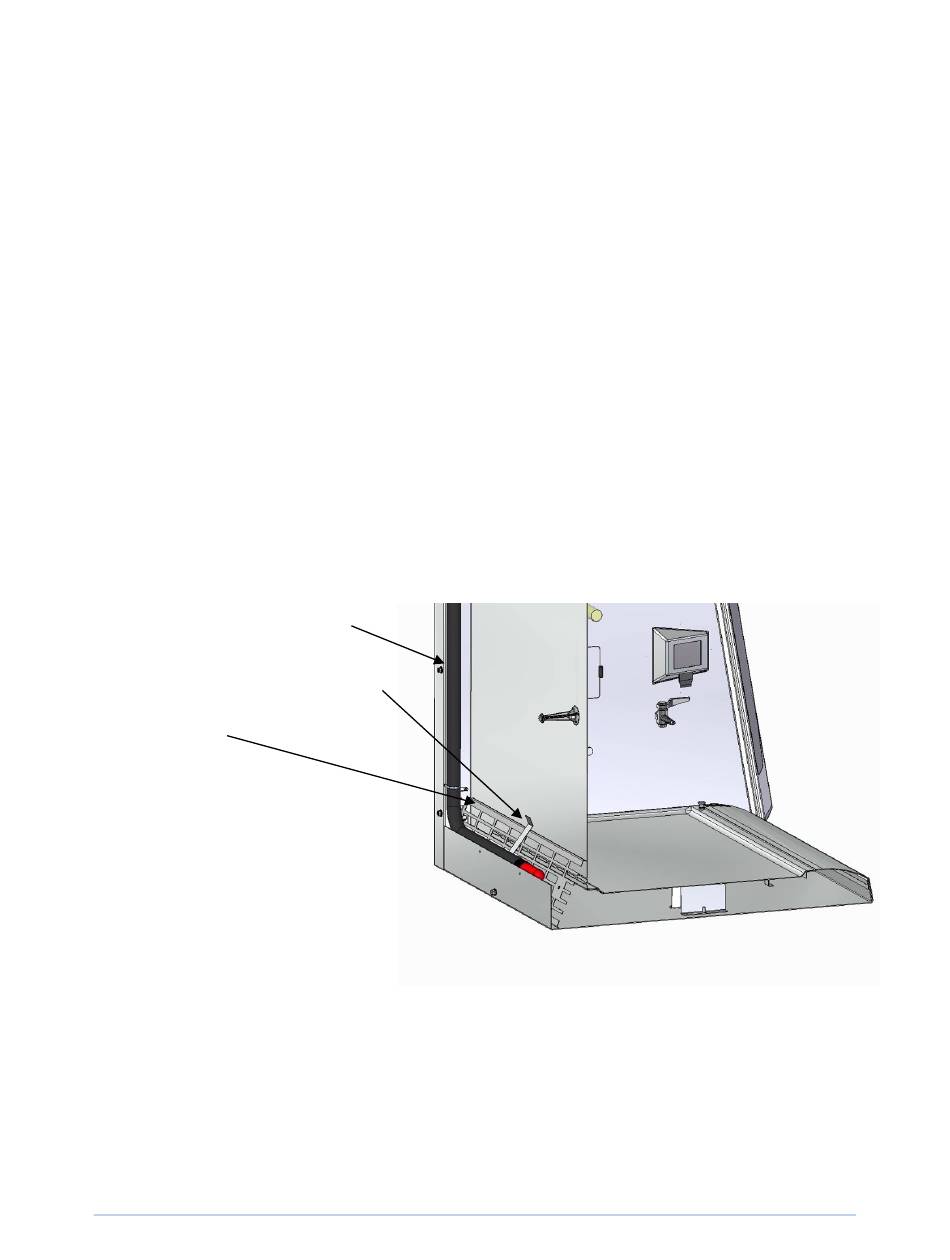

Sampling/Decontamination
Tube
Towel Catch Retaining Spring
Towel Catch
Note: Upper and lower towel
catch flanges point to the front
of the cabinet, and the bottom
of the towel catch rests against
the back wall.
6: Maintaining The Cabinet
Figure 6-2
50
