Service Operations

Work Surface Removal:

Note: The work surface must be thoroughly decontaminated before removing it
from the cabinet.
1. Lift the front edge of the work surface straight up by grasping the knob handles
at either front corner.
2. Pull the work surface straight out, letting its rear edge rest on the center
support underneath.
3. Reinstall the work surface by resting the bottom on the center rail while
pushing it back into the cabinet. Be sure to engage the tabs on the back
corners of the work surface with the slots on the rear wall of the work area.

Front Grille Removal:

Note: The grille must be thoroughly decontaminated before removing it.
1. Remove the work surface as described earlier.
2. At one end of the grille, grip the front of the grille with one hand, and the
back with the other hand. Pivot that end of the grille upward and inward,
paralleling the angle of the sash, as shown in Figure 6-1.
3. Pull the other end of the grille up and away from the bottom edge of the
cabinet.
4. Reinstall the grille by reversing the above sequence, ensuring that the grille
properly engages the bottom edge of the cabinet.
6: Maintaining The Cabinet

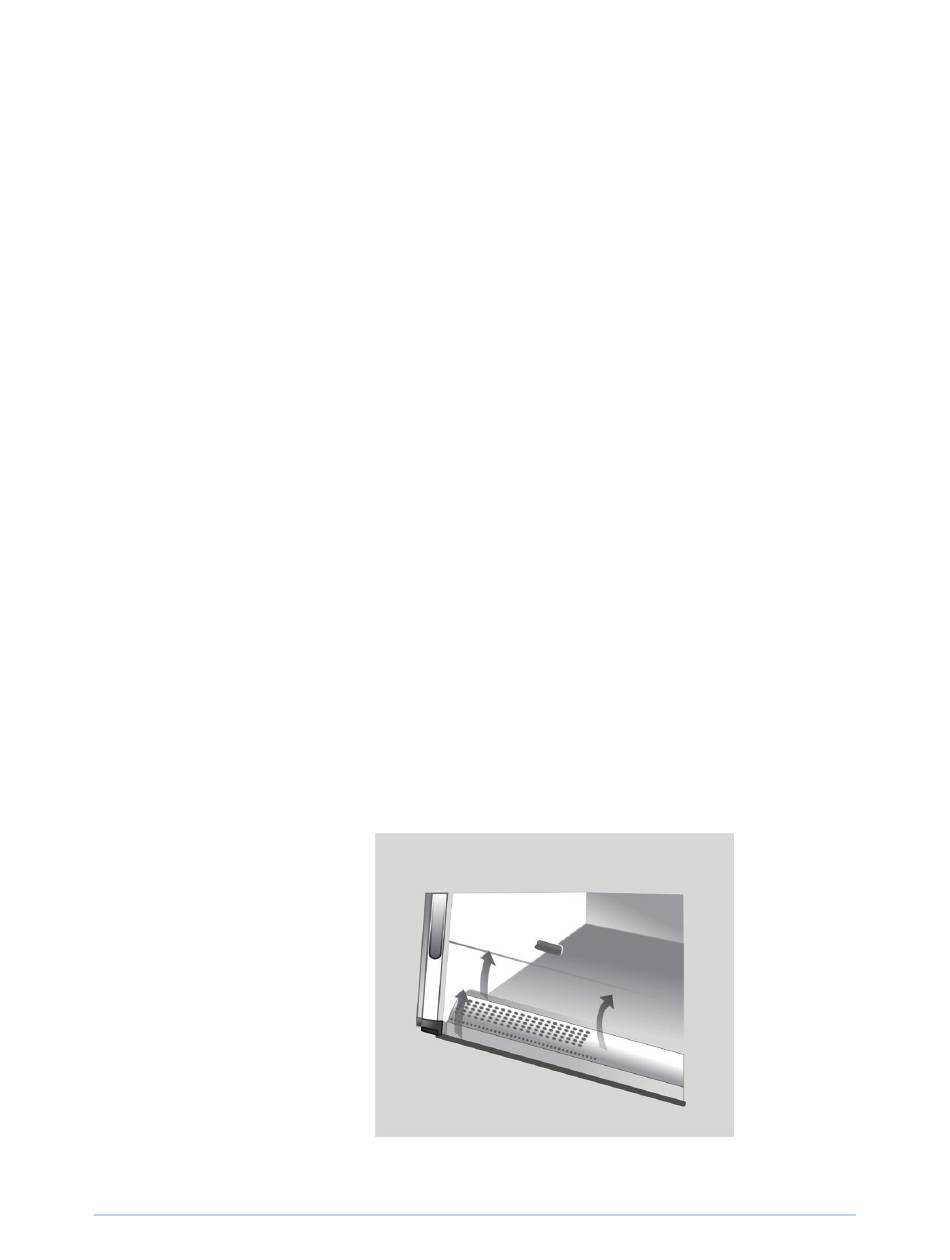

Figure 6-1
