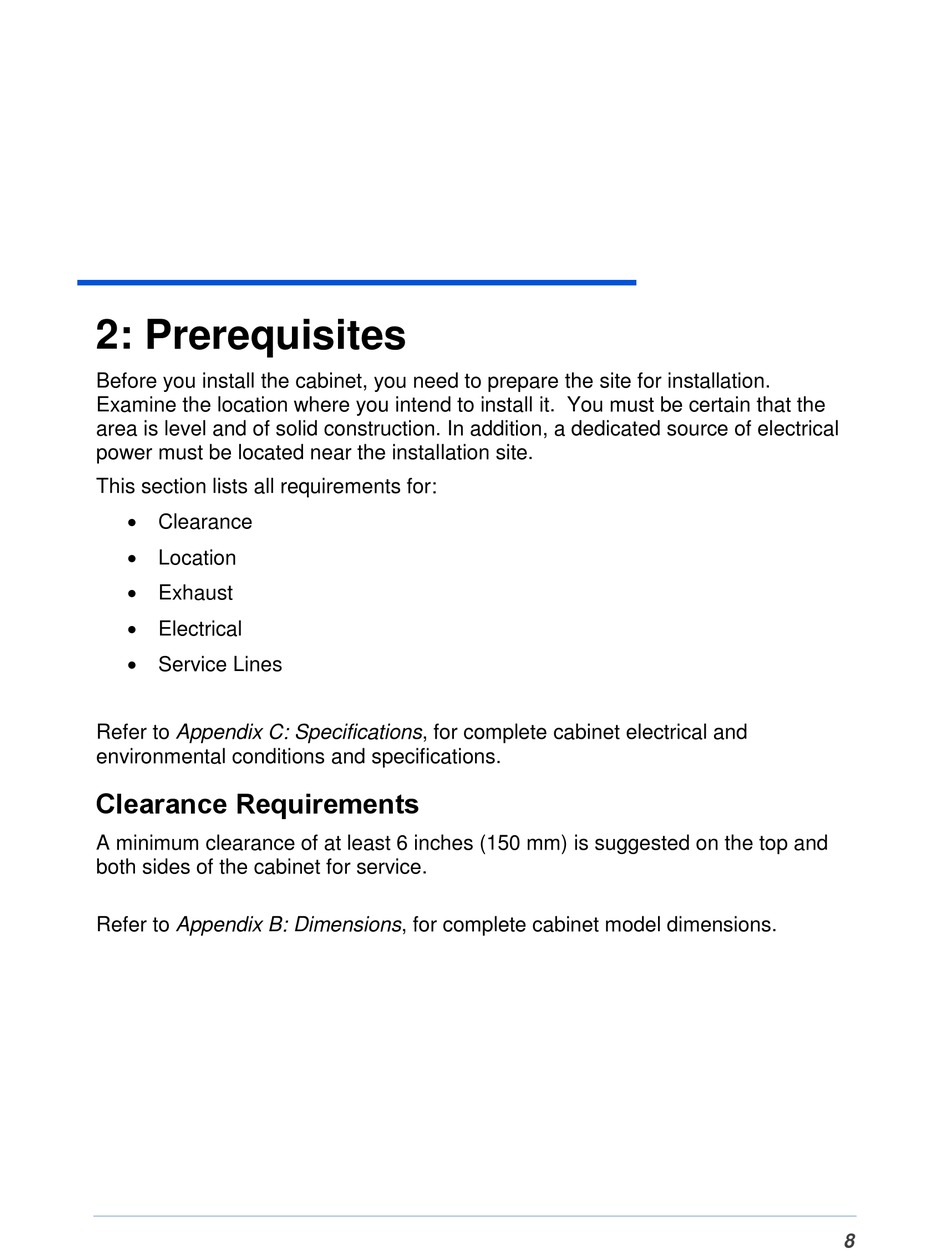

2: Prerequisites

Before you install the cabinet, you need to prepare the site for installation.
Examine the location where you intend to install it. You must be certain that the
area is level and of solid construction. In addition, a dedicated source of electrical
power must be located near the installation site.
This section lists all requirements for:
 Clearance
 Location
 Exhaust
 Electrical
 Service Lines
Refer to Appendix C: Specifications, for complete cabinet electrical and
environmental conditions and specifications.

Clearance Requirements

A minimum clearance of at least 6 inches (150 mm) is suggested on the top and
both sides of the cabinet for service.
Refer to Appendix B: Dimensions, for complete cabinet model dimensions.
8
