Unpacking the Cabinet

1. Carefully remove the outer carton and inspect the cabinet for damage that
may have occurred in transit. If the cabinet is damaged, notify the delivery
carrier immediately and retain the entire shipment intact for inspection by
the carrier.
Note: United States Interstate Commerce Commission rules require that claims be filed
with the delivery carrier within fifteen (15) days of delivery.
Do not return goods without the prior authorization of Labconco. Unauthorized returns will
not be accepted.
If the cabinet was damaged in transit, you must file a claim directly with the freight carrier.
Labconco Corporation and its dealers are not responsible for shipping damages.
Do not discard the carton or packing material for the cabinet until all of the components
have been checked, installed and tested.
2. The cabinet is secured to the pallet in two places on each side. To access
the nuts and bolts, remove the side panels by removing and keeping the
two Phillips screws from both panels. Swing the front of each panel away
from the cabinet, and lift it straight up to remove the panel from the cabinet.

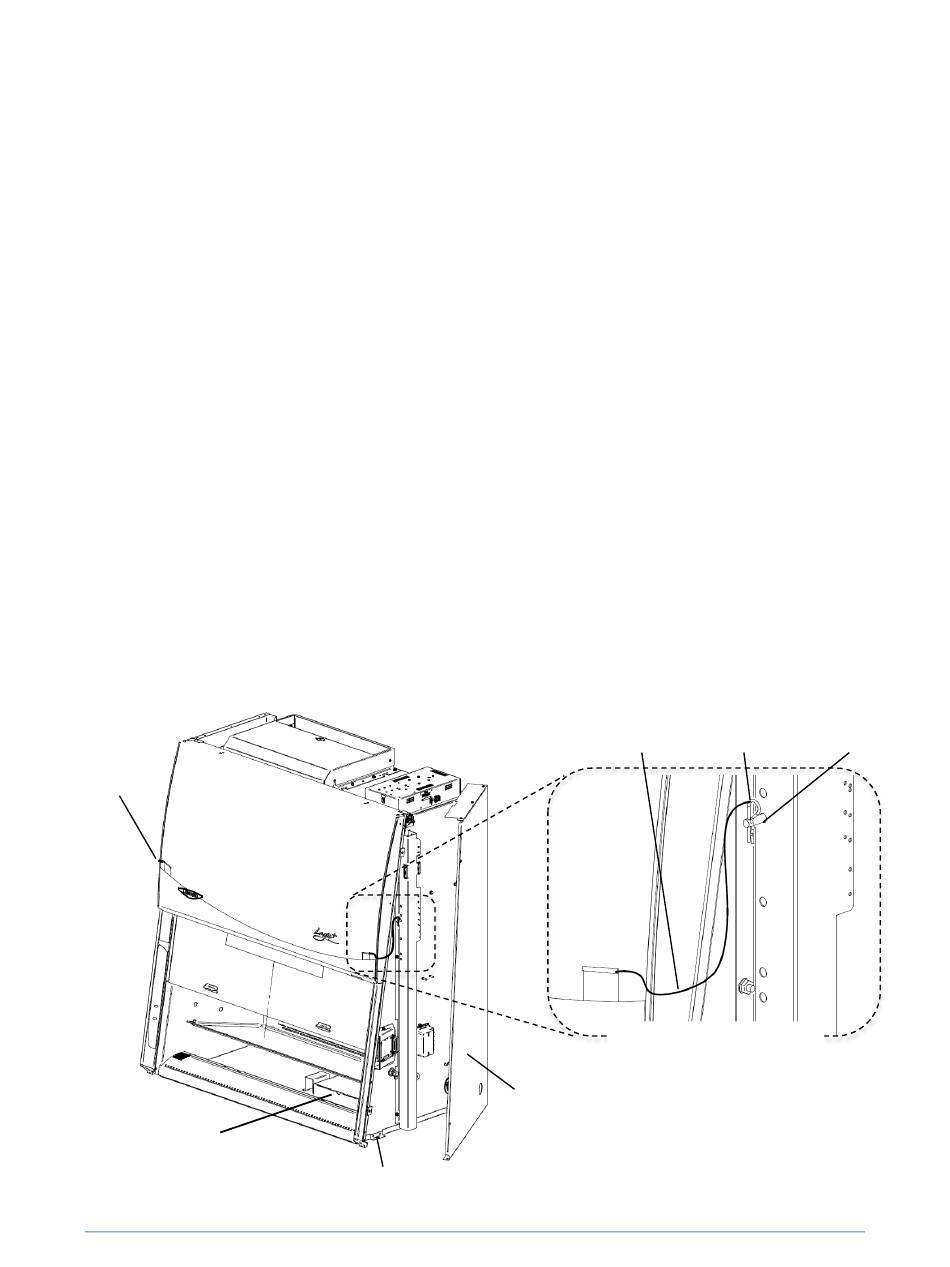

3. While the side panels are off, the sash weight support pins must be
removed. Follow the two yellow strings to the support pin and its clevis pin.
Remove the clevis pins, and pull the support pins straight back. Discard the
pins and yellow string. See Fig. 3-1 below.
Yellow String (to
Left End Pins)
Product illustration
may not accurately
represent all models
Parts Box
(ref Fig. 3-2)
3: Getting Started
Figure 3-1
Shipping Bolts (2 per end)
Yellow
String
Same on opposite end!
Note: The side panels must be removed
to access the fasteners that secure the
cabinet to the pallet. DO NOT ATTEMPT
TO LIFT THE CABINET BY THE SIDE
PANELS; DAMAGE WILL OCCUR.
Support
Clevis Pin
Pin
