Operating the Sliding Sash

The counterbalanced, anti-racking sash mechanism requires only a few pounds of
force to move the sash up or down. You can open or close the sash smoothly with
one or two hands positioned on either handle.
The sash position alarm and safety interlock system senses the sash position and
acts appropriately. The cabinet has been programmed to operate at either an 8- or
10-inch (203-254 mm) sash opening, depending on the model. Raising the sash
above or below its operating height will activate the audible and visual alarms. The
audible alarm can be temporarily muted for approximately five minutes by pressing
the [OK/MUTE] button on the Keypad. Moving the sash back to its operating
position will reset the alarm. The safety interlock system senses when the sash is
closed and allows the optional ultraviolet (UV) lamp to operate only when the sash
is closed, to protect the operator from irradiation.

Starting the Cabinet

1. To start the cabinet, raise the sash until its bottom edge aligns with the sash
position label on the left corner post. The decal is shown in Figure 5-5.
2. Press [BLOWER]
start the cabinet. The unit will display a standby screen for approximately 30
seconds to allow the cabinet to reach proper operating conditions. If the
alarm sounds, recheck the sash position. If the sash is too high or low, the
sash audible alarm and the LCD display will indicate the sash is in an
incorrect position.
3. To turn the UV light on, the sash must be completely closed to prevent the
escape of any UV radiation. Press
the UV light.
Note: The sash must be completely closed for the UV light to activate.
5: Using The Cabinet
on the Keypad (see Fig. 5-6 on the following page) to
[UV LIGHT]

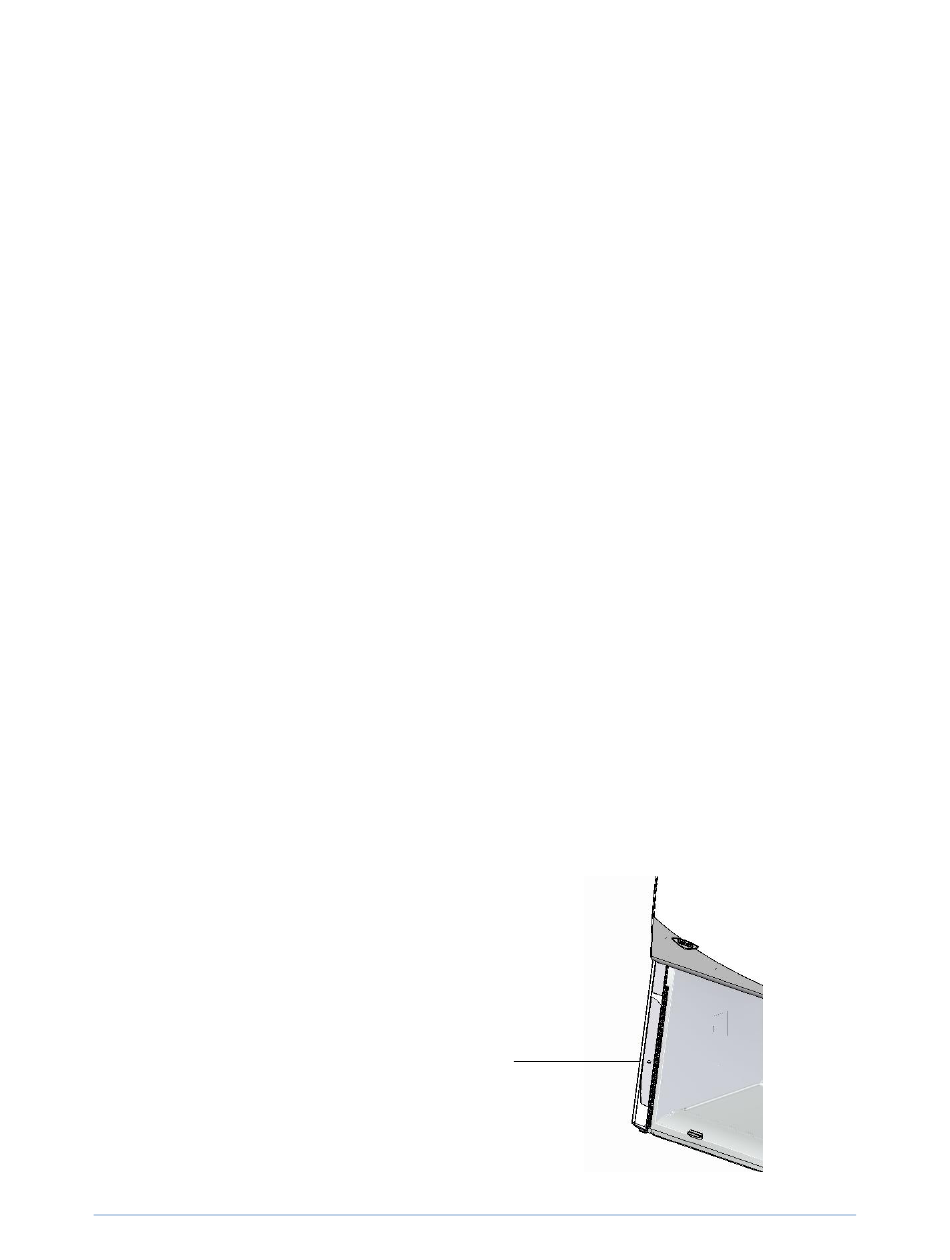

Sash Position Label
on the Keypad to activate
Figure 5-5
