Using the Optional Vacu-Pass
There must be enough clearance to pass the cord or cable between the cabinet's
exterior dress panel and any obstruction.
Note: Some Vacu-Pass components and the cord or cable passing through it may
become contaminated during use of the cabinet. Ensure all potentially
contaminated components are surface decontaminated before handling or removal
from the cabinet.
1. Remove the grommet from the liner sidewall. Remove the solid sealing plug
from the body of the portal by either pressing it through from the outside, or by
carefully inserting a spatula or similar device between the sealing plug and the
body of the portal, and prying the plug out.
2. Locate the pass-thru universal sealing plug, which is included in the parts box
located underneath the work surface during shipment.
3. Pass the cord or cable through the body of the portal, and then through one of
the holes in the pass-thru universal sealing plug, then through the grommet, as
shown in Figure 3-2.
Note: select a hole in the sealing plug that is slightly smaller than the cord or
cable, to create a proper seal. This will also help minimize movement of the cord
or cable if it is accidentally pulled during use.
4. Position the cord or cable as it will be used in the cabinet, and then push the
plug back into the body of the portal until it seats in the portal. Reinstall the
grommet.
3: Getting Started
TM Cord & Cable Portal

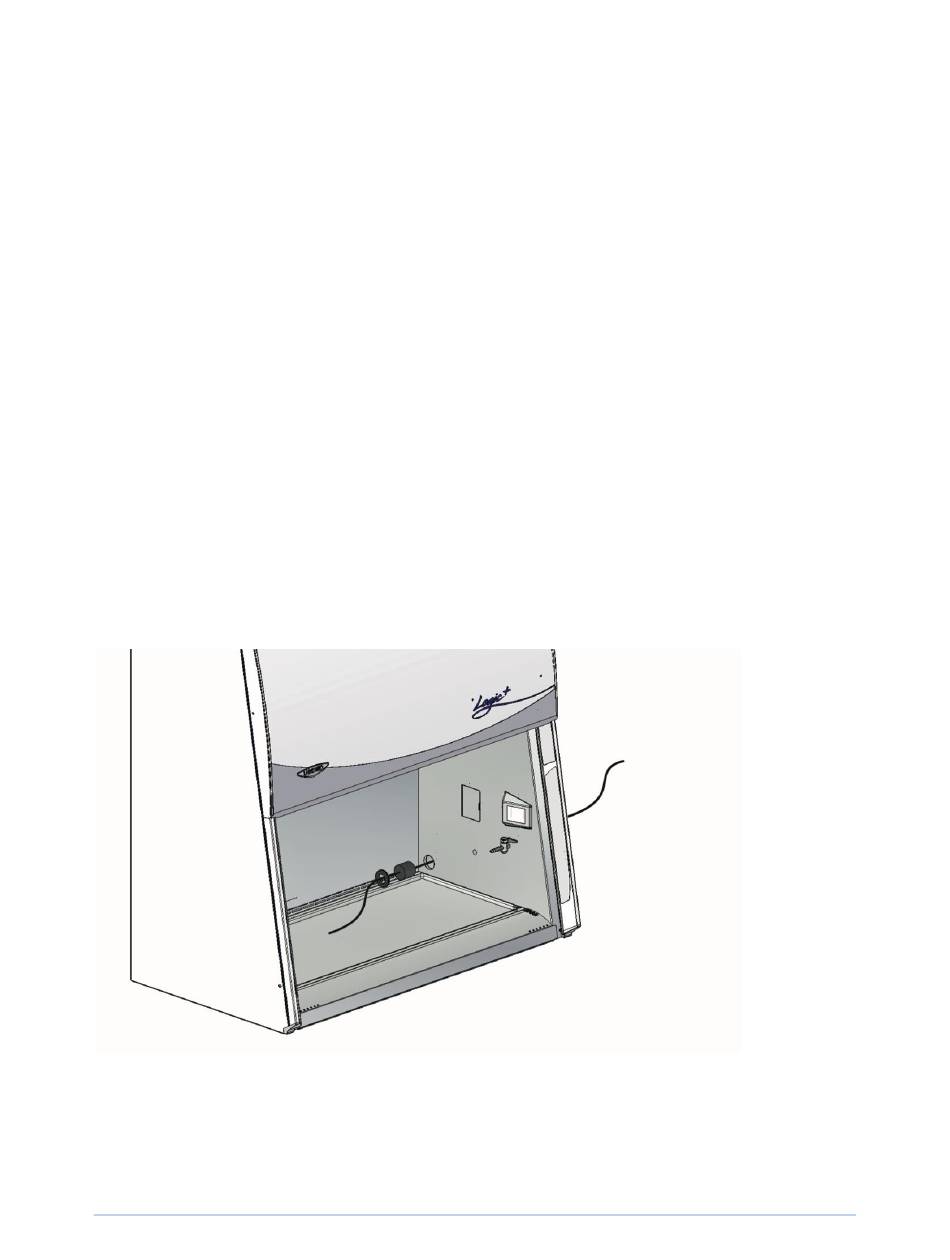

Figure 3-2
