ELECTRICAL SAFETY

4.3

Performing Tests

4.3.1

General Information

Connect the measurement tip of your measuring device with the conductive parts shown in the

table below and measure the resistance.

If a test does not pass, device must be repaired by Brainlab support. After repair, repeat the

entire electrical safety test from the beginning.

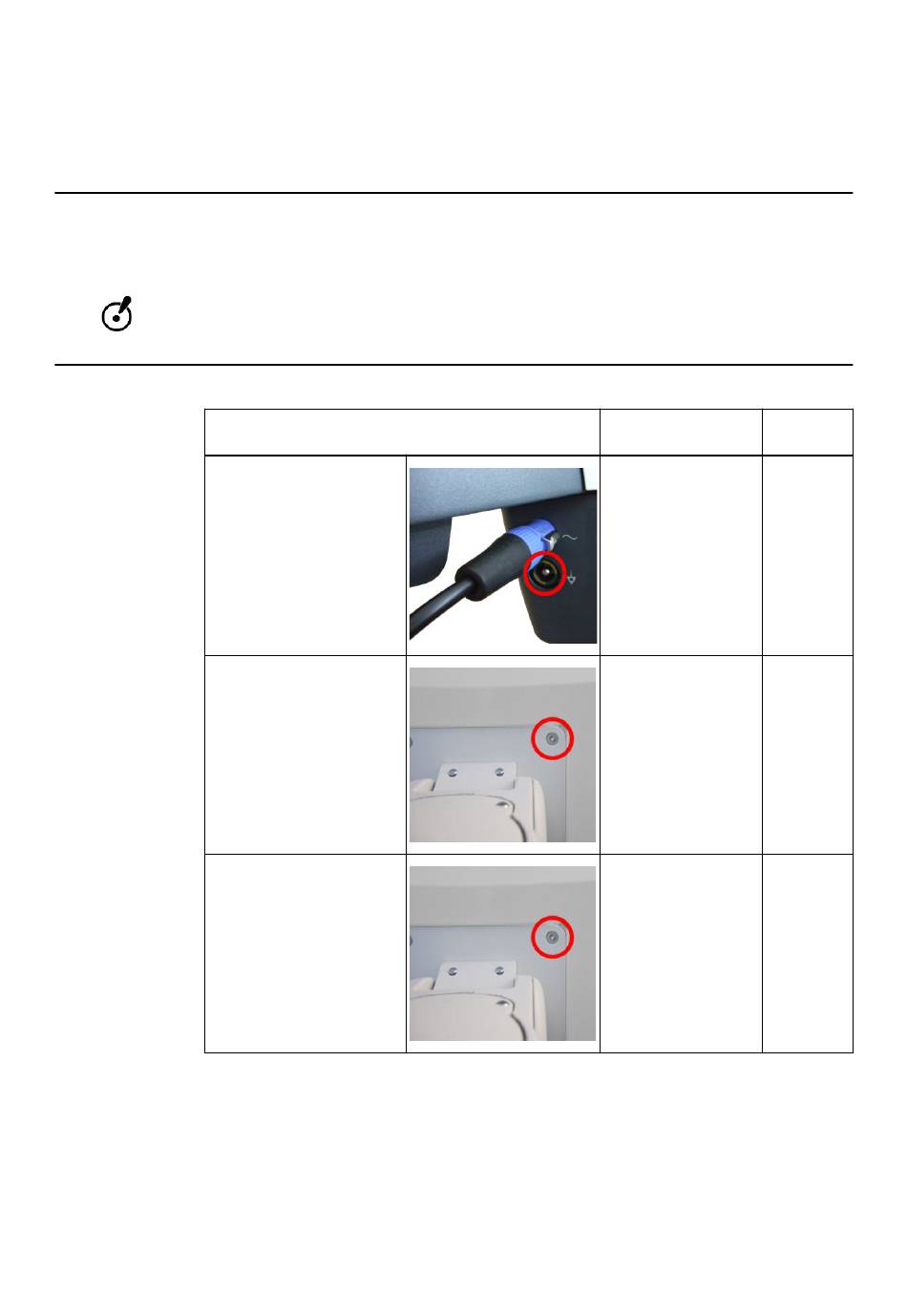

Potential Equalization/ Functional Earth

Point Tested

Potential equalization port

Display fixation screw

Second display fixation

screw ( Curve Dual Display

only)

Technical User Guide Rev. 1.2 Curve Dual Display, Curve Single Display Ver. 1.0

Measured Value

Test

Passed?
