SYSTEM OVERVIEW
2.2.2

3rd-Party Connections

General Information
The 3rd-party equipment connections are located on the connection panel.
Adhere to the IEC 60601-1-1 regulations when connecting 3rd-party devices.

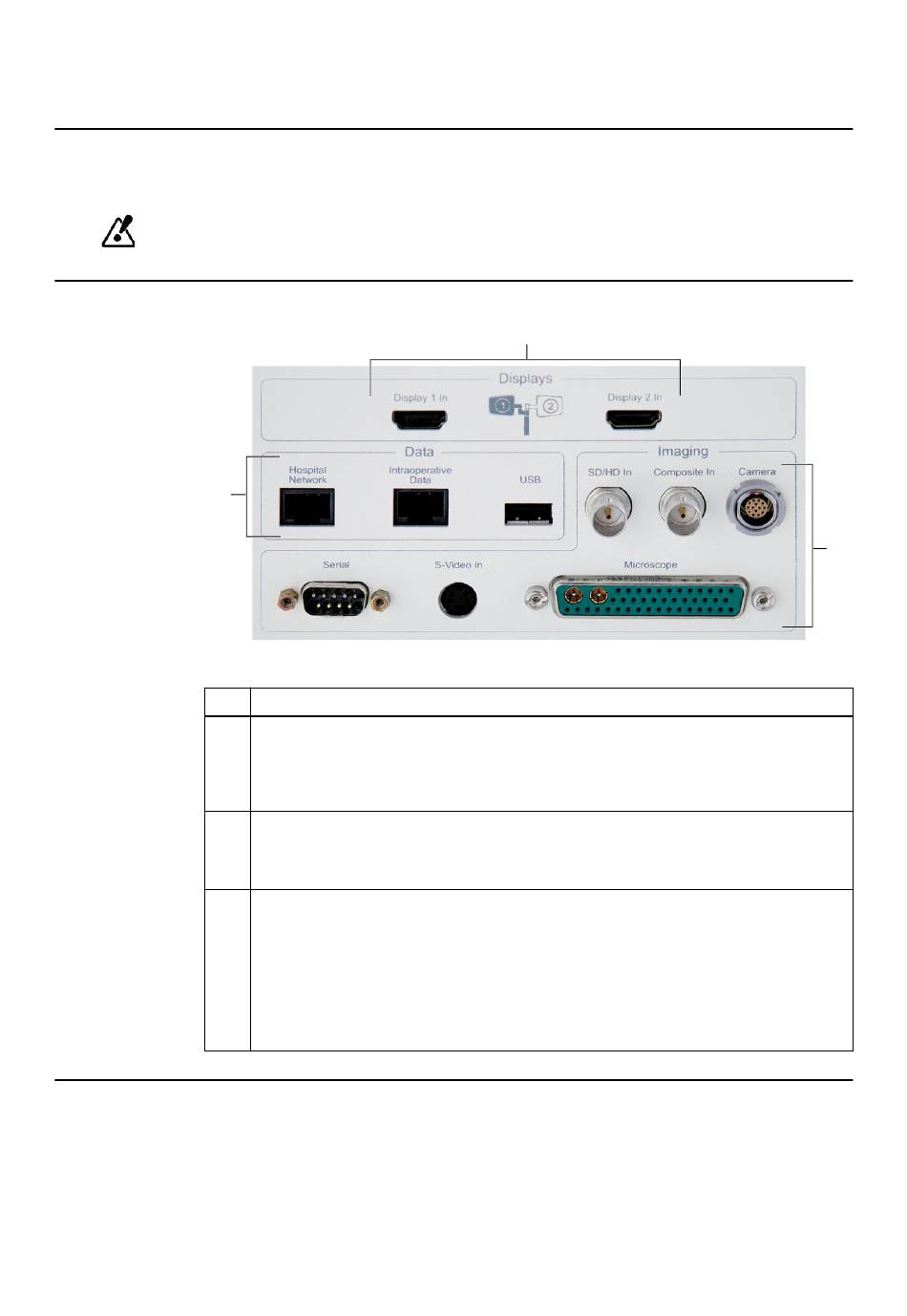

Connection Panel
①
No.
①
②
③
WLAN (Curve Dual Display only)
• The WLAN transmitter uses a frequency band for sending and receiving between 2,400 and
2,485 GHz with 19.8 dBm effective isotropic radiated power (EIRP).
• The device is configured to use channel 1 to 11 (each with a channel space of 22 MHz). This
setting matches the regulatory requirements for USA, Canada, Japan, Europe, Australia, Hong
Kong and New Zealand. Contact Brainlab support or an authorized partner in case of
questions.
Technical User Guide Rev. 1.2 Curve Dual Display, Curve Single Display Ver. 1.0
Component
Data ports:
• Hospital Network
• Intraoperative Data
• USB
Display 1 and 2 In
NOTE: Icon between the ports indicates which is Display 1 and which is Display 2. Dis-
play 2 port is covered on the Curve Single Display system.
Imaging ports:
• SD/HD In
• Composite In
• Camera
• Serial
• S-Video In
• Microscope
②
Figure 5
③
