2.4
Top and Bottom Views
2.4.1
Top View

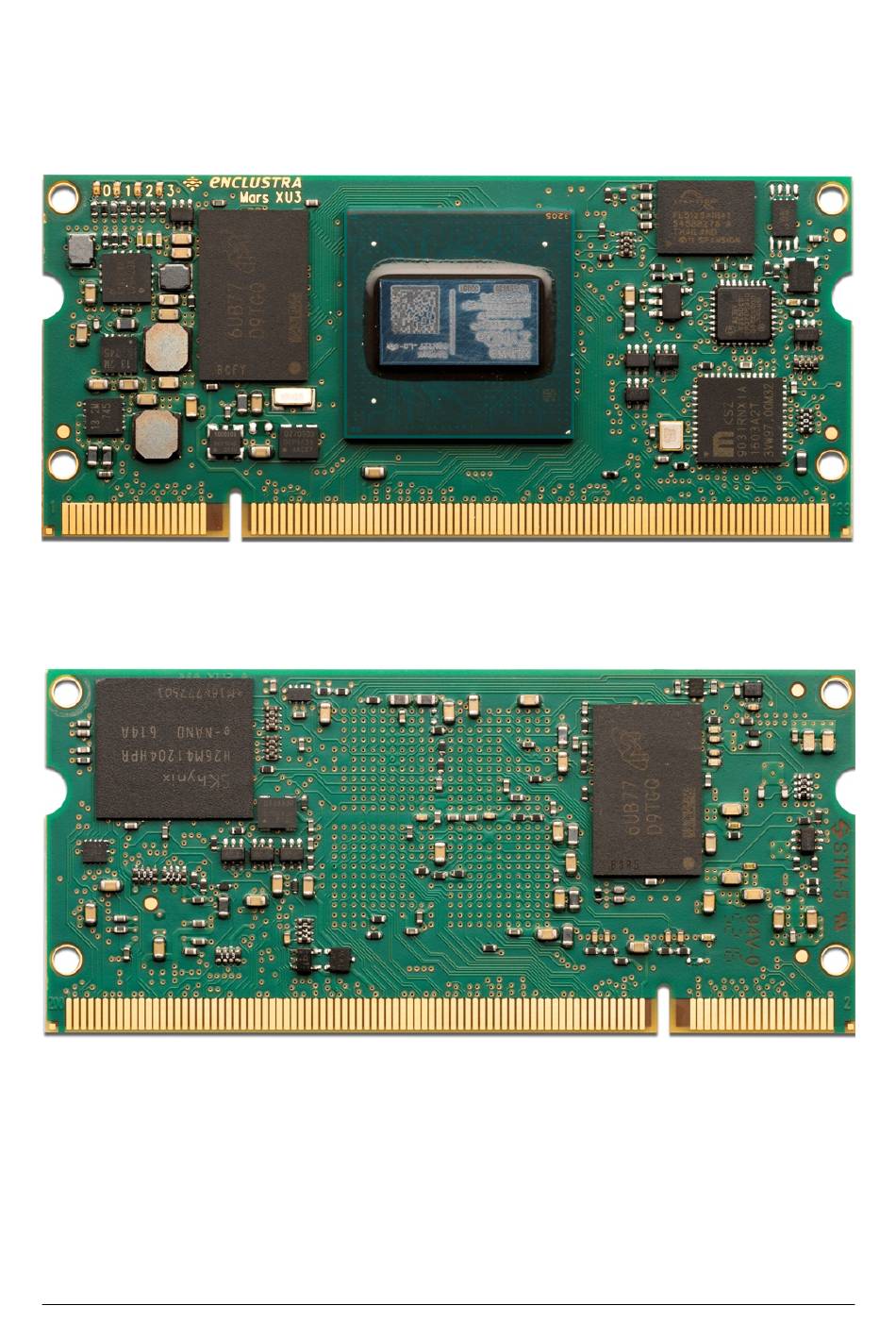

Figure 4: Module Top View
2.4.2
Bottom View
Figure 5: Module Bottom View
Please note that depending on the hardware revision and configuration, the module may look slightly dif-
ferent than shown in this document.
D-0000-432-001
13 / 52
Version 04, 25.07.2019
