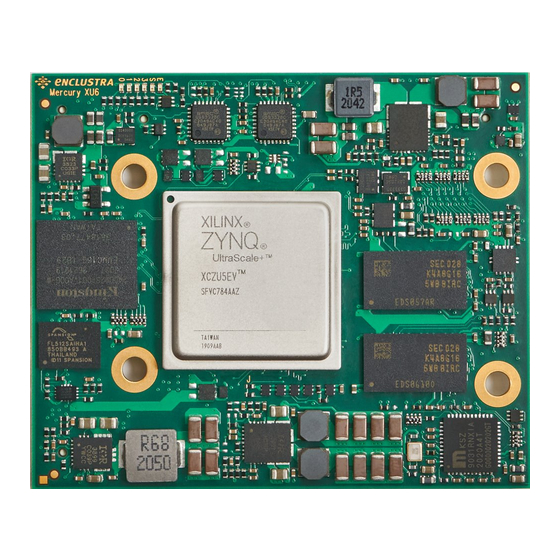

Mercury+ XU6 SoC Module
Purpose
The purpose of this document is to present the characteristics of Mercury+ XU6 SoC module to the user,
and to provide the user with a comprehensive guide to understanding and using the Mercury+ XU6 SoC
module.
Summary
This document first gives an overview of the Mercury+ XU6 SoC module followed by a detailed description
of its features and configuration options. In addition, references to other useful documents are included.
Product Information
Product
Document Information
Reference / Version / Date
Approval Information
Written by
Verified by
Approved by
User Manual
Code
ME-XU6
Reference
D-0000-464-001
Name
RLOC
DIUN, ARUD
DIUN
Enclustra GmbH – Räffelstrasse 28 – CH-8045 Zürich – Switzerland
Name
Mercury+ XU6 SoC Module
Version
02
Position
Design Engineer
Design Expert
Manager, BU SP
Phone +41 43 343 39 43 – www.enclustra.com
Date
21.07.2021
Date
23.11.2020
04.02.2021
21.07.2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mercury+ XU6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Enclustra Mercury+ XU6

Summary of Contents for Enclustra Mercury+ XU6

  • Page 1 Mercury+ XU6 SoC Module User Manual Purpose The purpose of this document is to present the characteristics of Mercury+ XU6 SoC module to the user, and to provide the user with a comprehensive guide to understanding and using the Mercury+ XU6 SoC module.
  • Page 2 Unauthorized duplication of this document, in whole or in part, by any means is prohibited without the prior written permission of Enclustra GmbH, Switzerland. Although Enclustra GmbH believes that the information included in this publication is correct as of the date of publication, Enclustra GmbH reserves the right to make changes at any time without notice.

  • Page 3: Table Of Contents

    Enclustra Build Environment ........
  • Page 4 3.12 Enclustra Module Configuration Tool ........48 I2C Communication Overview .
  • Page 5 Ordering and Support Ordering ..........55 Support .

  • Page 6: Overview

    The Enclustra Build Environment [14] is available for the Mercury+ XU6 SoC module. This build system allows the user to quickly set up and run Linux on any Enclustra SoC module. It allows the user to choose the desired target and download all the required binaries, such as bitstream and FSBL (First Stage Boot Loader).

  • Page 7: Electrostatic Discharge

    Warning! It is possible to mount the Mercury+ XU6 SoC module the wrong way round on the base board - always check that the mounting holes on the base board are aligned with the mounting holes of the Mercury+ XU6 SoC module.

  • Page 8: Deliverables

    Enclustra Build Environment The Enclustra Build Environment (EBE) [14] enables the user to quickly set up and run Linux on any Enclustra SoC module or system board. It allows the user to choose the desired target, and download all the required binaries, such as bitstream and FSBL.

  • Page 9: Enclustra Heat Sink

    The Enclustra Build Environment features a graphical user interface (GUI) and a command line interface (CLI) that facilitates the automatic build flow. The Enclustra Build Environment How-To Guide [15] describes in more detail how to use the EBE to customize the provided software for the user application. The document provides information on the configuration options for U-boot, Linux kernel and Buildroot, debugging possibilities for Linux applications, customization of device trees and integration of existing or new kernel drivers.

  • Page 10: Xilinx Tool Support

    Please note that the available features depend on the equipped Mercury module type. Xilinx Tool Support The MPSoC devices equipped on the Mercury+ XU6 SoC module are supported by the Vivado HL WebPACK Edition software, which is available free of charge. Please contact Xilinx for further information.

  • Page 11: Module Description

    Figure 1: Hardware Block Diagram The main component of the Mercury+ XU6 SoC module is the Xilinx Zynq Ultrascale+ MPSoC device. Most of its I/O pins are connected to the Mercury+ module connector, making up to 254 regular user I/Os avail- able to the user.

  • Page 12: Module Configuration And Product Models

    Mercury module connectors to supply circuits on the base board. Six LEDs are connected to the MPSoC pins for status signaling. Module Configuration and Product Models Table 1 describes the available standard module configurations. Custom configurations are available; please contact Enclustra for further information. Product Model MPSoC DDR4 (PS)

  • Page 13: Numbers And Part Names

    The correspondence between EN-number and part name is shown in Table 2. The part name represents the product model, followed by the revision; the R suffix and number represent the revision number. The revision changes and product known issues are described in the Mercury+ XU6 SoC Module Known Issues and Changes document [6].
  • Page 14 EN-Number Part Name EN102956 ME-XU6-2CG-1E-D10H-R1.0 EN102958 ME-XU6-2EG-1I-D13E-R1.0 EN102955 ME-XU6-3EG-2I-D11-R1.0 EN102957 ME-XU6-4CG-1E-D12-R1.0 EN102959 ME-XU6-4EV-1I-D12-R1.0 EN102954 ME-XU6-5EV-2I-D12E-R1.0 Table 2: EN-Numbers and Part Names D-0000-464-001 14 / 58 Version 02, 21.07.2021...

  • Page 15: Top And Bottom Views

    Top and Bottom Views 2.4.1 Top View Figure 4: Module Top View 2.4.2 Bottom View Figure 5: Module Bottom View Please note that depending on the hardware revision and configuration, the module may look slightly dif- ferent than shown in this document. D-0000-464-001 15 / 58 Version 02, 21.07.2021...

  • Page 16: Top And Bottom Assembly Drawings

    Top and Bottom Assembly Drawings 2.5.1 Top Assembly Drawing C1625 C1626 D300 D302 D301 D303 D305D304 C1621 R1413 R1414 L1601 L1602 R1411 R1412 C1622 R1405 U301 R1416 R1209 C747 R1410 C744 R1210 C1402 C1405 C1615 U1601 C1618 R1802 R1800 C1617 C1403 Y1206 C1614...

  • Page 17: Module Footprint

    Figure 8: Module Footprint - Top View Warning! It is possible to mount the Mercury+ XU6 SoC module the wrong way round on the base board - always check that the mounting holes on the base board are aligned with the mounting holes of the Mercury+ XU6 SoC module.

  • Page 18: Module Connector

    Symbol Value Size 54 mm Component height top 3.32 mm Component height bottom 1.35 mm Weight 28 g Table 3: Mechanical Data Module Connector Three Hirose FX10 168-pin 0.5 mm pitch headers with a total of 504 pins have to be integrated on the base board.

  • Page 19: User I/O

    User I/O 2.9.1 Pinout Information on the Mercury+ XU6 SoC module pinout can be found in the Enclustra Mercury Master Pinout [11], and in the additional document Enclustra Module Pin Connection Guidelines [10]. Warning! Please note that the pin types on the schematics symbol of the module connector and in the Master Pinout document are for reference only.

  • Page 20: I/O Pin Exceptions

    Table 5 includes information related to the total number of I/Os available in each I/O bank and possible limitations. Signal Name Sign. Pairs Differential Single- I/O Bank ended IO_B64_<...> In/Out In/Out 64 (HP) 4 signals are routed via level shifters (Refer to Section 2.9.2 for details) IO_B65_<...>...

  • Page 21: I/O Pin Exceptions - Perst

    MIO30/42 does not apply in this case). I/O Pins with Level Shifter There are four signals on the Mercury+ XU6 SoC module that are routed from the FPGA banks to the module connector via level shifters - these are presented in Table 7.

  • Page 22: Differential I/Os

    The information regarding the length of the signal lines from the MPSoC device to the module connector is available in Mercury+ XU6 SoC Module IO Net Length Excel Sheet [3]. This enables the user to match the total length of the differential pairs on the base board if required by the application.

  • Page 23: Vcc_Io Usage

    Details on connectivity in I/O banks having generic names (for example O or N) are presented in Section 2.9.4. For compatibility with other Enclustra Mercury modules, it is recommended to use a single I/O voltage per module connector.
  • Page 24 Use only VCC_IO voltages compliant with the equipped MPSoC device; any other voltages may dam- age the equipped MPSoC device, as well as other devices on the Mercury+ XU6 SoC module. Do not leave a VCC_IO pin floating, as this may damage the equipped MPSoC device, as well as other devices on the Mercury+ XU6 SoC module.

  • Page 25: Signal Terminations

    GPIOs; the suggested functions below are for reference only - always verify your MIO pinout with the Xilinx device handbook. Table 10 gives an overview over the MIO pin connections on the Mercury+ XU6 SoC module. Only the pins marked with “user functionality” are available on the module connector.

  • Page 26: Analog Inputs

    MIO Group Function Connection QSPI flash QSPI flash QSPI feedback clock Floating LED2#, LED3# On-board LEDs 9, 23 Unused 10-11 On-board I2C bus and module connector via level shifter I2C interrupt On-board I2C bus 13-22 eMMC flash eMMC flash 24-25 LED0#, LED1# On-board LEDs 26-29, 31-37...

  • Page 27: Multi-Gigabit Transceiver (Mgt)

    ZU4/ZU5 MPSoC devices. GTH Transceivers On modules equipped with ZU4/ZU5 there are 4 GTH MGTs available on the Mercury+ XU6 SoC module - Table 12 describes the connections. The naming convention for the GTH MGT I/Os is: MGT_B<BANK>_<FUNCTION>_<PACKAGE_PIN>_<POLARITY>.
  • Page 28 MGTs at high performance rates. Warning! No AC coupling capacitors are placed on the Mercury+ XU6 SoC module on the MGT lines - make sure capacitors are mounted, if required, on the base board (close to the module pins), to prevent MGT lines from being damaged.

  • Page 29: Power

    Power Generation Overview The Mercury+ XU6 SoC module uses a 5 - 15 V DC power input for generating the on-board supply voltages (0.72/0.85/0.9 V, 0.85/0.9 V, 0.9 V, 1.2 V, 1.8 V, 2.5 V, 3.3 V and 5.0 V). Some of these voltages (1.8 V, 2.5 V, 3.3 V) are accessible on the module connector.

  • Page 30: Voltage Supply Inputs

    In this case, VCC_IO needs to be switched off in the manner indicated in Figure 10. 2.11.3 Voltage Supply Inputs Table 15 describes the power supply inputs on the Mercury+ XU6 SoC module. The VCC voltages used as supplies for the I/O banks are described in Section 2.9.5. Pin Name Module Connector Pins...

  • Page 31: Voltage Supply Outputs

    For Mercury modules an Enclustra heat sink kit is available for purchase along with the product. It repre- sents an optimal solution to cool the Mercury+ XU6 SoC module - the heat sink body is low profile and usually covers the whole module surface. The kit comes with a gap pad for the MPSoC device, a fan and required mounting material to attach the heat sink to the module PCB and baseboard PCB.

  • Page 32: Voltage Monitoring

    TG-A6200-25-25-1 Table 17: Heat Sink Type An Enclustra heatsink for the Mercury+ XU6 SoC module covering the entire module surface is currently un- der development. Until this part is available, the ACC-HS3-Set heatsink kit may be used as an intermediate solution for prototyping purposes.

  • Page 33: Clock Generation

    2.12 Clock Generation A 33.33 MHz oscillator is used for the Mercury+ XU6 SoC module clock generation; the 33.33 MHz clock is fed to the PS. A 100 MHz LVDS oscillator and a 27 MHz CMOS oscillator provide reference clock inputs to the PS GTR bank 505.

  • Page 34: Leds

    2.14 LEDs There are four active-low user LEDs on the Mercury+ XU6 SoC module - all of them are connected to both PS and PL. It is recommended to drive the PL pin to a high impedance state before driving the PS pin and vice versa.

  • Page 35: Ddr4 Sdram Type

    Please check the user manual regularly for updates. Any parts with different speed bins or temperature ranges that fulfill the requirements for the module variant may be used. 2.15.2 Signal Description Please refer to the Mercury+ XU6 SoC Module FPGA Pinout Excel Sheet [4] for detailed information on the DDR4 SDRAM connections. 2.15.3 Termination Warning! No external termination is implemented for the data signals on the Mercury+ XU6 SoC module.

  • Page 36: Qspi Flash

    Table 25 describes the memory availability and configuration on the Mercury+ XU6 SoC module. As there is one QSPI flash chip equipped on the Mercury+ XU6 SoC module, type “single” must be selected when programming the flash from Vivado tools.

  • Page 37: Signal Description

    Table 25: QSPI Flash Type Warning! Other flash memory devices may be equipped in future revisions of the Mercury+ XU6 SoC module. Please check the user manual regularly for updates. Any parts with different speeds and temperature ranges that fulfill the requirements for the module variant may be used.

  • Page 38: Emmc Flash

    2.19 Gigabit Ethernet (PS) Two 10/100/1000 Mbit Ethernet PHYs are available on the Mercury+ XU6 SoC module, one connected to the PS via RGMII interface, and one connected to PL via RGMII. 2.19.1 Ethernet PHY Type Table 27 describes the equipped Ethernet PHY (PS) device type on the Mercury+ XU6 SoC module.

  • Page 39: Signal Description

    The interrupt output of the Ethernet PHY is connected to the I2C interrupt line, available on MIO12 pin. 2.19.3 External Connectivity The Ethernet signal lines can be connected directly to the magnetics. Please refer to the Enclustra Module Pin Connection Guidelines [10] for details regarding the connection of Ethernet signals. 2.19.4 MDIO Address The MDIO address assigned to the ETH PHY is 3, and the PHY can be configured via MIO pins 76-77.

  • Page 40: Rgmii Delays Configuration

    USB 2.0 Two USB 2.0 PHYs are available on the Mercury+ XU6 SoC module, both connected to the PS to I/O bank 502. USB PHY 0 can be configured as host or device, while USB PHY 1 can be used only as host.

  • Page 41: Usb 3.0

    USB 2.0 signals from the PHY, all routed to a USB 3.0 connector on the base board. Figure 11: USB 3.0 Implementation Example Warning! The USB 3.0 interface on the Mercury+ XU6 SoC module uses the GTR lines (MGTPS signals on module connector B), and not the USB_SSRX_P/N and USB_SSTX_P/N connections on module connector A. 2.22...

  • Page 42: Real-Time Clock (Rtc)

    (PMU) - more information on the PMU is available in the Zynq UltraScale+ MPSoC Technical Reference Manual [18]. The RTC crystal pad input and crystal pad output are connected on the Mercury+ XU6 SoC module to a 32.768 kHz oscillator.

  • Page 43: Device Configuration

    3 Device Configuration Configuration Signals The PS of the MPSoC needs to be configured before the FPGA logic can be used. Xilinx Zynq devices need special boot images to boot from QSPI flash, eMMC flash or SD card. For more information, please refer to the Zynq UltraScale+ MPSoC Technical Reference Manual [18].

  • Page 44: Pull-Up During Configuration

    All configuration signals except for BOOT_MODE must be high impedance as soon as the device is released from reset. Violating this rule may damage the equipped MPSoC device, as well as other devices on the Mercury+ XU6 SoC module. Pull-Up During Configuration The Pull-Up During Configuration signal (PUDC) is pulled to GND on the module;...

  • Page 45: Power-On Reset Delay Override

    Certain Xilinx tool versions support QSPI flash programming via JTAG only when JTAG boot mode is used (unavailable on the Mercury+ XU6 SoC module). Alternatively, the QSPI flash can be programmed in u-boot or Linux by the SPI controller in the PS or from an SPI external master.

  • Page 46: Jtag On Module Connector

    The VREF pin of the programmer must be connected to VCC_CFG_MIO. It is recommended to add 22 series termination resistors between the module and the JTAG header, close to the source. Please refer to the Enclustra Module Pin Connection Guidelines for details on JTAG interface. 3.5.3 JTAG Boot Mode...

  • Page 47: Emmc Boot Mode

    In the SD card boot mode the PS boots from the SD card located on the base board. There are two SD card boot modes available on the Mercury+ XU6 SoC module. Please note that the SD boot mode with level shifter is currently not supported.

  • Page 48: Qspi Flash Programming From An External Spi Master

    3.12 Enclustra Module Configuration Tool In combination with an Enclustra base board, the QSPI flash can be programmed using Enclustra Module Configuration Tool (MCT) [16]. For this method, a non-QSPI boot mode must be used during QSPI flash programming. The entire procedure is described in the reference design documentation.

  • Page 49: I2C Communication

    4 I2C Communication Overview The I2C bus on the Mercury+ XU6 SoC module is connected to the MPSoC device and to the EEPROM, and is available on the module and debug connectors. This allows external devices to read the module type and to connect more devices to the I2C bus.

  • Page 50: Secure Eeprom

    An example demonstrating how to read the module information from the EEPROM memory is included in the Mercury+ XU6 SoC module reference design. Warning! The secure EEPROM is for Enclustra use only. Any attempt to write data to the secure EEPROM causes the warranty to be rendered void. 4.4.1...
  • Page 51 Module Configuration Addr. Bits Comment Min. Value Max. Value Comment MPSoC type See MPSoC type table (Table 41) 0x08 MPSoC device speed grade Temperature range See temperature range table (Table 42) Power grade 0 (Normal) 1 (Low power) Gigabit Ethernet port count 0x09 Reserved DDR4 PS bandwidth...

  • Page 52: Mpsoc Device Types

    Value MPSoC Device Type XCZU2CG XCZU2EG XCZU3EG XCZU4CG XCZU4EV XCZU5EV Table 41: MPSoC Device Types Table 42 shows the available temperature ranges. Value Module Temperature Range Commercial Extended Industrial Table 42: Module Temperature Range Ethernet MAC Address The Ethernet MAC address is stored using big-endian byte order (MSB on the lowest address). Each module is assigned two sequential MAC addresses;...

  • Page 53: Operating Conditions

    5 Operating Conditions Absolute Maximum Ratings Table 43 indicates the absolute maximum ratings for Mercury+ XU6 SoC module. The values given are for reference only; for details please refer to the Zynq UltraScale+ MPSoC, DC and AC Switching Characteristics Datasheet [20].

  • Page 54: Recommended Operating Conditions

    Recommended Operating Conditions Table 44 indicates the recommended operating conditions for Mercury+ XU6 SoC module. The values given are for reference only; for details please refer to the Zynq UltraScale+ MPSoC, DC and AC Switching Characteristics Datasheet [20]. Symbol Description...
  • Page 55 6 Ordering and Support Ordering Please use the Enclustra online request/order form for ordering or requesting information: http://www.enclustra.com/en/order/ Support Please follow the instructions on the Enclustra online support site: http://www.enclustra.com/en/support/ D-0000-464-001 55 / 58 Version 02, 21.07.2021...
  • Page 56 List of Figures Hardware Block Diagram ........Product Model Fields .
  • Page 57 I2C Signal Description ......... . 49 I2C Addresses .
  • Page 58 [1] Enclustra General Business Conditions http://www.enclustra.com/en/products/gbc/ [2] Mercury+ XU6 SoC Module Reference Design https://github.com/enclustra [3] Mercury+ XU6 SoC Module IO Net Length Excel Sheet Ask Enclustra for details [4] Mercury+ XU6 SoC Module FPGA Pinout Excel Sheet Ask Enclustra for details...

This manual is also suitable for:

Me-xu6
