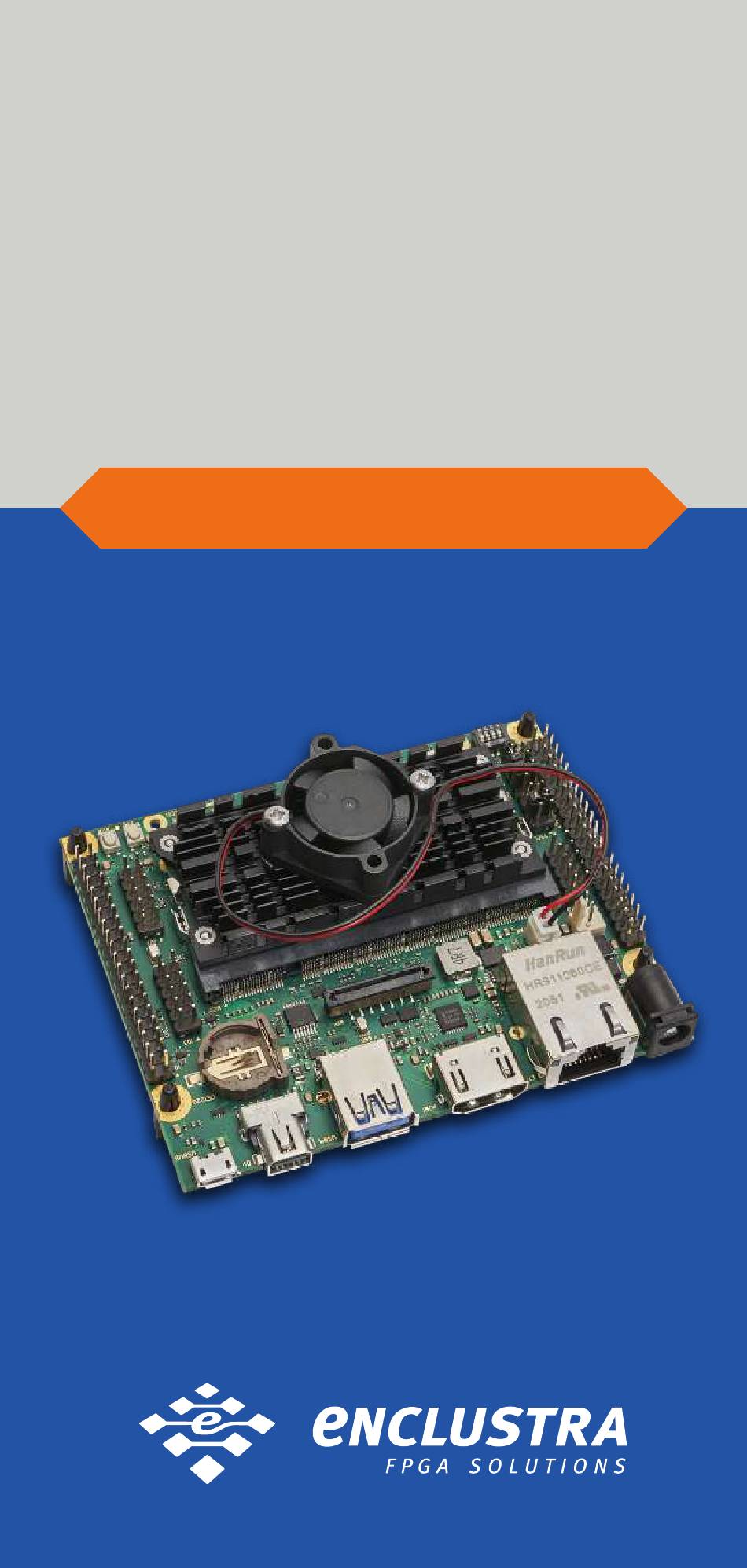

- Page 1 MARS XU3 Design-In Kit Quick Start Guide...
-
Page 2: What's In The Box

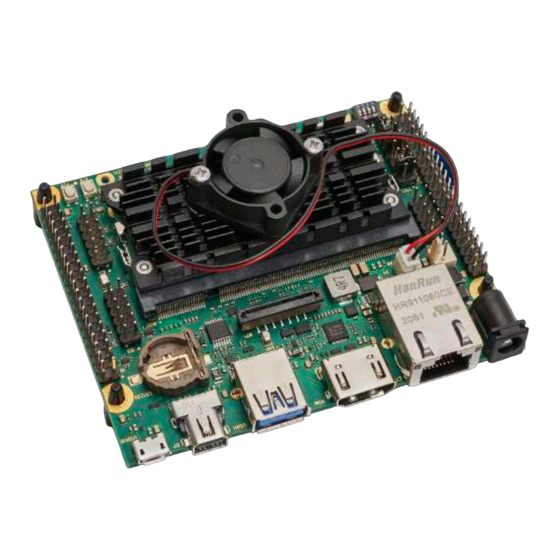

What’s in the Box – Mars XU3 module – MiniDP to DP cable – Mars ST3 – Micro SD card base board – Example designs: – USB camera AI face detection and – Heatsink image classification – Fan based on ResNet50 –... - Page 3 The Design-In Kit Mars XU3 System-on-Module (SOM) Bottom view view Mars ST3 Base Board...
-
Page 4: Set Up The Hardware
Set up the Hardware Mount the module the fan and the heatsink to the base board Air Flow Screw M2.5 x 14 Nut M2.5 Thermal Pad Screw M2 Connect the Base Board 1. Insert module first. 2. Follow the steps in the order indicated in the image below. - Page 5 Run the Demos Preparation: – Prepare and connect the board according to the hardware setup instructions (see «Set up the Hardware»). – Open a terminal program on your computer (e.g. Tera Term) and open a serial port connection using the COM port labeled with the higher number from the two newly detected ports.
- Page 6 Enclustra GmbH Räffelstrasse 28 8045 Zürich Switzerland +41 43 343 39 43 info@enclustra.com www.enclustra.com...
