Technical data

15 Technical data

15.1 Device data

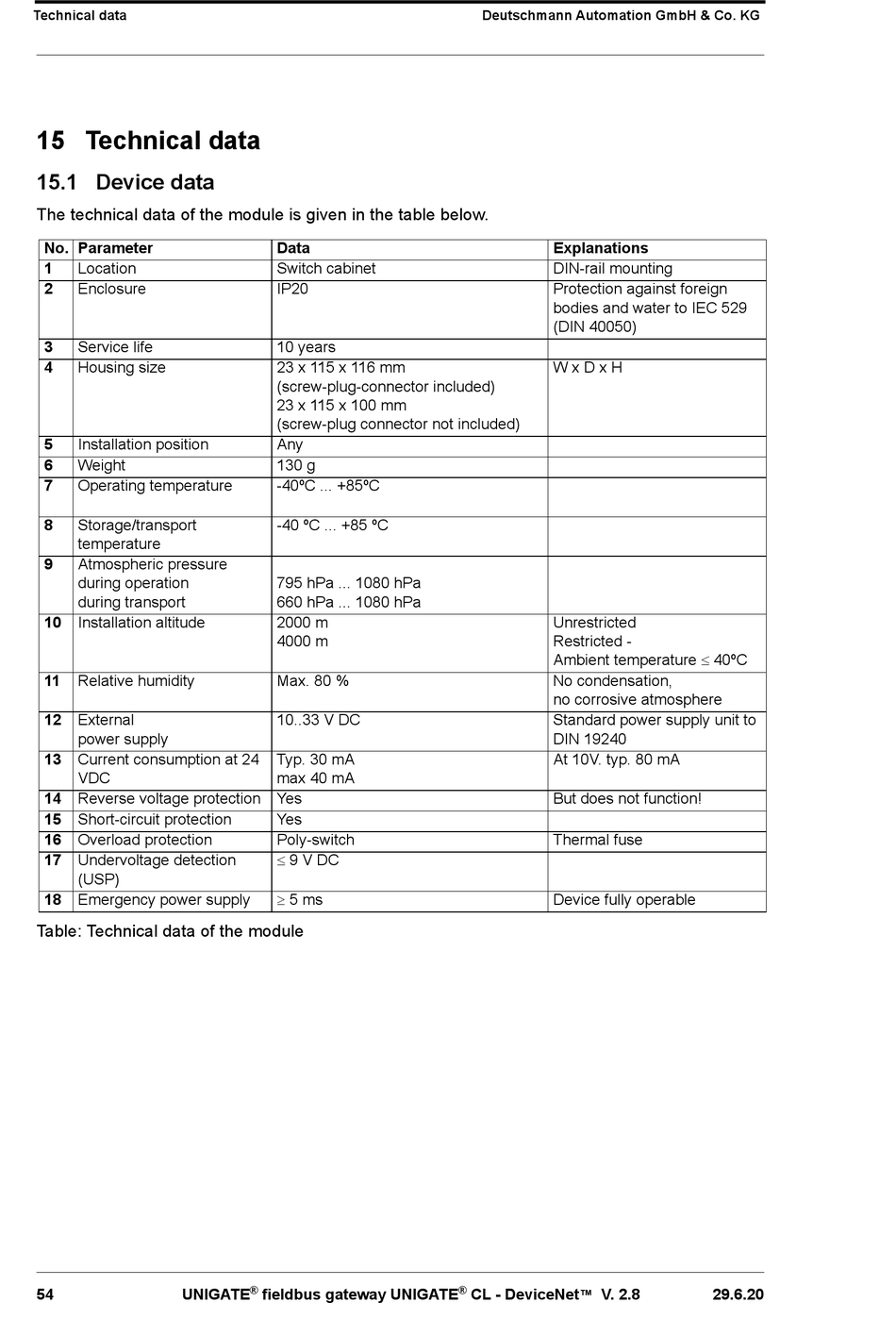

The technical data of the module is given in the table below.
No. Parameter
1 Location
2 Enclosure
3 Service life
4 Housing size
5 Installation position
6 Weight
7 Operating temperature
Storage/transport 
8
temperature
9 Atmospheric pressure
during operation
during transport
10 Installation altitude
11 Relative humidity
12 External
power supply
13 Current consumption at 24
VDC
14 Reverse voltage protection Yes
15 Short-circuit protection
16 Overload protection
17 Undervoltage detection
(USP)
18 Emergency power supply
Table: Technical data of the module
54 UNIGATE
Data
Switch cabinet
IP20
10 years
23 x 115 x 116 mm 
(screw-plug-connector included)
23 x 115 x 100 mm 
(screw-plug connector not included)
Any
130 g
-40ºC ... +85ºC 
-40 ºC ... +85 ºC

795 hPa ... 1080 hPa
660 hPa ... 1080 hPa
2000 m
4000 m
Max. 80 %
10..33 V DC
Typ. 30 mA
max 40 mA
Yes
Poly-switch
 9 V DC
 5 ms
®
