Note: The switch position "DD" (ie, S4 and S5 in position "D") is reserved for internal purposes.

11.4.3 Termination (DeviceNet)

If the Gateway is operated as the first or last physical device in the DeviceNet, there must be a
bus termination at this Gateway. In order to do this, either a bus terminating resistor must be acti-
vated in the connector or the resistor (220 ) integrated in the Gateway must be activated. In
order to do this, slide the slide switch to position ON. In all other cases, the slide switch must
remain in position OFF. Please refer to the general Fieldbus literature for further information on
the subject of bus termination.

11.4.4 DIP-switch

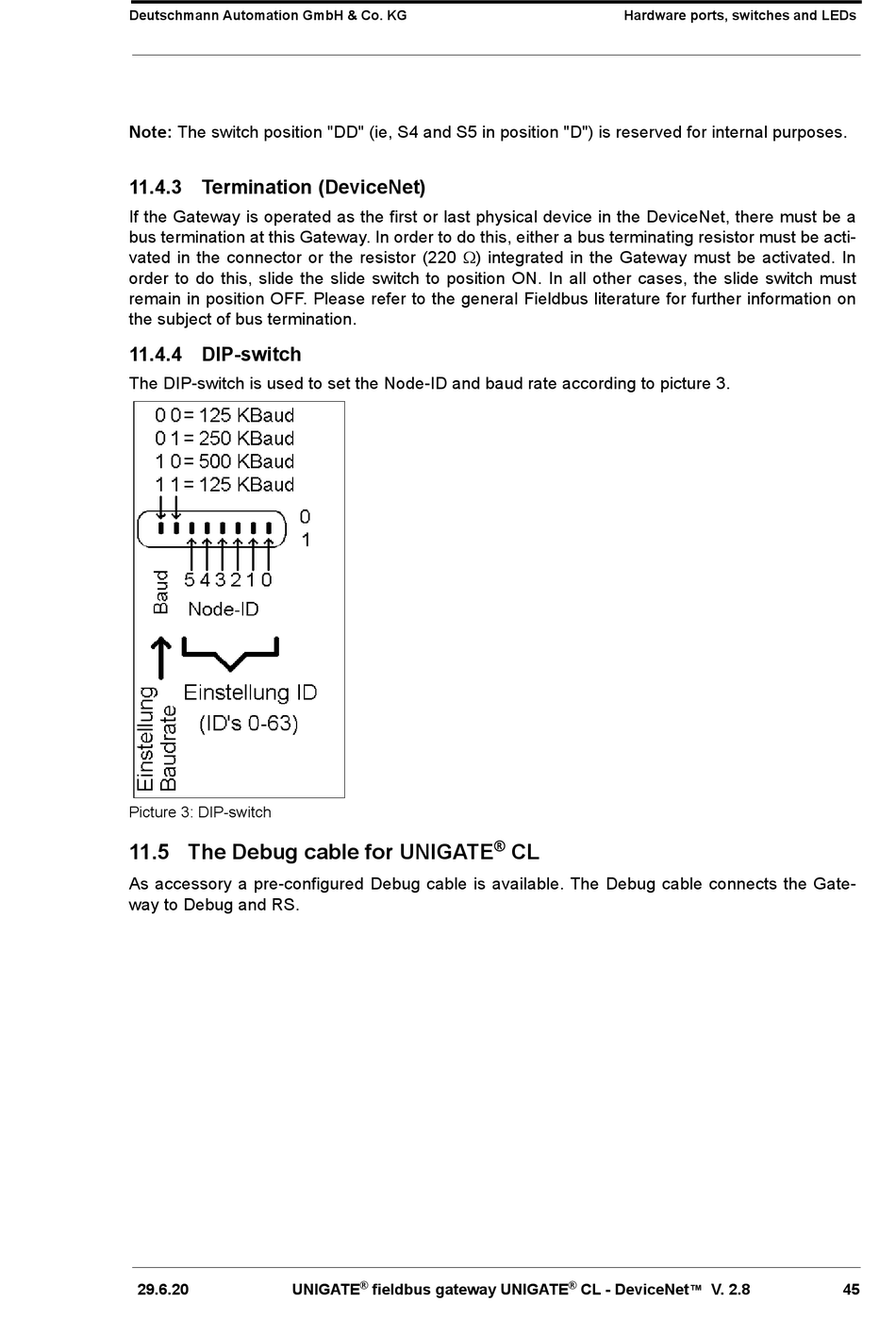

The DIP-switch is used to set the Node-ID and baud rate according to picture 3.
Picture 3: DIP-switch
®
11.5 The Debug cable for UNIGATE CL
As accessory a pre-configured Debug cable is available. The Debug cable connects the Gate-
way to Debug and RS.
® ®
