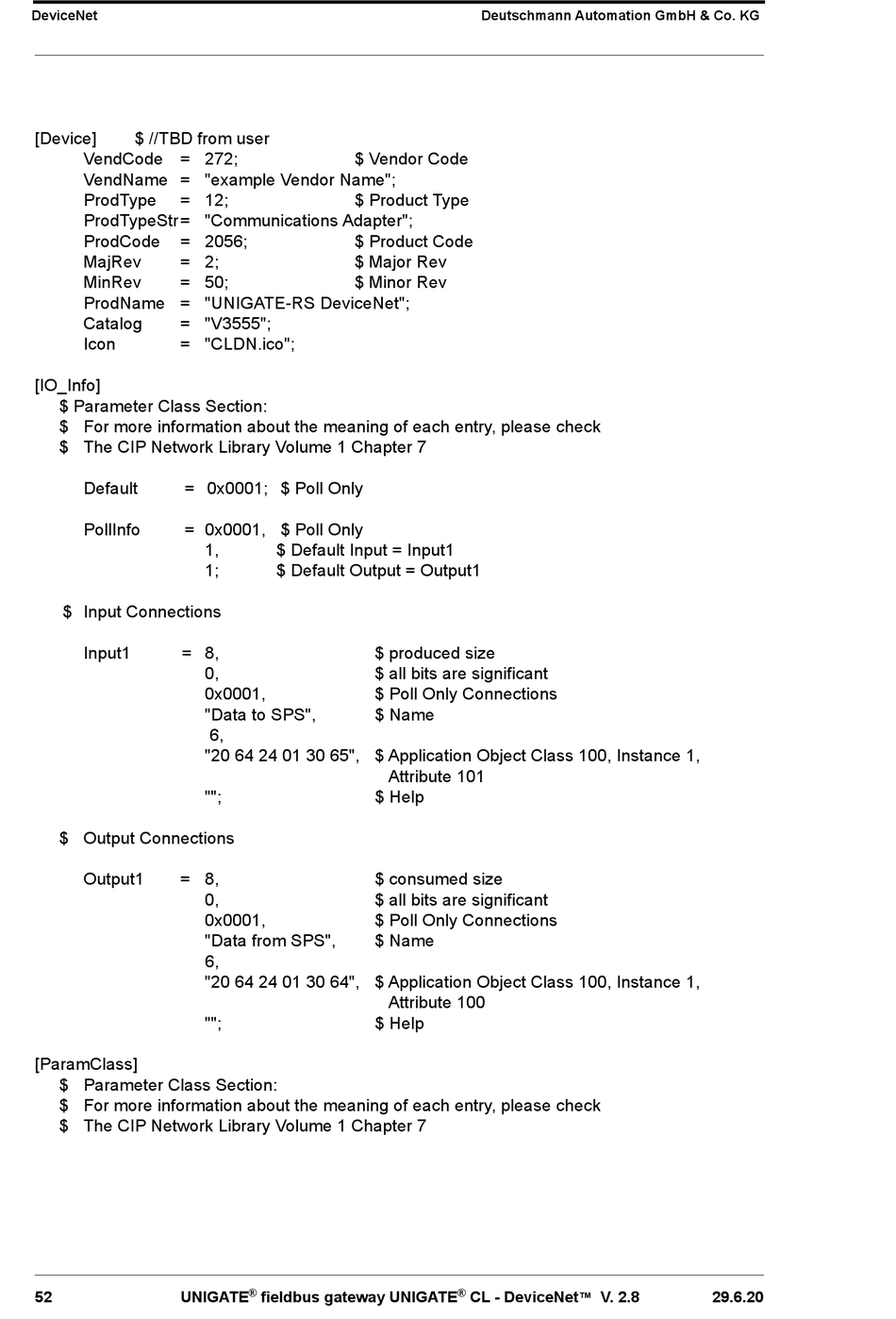

DeviceNet
[Device] $ //TBD from user
VendCode = 272;
VendName = "example Vendor Name";
ProdType = 12;
ProdTypeStr = "Communications Adapter";
ProdCode = 2056;
MajRev = 2;
MinRev = 50;
ProdName = "UNIGATE-RS DeviceNet";
Catalog = "V3555";
Icon = "CLDN.ico";
[IO_Info]
$ Parameter Class Section:
$ For more information about the meaning of each entry, please check
$ The CIP Network Library Volume 1 Chapter 7
Default = 0x0001; $ Poll Only
PollInfo = 0x0001, $ Poll Only
$ Input Connections
Input1 = 8,
$ Output Connections
Output1 = 8,
[ParamClass]
$ Parameter Class Section:
$ For more information about the meaning of each entry, please check
$ The CIP Network Library Volume 1 Chapter 7
52 UNIGATE
$ Vendor Code
$ Product Type
$ Product Code
$ Major Rev
$ Minor Rev
1, $ Default Input = Input1
1; $ Default Output = Output1
0,
0x0001,
"Data to SPS",
6,
"20 64 24 01 30 65", $ Application Object Class 100, Instance 1, 
"";
0,
0x0001,
"Data from SPS",
6,
"20 64 24 01 30 64", $ Application Object Class 100, Instance 1,
"";
®
