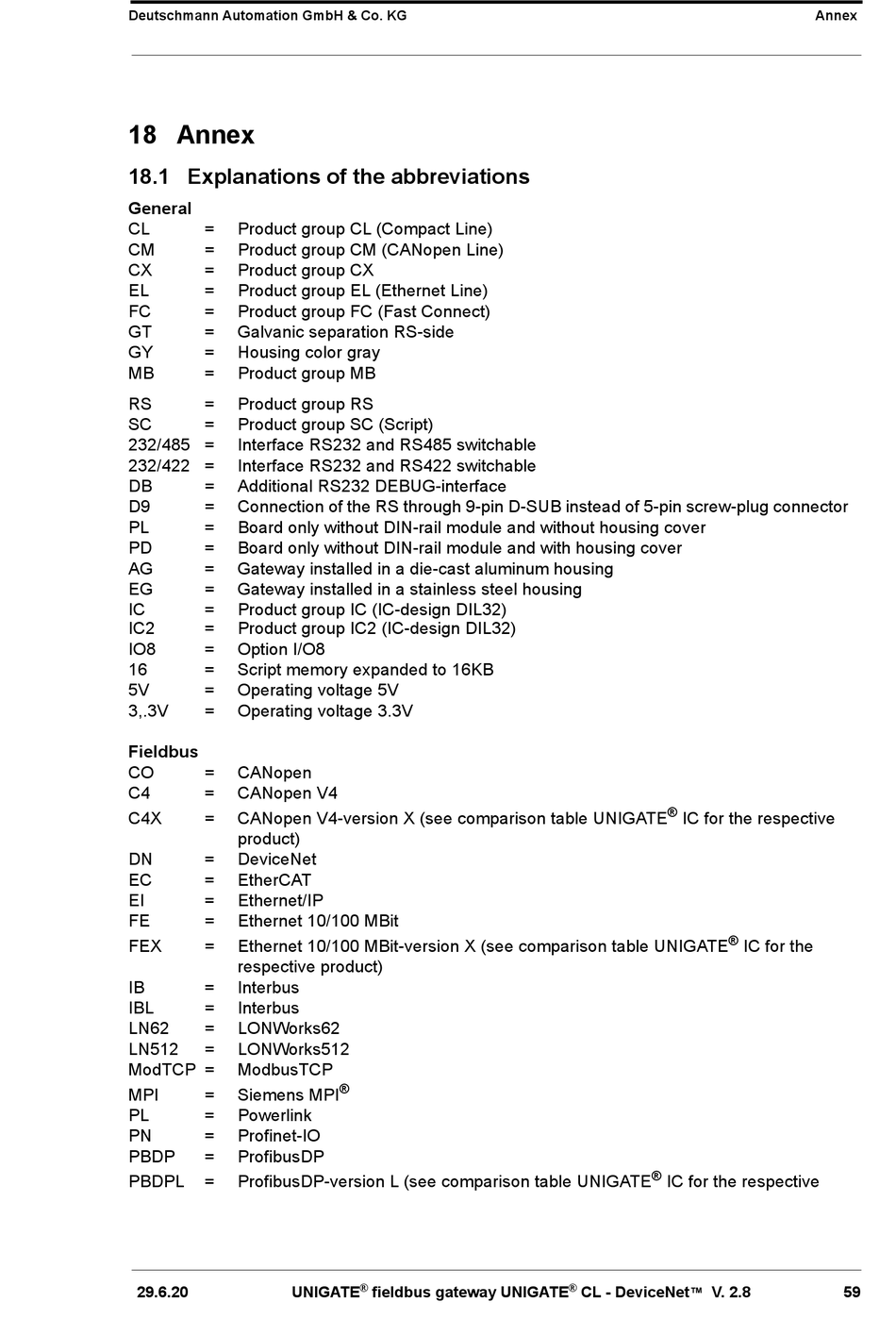

18 Annex
18.1 Explanations of the abbreviations
General
CL
=
Product group CL (Compact Line)
CM
=
Product group CM (CANopen Line)
CX
=
Product group CX
EL
=
Product group EL (Ethernet Line)
FC
=
Product group FC (Fast Connect)
GT
=
Galvanic separation RS-side
GY
=
Housing color gray
MB
=
Product group MB
RS
=
Product group RS
SC
=
Product group SC (Script)
232/485 =
Interface RS232 and RS485 switchable
232/422 =
Interface RS232 and RS422 switchable
DB
=
Additional RS232 DEBUG-interface
D9
=
Connection of the RS through 9-pin D-SUB instead of 5-pin screw-plug connector
PL
=
Board only without DIN-rail module and without housing cover
PD
=
Board only without DIN-rail module and with housing cover
AG
=
Gateway installed in a die-cast aluminum housing
EG
=
Gateway installed in a stainless steel housing
IC
=
Product group IC (IC-design DIL32)
IC2
=
Product group IC2 (IC-design DIL32)
IO8
=
Option I/O8
16
=
Script memory expanded to 16KB
5V
=
Operating voltage 5V
3,.3V
=
Operating voltage 3.3V
Fieldbus
CO
=
CANopen
C4
=
CANopen V4
C4X
=
CANopen V4-version X (see comparison table UNIGATE
product)
DN
=
DeviceNet
EC
=
EtherCAT
EI
=
Ethernet/IP
FE
=
Ethernet 10/100 MBit
FEX
=
Ethernet 10/100 MBit-version X (see comparison table UNIGATE
respective product)
IB
=
Interbus
IBL
=
Interbus
LN62
=
LONWorks62
LN512
=
LONWorks512
ModTCP =
ModbusTCP
MPI
=
Siemens MPI
PL
=
Powerlink
PN
=
Profinet-IO
PBDP
=
ProfibusDP
PBDPL
=
ProfibusDP-version L (see comparison table UNIGATE
29.6.20
UNIGATE
®
®
fieldbus gateway UNIGATE
®
IC for the respective
®
®
IC for the respective
®
CL - DeviceNet
V. 2.8
™
Annex
IC for the
59
