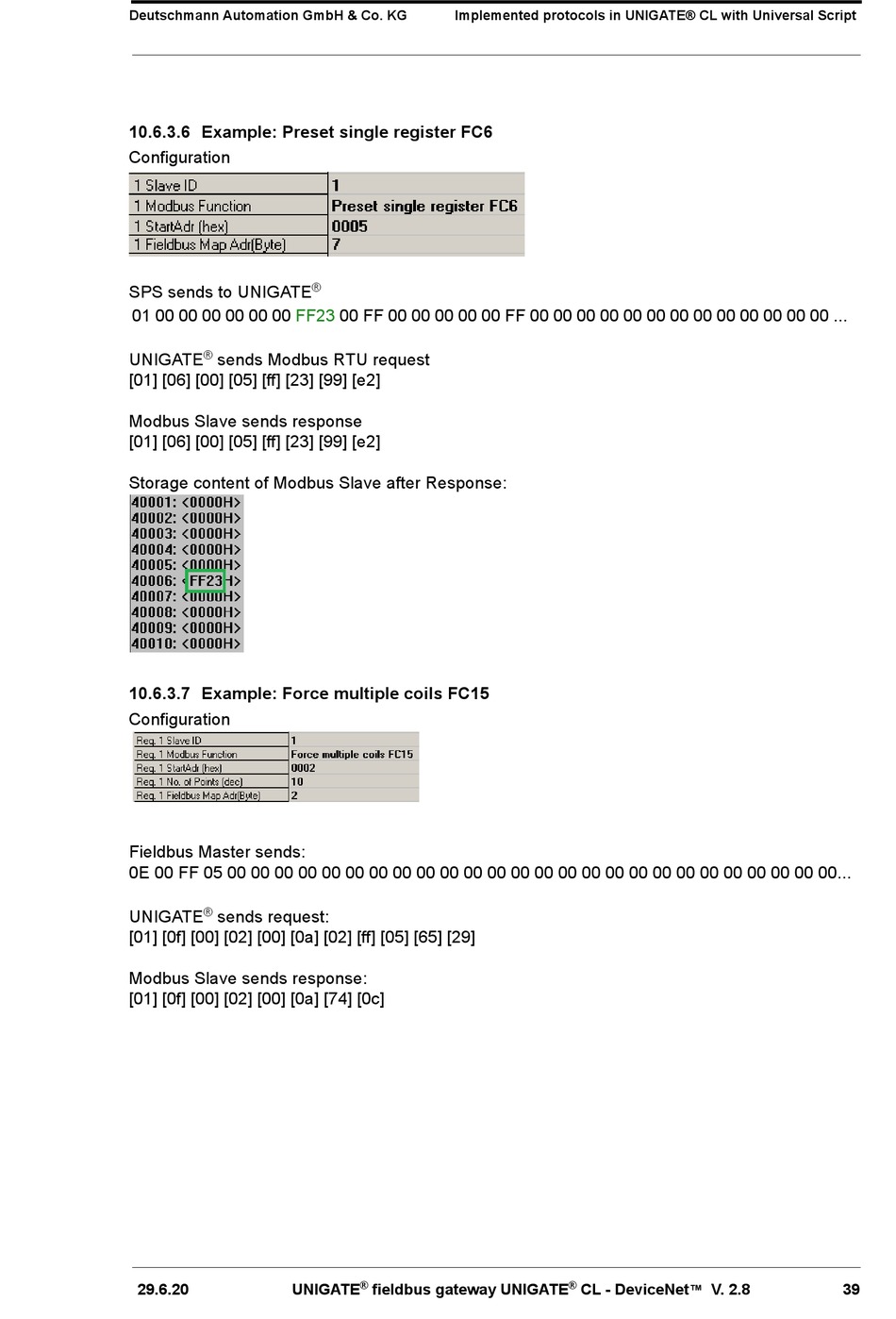

DEUTSCHMANN AUTOMATION UNIGATE CL - DeviceNet Instruction Manual page 39

Deutschmann Automation GmbH & Co. KG
10.6.3.6 Example: Preset single register FC6
Configuration
SPS sends to UNIGATE
01 00 00 00 00 00 00 FF23
®
UNIGATE sends Modbus RTU request
[01] [06] [00] [05] [ff] [23] [99] [e2] 
Modbus Slave sends response
[01] [06] [00] [05] [ff] [23] [99] [e2] 

Storage content of Modbus Slave after Response:
10.6.3.7 Example: Force multiple coils FC15
Configuration
Fieldbus Master sends:
0E 00 FF 05 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00...
®
UNIGATE sends request:
[01] [0f] [00] [02] [00] [0a] [02] [ff] [05] [65] [29]
Modbus Slave sends response:
[01] [0f] [00] [02] [00] [0a] [74] [0c]
29.6.20 UNIGATE
Implemented protocols in UNIGATE® CL with Universal Script
®
00 FF 00 00 00 00 00 FF 00 00 00 00 00 00 00 00 00 00 00 00 00 ... 
®
