USING THE MEDIA CONNECTOR

The Media Connector can be used as the primary volume control for the audio sources
you've connected.

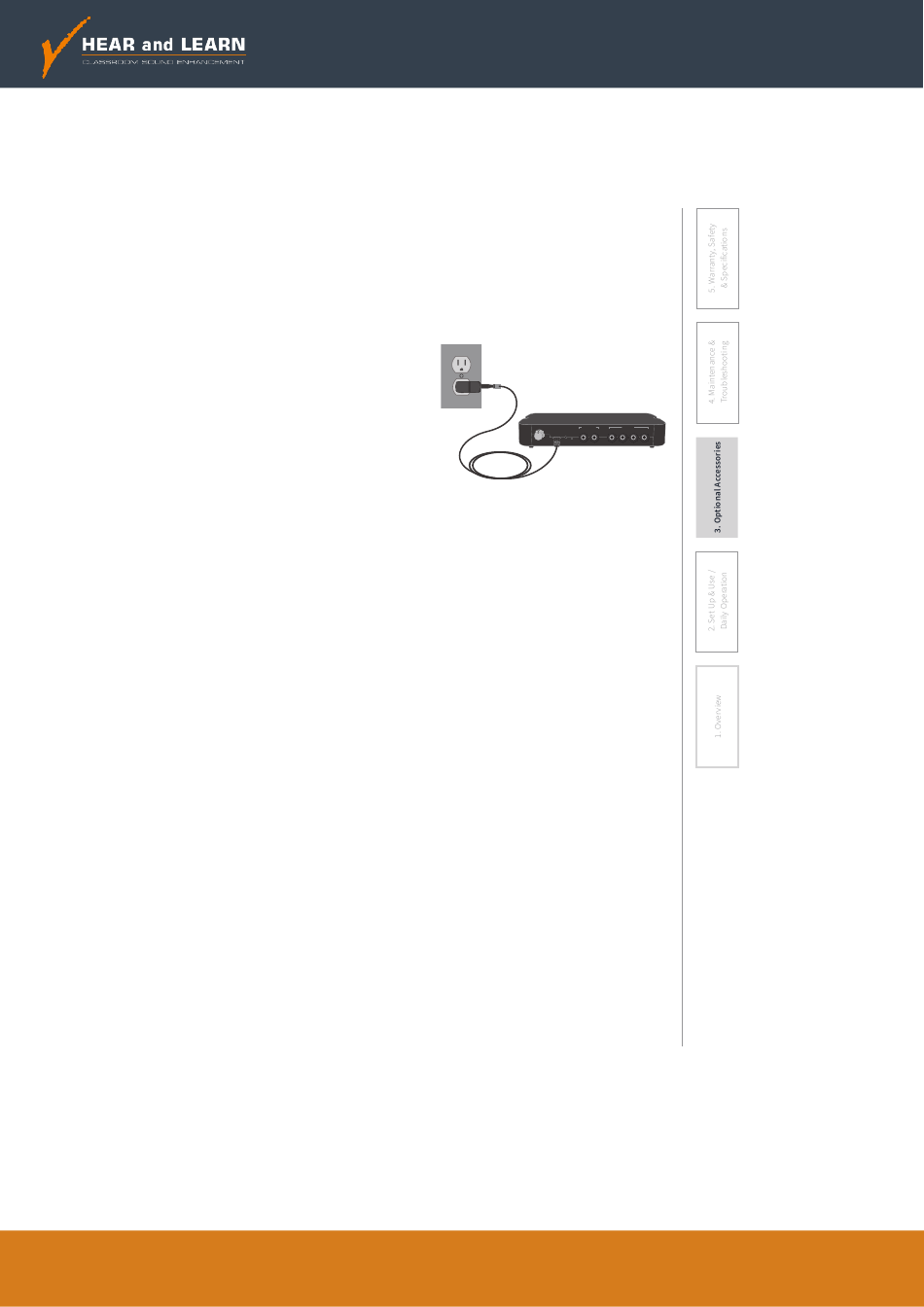

1. Plug the micro USB end of the power cable into the USB port on the back of the
Media Connector. Plug the other end of
the cable into the USB power adaptor.
Also, the USB cable could be plugged
into a computer for power.
2. Connect the audio source(s) to the
Media Connector using the 3.5mm
cables provided.
3. Set the audio source volume to provide
sound through the Redcat.
4. Use the AUDIO IN volume control on the
front of the Media Connector to increase
or decrease the audio source sound level.
NOTE: When Media Connector is powered on and registered to Redcat, only its microphone
volume and tone controls are operational while those on the Redcat are not.
NORMALIZING AUDIO SOURCE VOLUME LEVELS
Use the Media Connector as the master audio volume control for the classroom. When
two or more audio sources are connected, you will need to normalize volume settings
by setting all connected audio sources to the same sound level while leaving the Media
Connector AUDIO IN volume control set to its center setting. The Media Connector is an
audio mixer using a master volume control to adjust the volume of all audio sources at
once. Use the following procedure to set audio source volumes:
1. Connect the multimedia audio sources to the Media Connector using the 3.5mm
cables provided.
2. Set the AUDIO IN volume control on the Media Connector to its center position.
3. Turn on an audio source that does not have an accessible audio level control. (DVD,
VCR player)
4. Adjust the Media Connector AUDIO IN volume control so the audio level playing
through the speaker is appropriate for the classroom.
5. Turn off the first audio source.
6. Turn on the second audio source. Use its volume control to balance the audio output
to the same audio level played through the speaker as the first source.
7. Repeat steps 5 and 6 for the remaining audio sources.
8. Now, the Media Connector's AUDIO IN volume can be used to increase or decrease
the volume level for all audio sources as desired.
