ACTIVATE STATION: OUTPUT TO ASSISTIVE
LISTENING DEVICE (ALD)
1. Turn the Audio Out volume control
on the Activate front panel all the way
down.
2. Determine the size and type of audio
input jack on the device as many
manufacturers' products
differ in connector size and shape.
Most personal FM transmitters
require a 3.5mm to 3.5mm patch
cable (part# MSC3535).

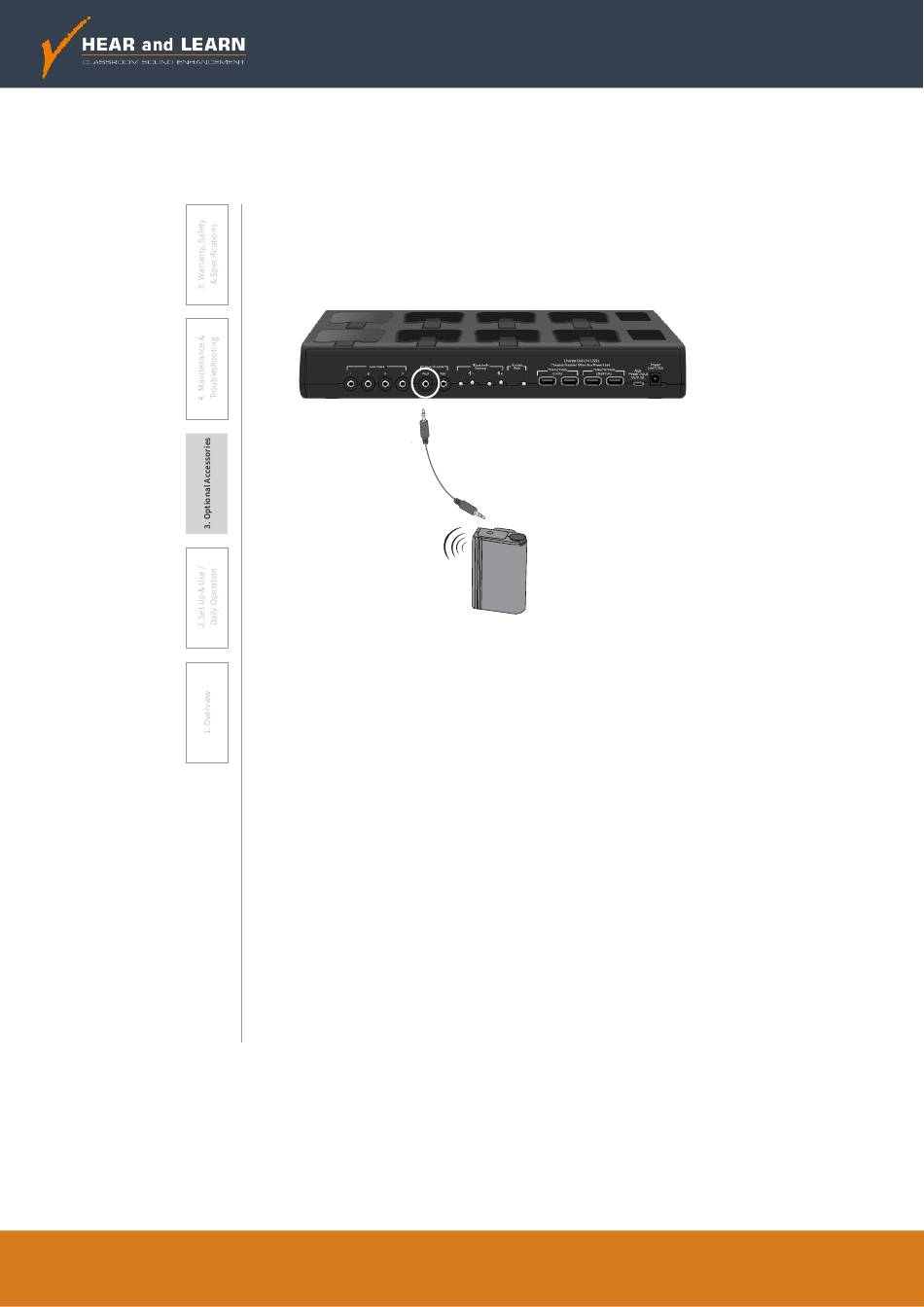

3. Connect a patch cable from the ALD's
microphone jack or AUX input to the
3.5mm audio jack labeled "ALD" on
the back of the Activate.
34
Redcat Access is part of the
Offices Australia wide (03)93709355
ALD Transmitter
4. With the Redcat and ALD turned on,
speak into the Flexmike and slowly
adjust the AUDIO OUT volume control
on the Activate until the appropriate
audio level is attained in the ALD
receiver's headphones.
5. It may be necessary to adjust the
volume on the Personal FM receiver
to achieve appropriate volume level.
